Visaton DSM 25 FFL

€61.24 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-1153
Visaton DSM 25 FFL   25 mm (1") High-End titanium dome driver for the highrange... more
Product information "Visaton DSM 25 FFL"

Visaton DSM 25 FFL

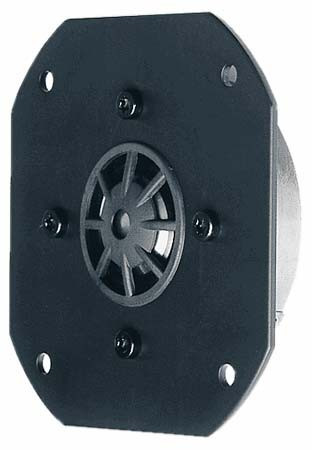

25 mm (1") High-End titanium dome driver for the highrange above 2000 Hz. Due to the enormously strong and ultra-light titanium dome and in conjunction with a highly damped sypronyle surround, linear frequency response and no partial oscillations. Due to the enormously high magnetic flux in the ferrofluid-filled air-gap high efficiency and high power handling are possible.



Specifications

  • power handling (continuous/programme) = 120/180 W

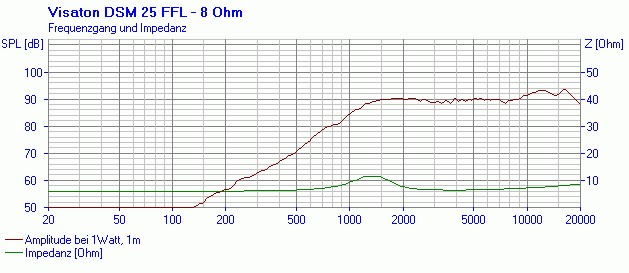

  • frequency range = 1000-30000 Hz
  • resonance frequency fs = 1900 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • voice coil diameter = 50 mm

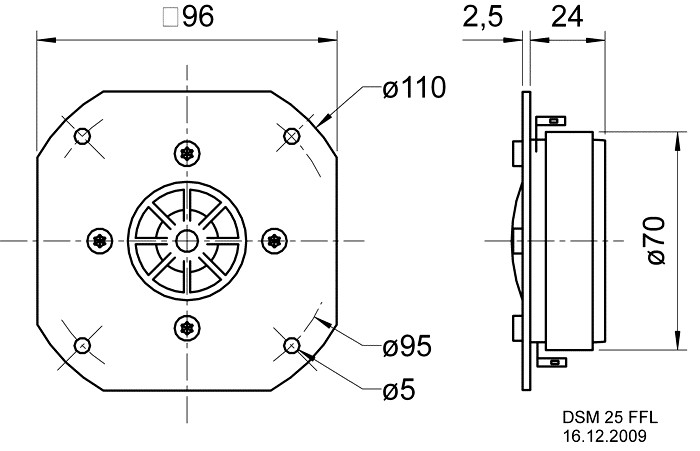

  • mounting diameter d = 80 mm
  • overall diameter d = 110 mm
  • mounting depth (not countersunk) t = 24 mm
