Mundorf AMT23CM1.1-R

€369.90 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • mu-amt23cm1.1-r
Mundorf AMT23CM1.1-R Airmotion Tweeter   High End AMT for 2-way systems. With its... more
Product information "Mundorf AMT23CM1.1-R"

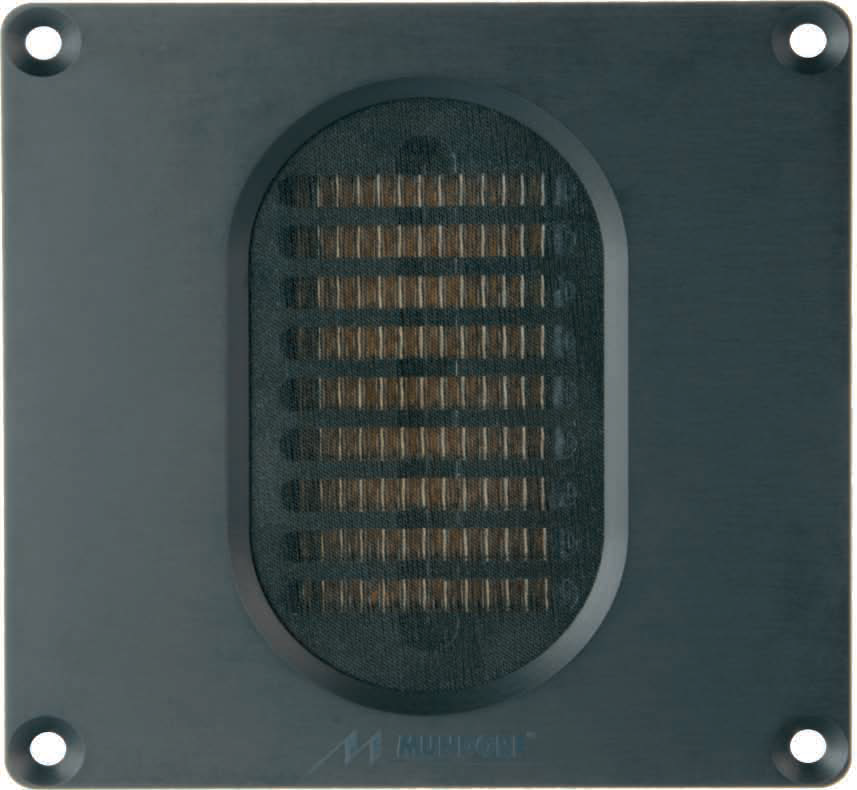

Mundorf AMT23CM1.1-R Airmotion Tweeter



High End AMT for 2-way systems. With its efficiency of 90dB this AMT needs almost no level adjustment. Its high SPLmax meets the highest requirements.

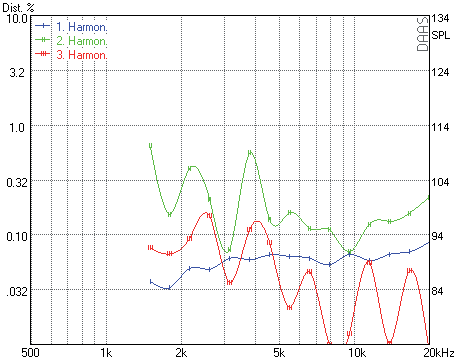

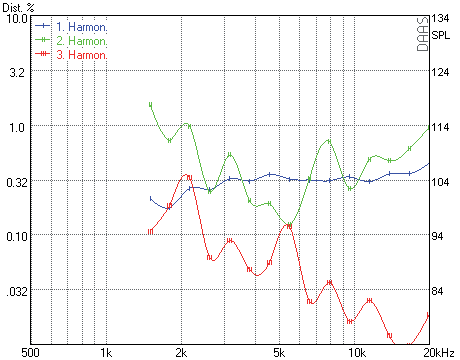

  • Very low distortion

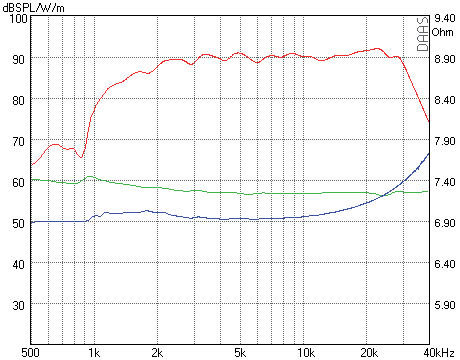

  • Very flat impedance curve
  • Wide spread directivity
  • Low x-over frequency



Specifications

  • power handling (continuous/programme) = 125 W
  • frequency range = 950-35000 Hz
  • resonance frequency fs = 1700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,9 Ohm
  • effective piston radiating area Sd = 175,5 cm2

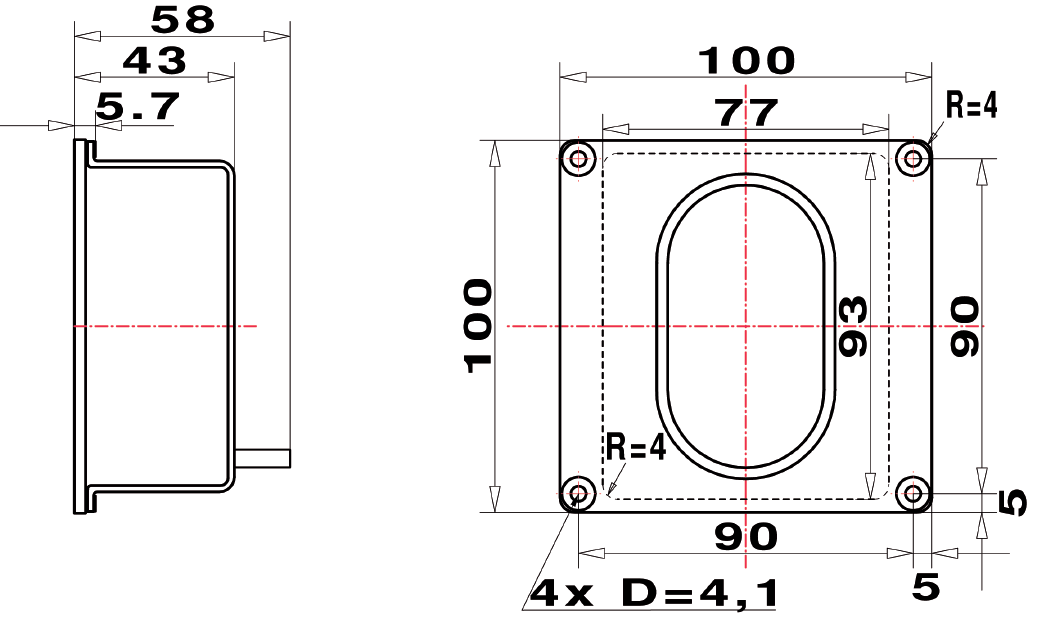

  • overall diameter d = 100x100 mm
