Mundorf AMT 23D6.1-R This dipole is optimized for installation in a baffle. With a... more

Product information "Mundorf AMT23D6.1-R"

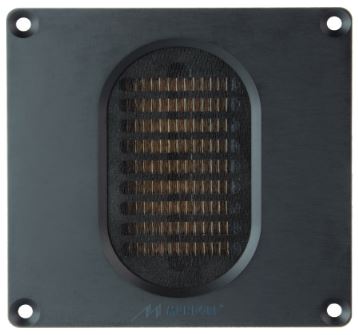

Mundorf AMT 23D6.1-R

This dipole is optimized for installation in a baffle. With a resonance linearization network a crossover frequency of 2 kHz is possible. The efficiency fits most mid0range drivers.

Very low distortion
Very flat impedance curve
Wide spread directivity
Low x-over frequency
Swing-out behaviour optimized for dipole use

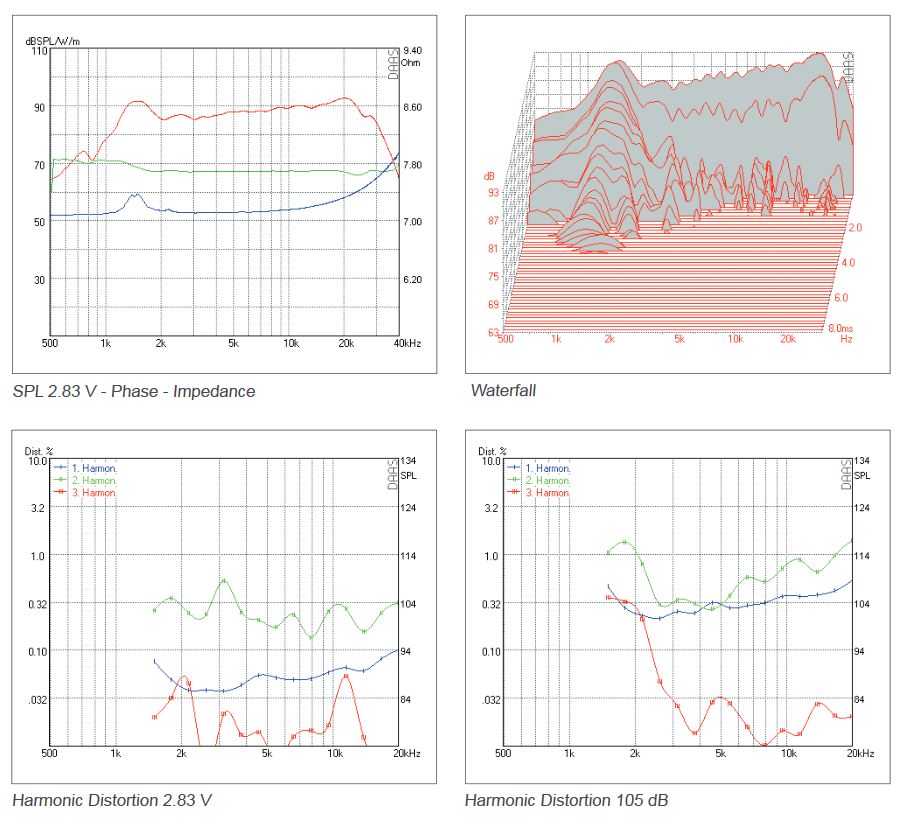

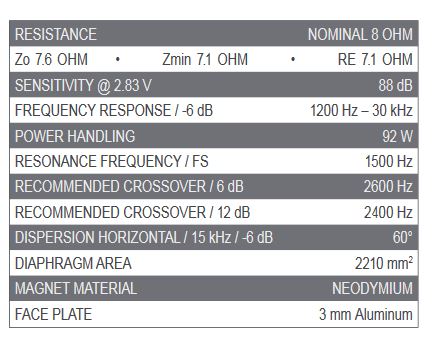

Specifications

power handling (continuous/programme) = 92 W
frequency range = 1200-30000 Hz
resonance frequency fs = 1500 Hz
impedance R = 8 Ohm
sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 6,9 Ohm
effective piston radiating area Sd = 221 cm²

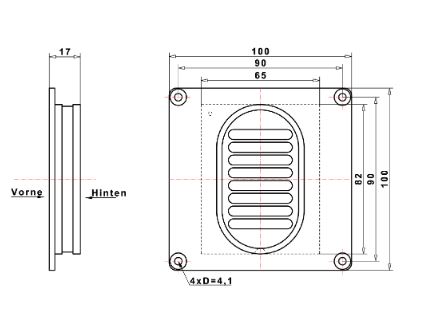

overall diameter d = 100x100 mm
