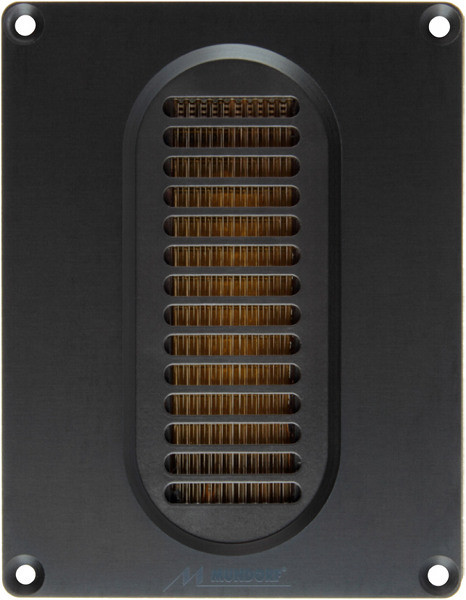

Mundorf AMT25D6.1-R

Mundorf AMT 25D6.1-R

This dipole is optimized for installation in a baffle. With a resonance linearization network a crossover frequency of 2kHz is possible. With a sensitivity of 93dB this AMT is very suitable for tube friends

• Very low distortion
• Very flat impedance curve
• Swing-out behaviour optimized for dipole use
• High sensitivity

Specifications

• power handling (continuous/programme) = 135 W
• frequency range = 1100-30000 Hz
• resonance frequency fs = 1400 Hz
• impedance R = 6 Ohm
• sound pressure level SPL = 93 dB (2,83V; 1m)
• DC resistance Re = 5,6 Ohm
• effective piston radiating area Sd = 646,4 cm²
• overall diameter d = 150mm
