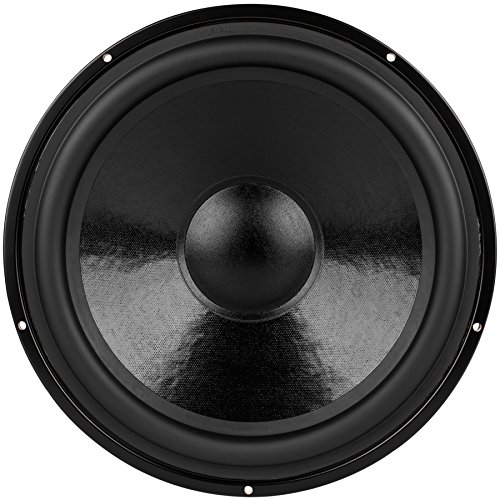

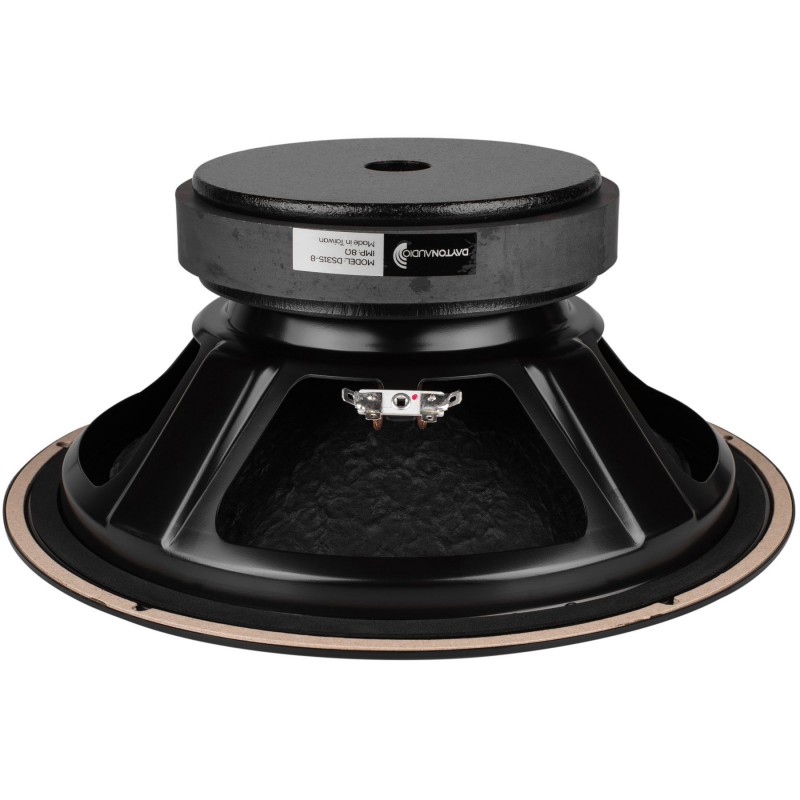

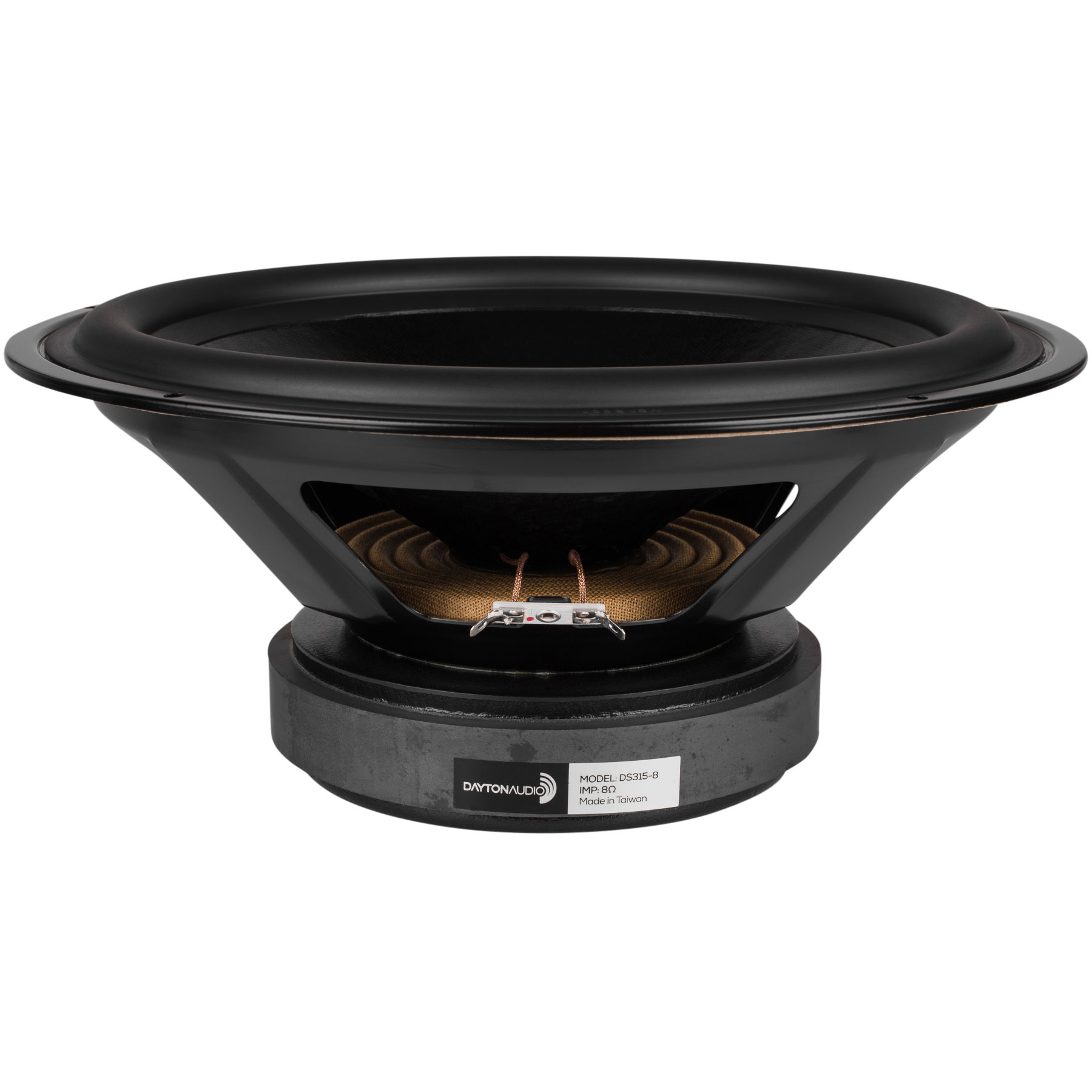

Dayton Audio DS315-8

€127.75 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-ds315-8
The Designer Series by Dayton Audio was developed specifically with the speaker designer in... more
Product information "Dayton Audio DS315-8"

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.



Product Highlights

• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required
• Coated paper cone, half roll rubber surround for durability and accurate reproduction
• Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
• Smooth frequency response and linear roll-off simplify filter design, guaranteeing good result



Specifications

Impedance
8 ohms

Re
6.1 ohms

Le
1.43 mH @ 1 kHz

Fs
24.2 Hz

Qms
1.79

Qes
0.37

Qts
0.31

Mms
97.4g

Cms
0.44 mm/N

Sd
506.7 cm²

Vd
276.7 cm³

BL
15.6 Tm

Vas
159 liters

Xmax
5.5 mm

VC Diameter
49.5 mm

SPL
91 dB @ 2.83V/1m

RMS Power Handling
120 watts

Usable Frequency Range (Hz)
25 - 2,500 Hz
