Hypex FusionAmp FA253

€652.00 *

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • SW10701
FusionAmp FA253   This FusionAmp can be the basis of e.g. a powerful two- or three-way... more
Product information "Hypex FusionAmp FA253"

FusionAmp FA253


This FusionAmp can be the basis of e.g. a powerful two- or three-way monitor.

The FA253 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier. Additionaly, a 100 Wrms Ncore® tweeter channel is added.

Dimensions: 360 * 135 x 55 mm

Weight: 1145 gram



  • Analogue balanced XLR in and through
  • Analogue unbalanced RCA input
  • Digital AES in and through
  • Digital S/PDIF in and through
  • Digital Optical TosLink input
  • USB 2.0 configuration interface


  • 15 biquads per amplifier
  • Three selectable presets for filters
  • Source selection
  • Signal detect
  • Auto shutdown
  • BTL capable
  • Clip protect
  • Thermal protect
  • Filter protection

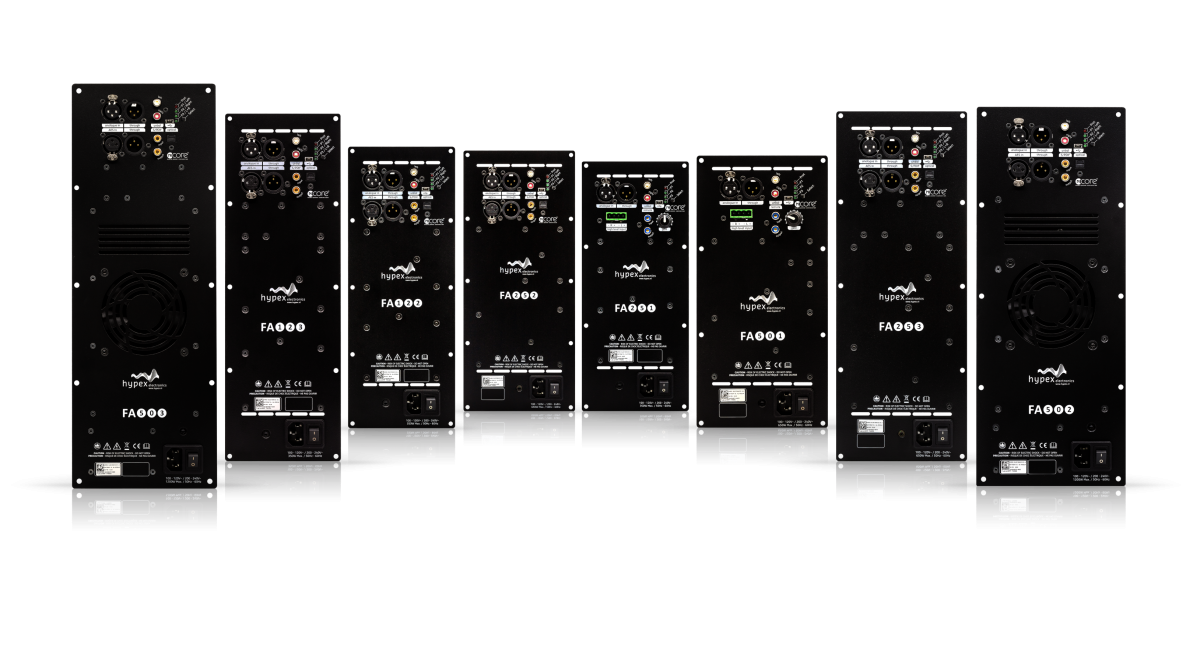

Meet the family

The Fusion Amp family consists of the following models:

FusionAmp One-Way models:
FA251, 1x250W
FA501, 1x500W

FusionAmp Two-Way models:
FA122, 2x125W
FA252, 2x250W
FA502, 2x500W

FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter

What is included in the box:


  • The FA253
  • A printed copy of the user guide
  • Speaker connection cables




Power (4Ω) 2x 250Wrms + 1x 100Wrms
Power (8Ω) 2x 200Wrms + 1x 100Wrms
Channels 1 channel / 3 way
Mains voltage input 100-120Vac / 200-240Vac ±10%
Dimensions mm 360*135*55mm
Weight 1145gr
