The Mark Audio wide band drivers MAOP (Micro Arc Oxidation Process or Plasma Electrolytic Oxidization) have been made in extremely small production runs and are extremely collectable by the local customers.
Highlights
Every pair is matched
Micro Arc Oxidation Process
Crystalline oxide cone
Wide band driver
Product details

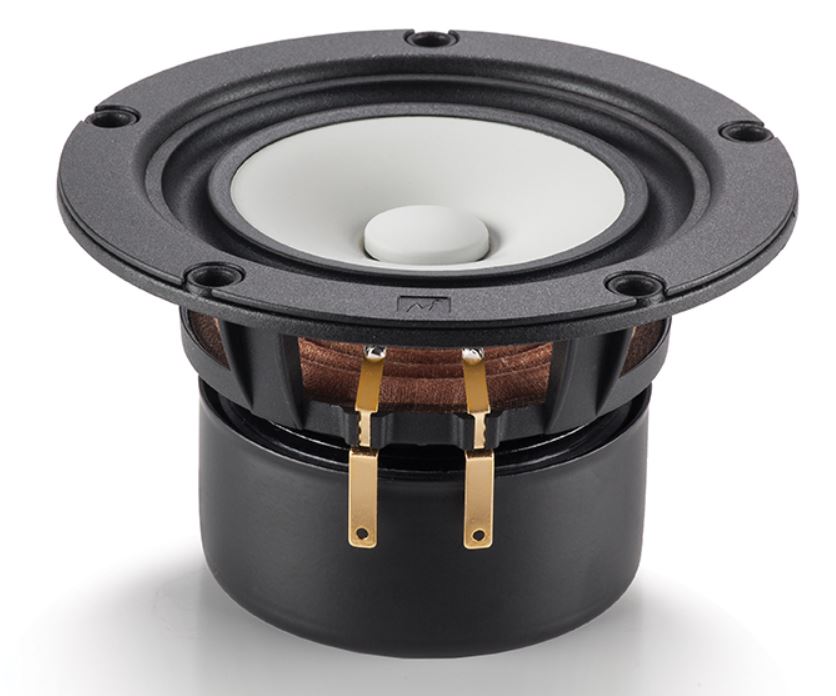

Markaudio MAOP-7.2 White 4" Full Range Woofer | Each two drivers are sold as a matched pair.
The uniqueness of Markaudio lays on their matching pairs of drivers. Each driver is tested and paired with another driver that shows the closest matching frequency response measurement. In order to respect this philosophy and added value to these great products, we at SoundImports, recomend you to purchase them as pairs.
The Magnetic Arc Oxidisation Process is done at extremely high temperature in a flux bath that is prone to differential temperatures (hot/cold spots) which can warp the cones. The process is 10 times the cost of normal cone production, at least half are scrapped as it does render cones unusable if they are warped even slightly. The MAOP process involves a chemical conversion where the cone material is converted into its crystalline oxide. The crystal grows both inward into the substrate and outward. As such the new coating is not a deposited coating it is part of the original structure which gives excellent adhesion. The large crystal structure provides excellent stiffness and resistance to damage. The crystalline structure also encapsulates microscopic voids. It is supposed that it is the blend of microscopic voids and stiff structure that lend the cone the audio properties of both the metal cone and the paper cone, accuracy and a listen all day quality.
After construction, each driver is individually measured in the anechoic chamber at the Markaudio factory and pair matched based on that data to within, 0.5% tolerance. Each pair is supplied with individual electrical and acoustic measurements.
Specifications
power handling (continuous/programme) = 20 Watt
resonance frequency fs = 73.4479 Hz
impedance R = 6 Ohm
sound pressure level SPL = 85.8727
DC resistance Re = 5.400 Ohm
force factor BL = 3,9290 N/A
voice coil inductance L = 0,1580 mH
effective piston radiating area Sd = 50,2 cm2
effective mechanical mass incl. air load mms = 4.0935 g
equivalent volume of compliance Vas = 4,047 l
Qts = 0,5365
Qms=2.8529
Qes=0,6608
maximum peak linear excursion vibration xlin = +/- 4,5 mm
