SB Acoustics SW26DAC00

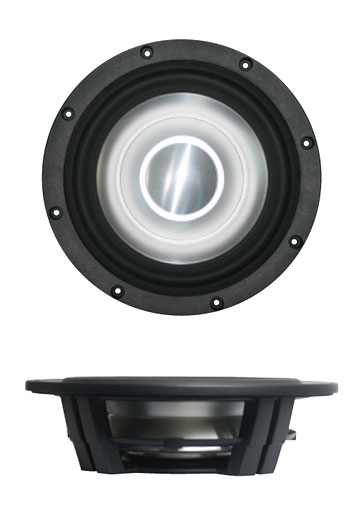

SB Acoustics SW26DAC00 10" Passive Radiator

• Dual rigid aluminum cone structure
• Cast aluminium chassis for optimum strength
• Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
• Easily adjustable moving mass

Specifications

• resonance frequency fs = 19,5 Hz
• effective piston radiating area Sd = 312 cm²
• effective mechanical mass incl. air load mms = 172 g
• equivalent volume of compliance Vas = 54 l
• total Q factor Qts = 0,28 (Qms=4,4, Qes=0,29)

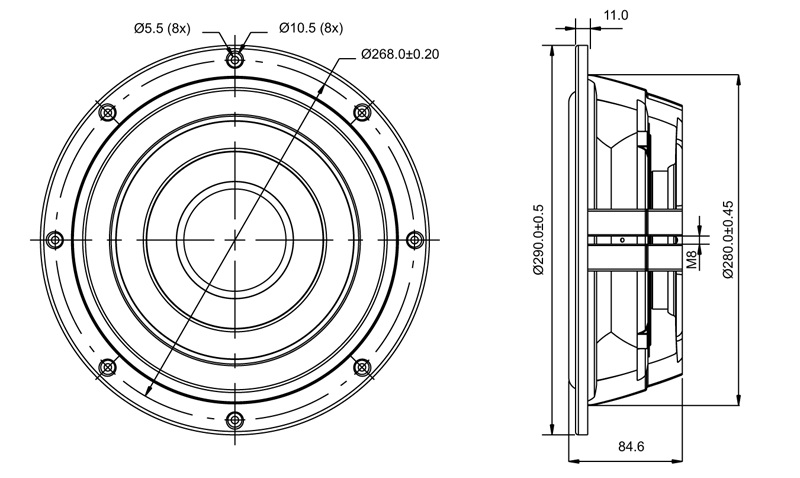

• mounting diameter d = 249 mm
• overall diameter d = 290 mm
• mounting depth (not countersunk) t = 70,5 mm
