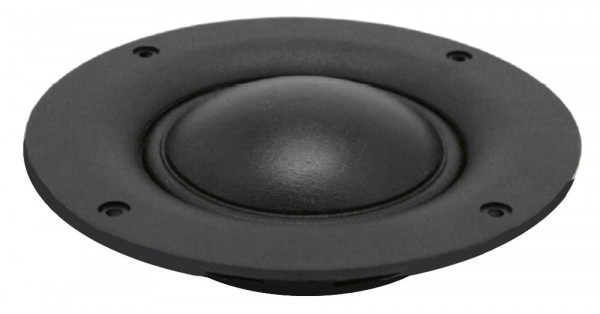

The Scan-Speak D7608/9200.10 3" Dome Midrange series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
Fast action due to low moving mass
High SPL Output 92dB
Internal Ferrite Magnet
Wide Dispersion
Vented / open rearside (requires chamber)
Internal grill to prevent dome from being pushed in
Specifications
power handling (continuous/programme) = 80 W
frequency range = 600-6000 Hz
resonance frequency fs = 300 Hz
impedance R = 8 Ohm
sound pressure level SPL = 92 dB (2,83V; 1m)
DC resistance Re = 5,7 Ohm
force factor BL = 4,7 N/A
voice coil inductance L = 0,13 mH
effective piston radiating area Sd = 55 cm2
effective mechanical mass incl. air load mms = 3,3 g
equivalent volume of compliance Vas = 0,36 l
total Q factor Qts = 1,73 (Qms=7,75, Qes=2,22)
voice coil diameter = 76 mm
maximum peak linear excursion vibration xlin = +/- 0,4 mm
