Product information "Tangband W8-1808"

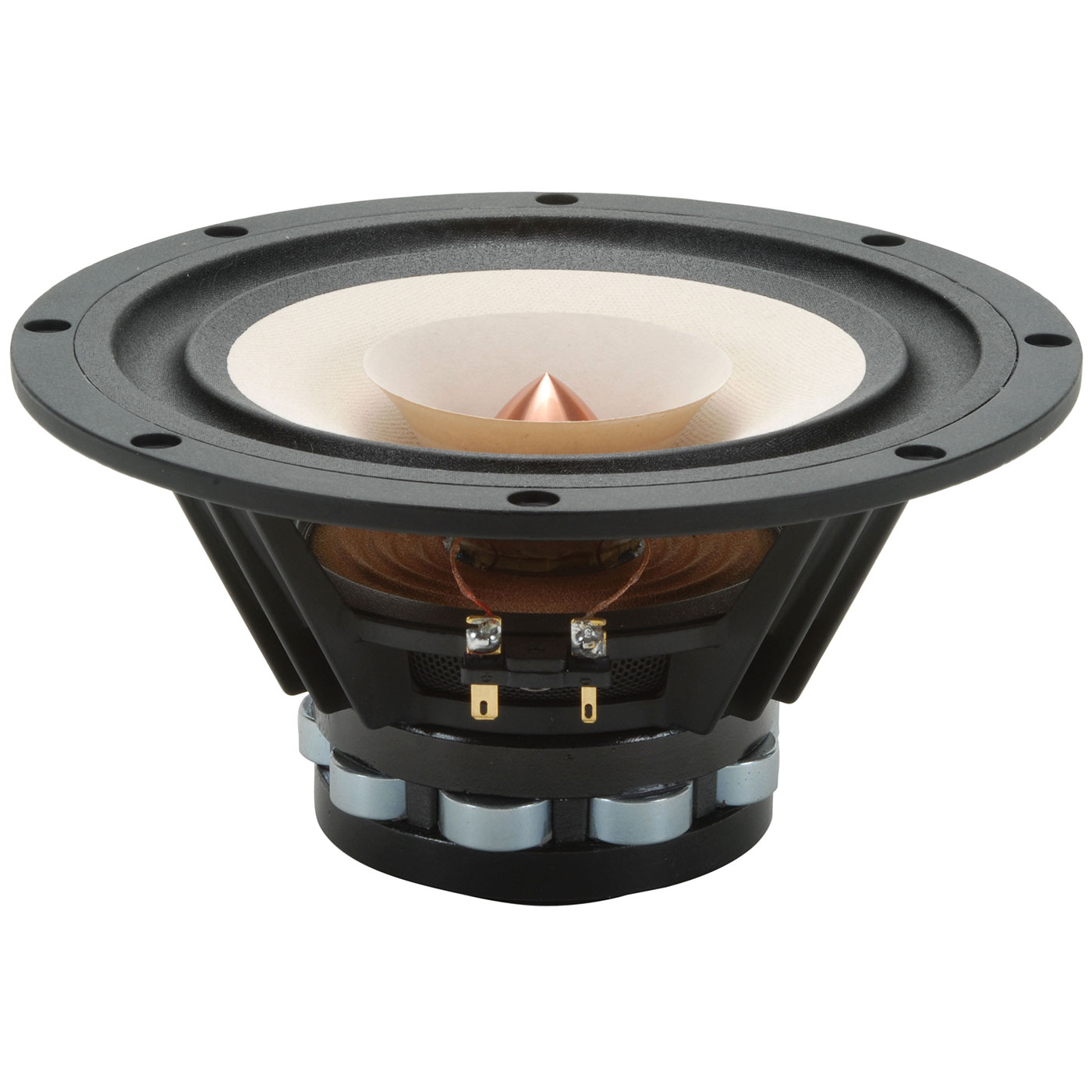

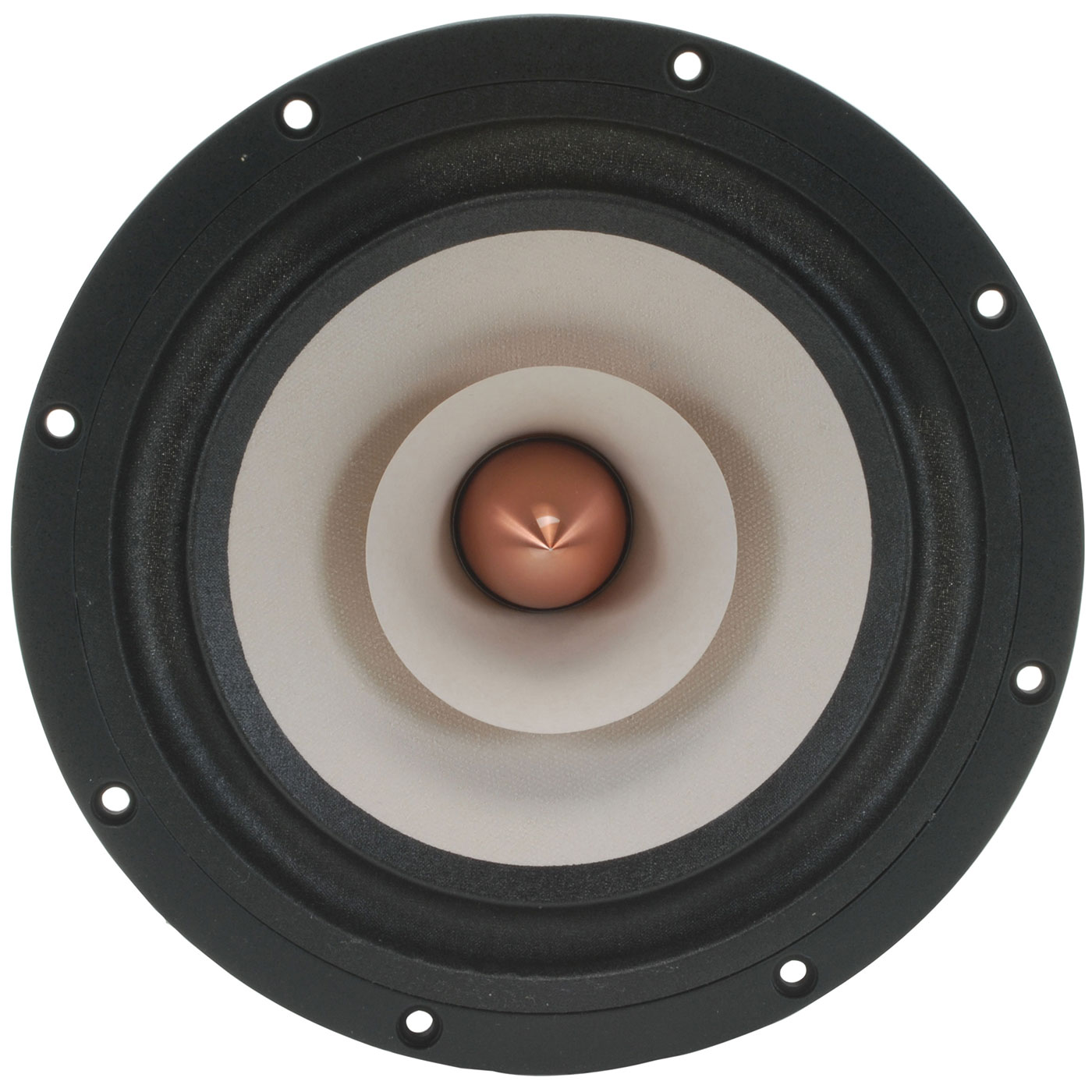

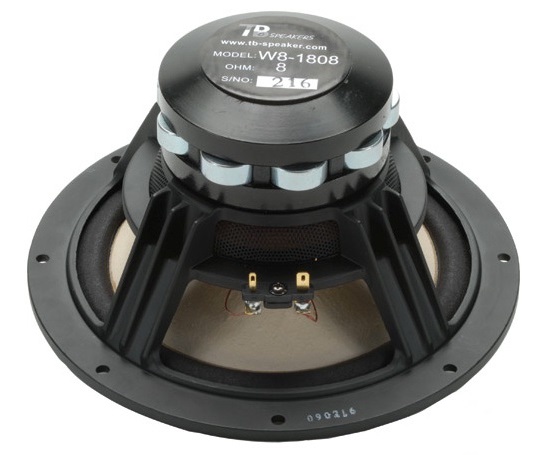

The W8-1808 neo full range driver incorporates a higher Qts for large or open enclosures. An underhung voice coil and carefully balanced paper cone contribute to smooth response with exceptionally low distortion. Other features include a copper plated aluminum phase plug, die cast frame, and treated cloth surround. An ideal driver for single-ended tube amp systems.
DIAPHRAGM MTL | Paper |
SURROUND MTL | Fabric |
NOMINAL IMPEDANCE | 8 Ohm |
DCR IMPEDANCE | 6.8 Ohm |
SENSITIVITY 1W/1m | 93 dB |

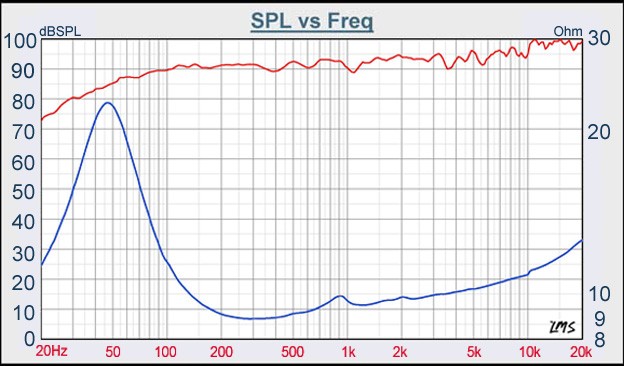

FREQUENCY RESPONSE | 45Hz-20K Hz |
FREE AIR RESONANCE | 45 Hz |
VOICE COIL DIAMETER | 38.5 mm |
AIR GAP HEIGHT | 14 mm |
RATED POWER INPUT | 30 W |
MAXIMUM POWER INPUT | 60 W |
FORCE FACTOR, BL | 5.28 TM |
MAGNET WEIGHT ( oz) | Neodymium |
MOVING MASS | 9.43 g |
FERRO FLUID ENHANCED | No |
SUSPENSION COMPL. | 1282 uMN-1 |
EFFEC.PISTON AREA | 0.022 M2 |
Levc | 0.048 mH |
Zo | 26 ohm |
X-max | 5 mm |
Vas | 88.14 Litr. |
Qts | 0.44 |
Qms | 1.33 |
Qes | 0.66 |
