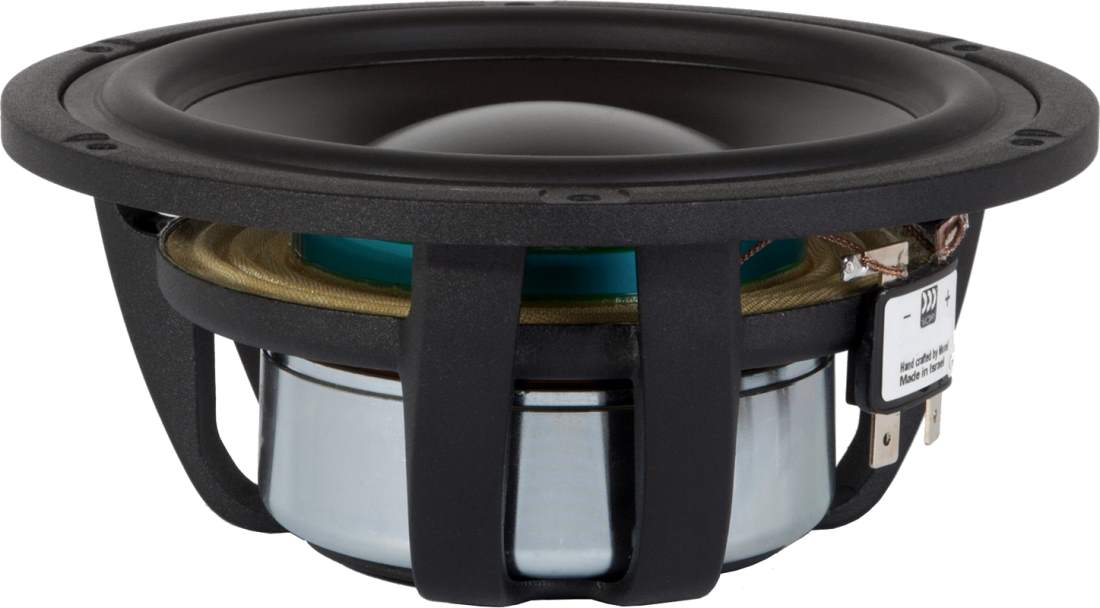

Morel EW 638

€174.83 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 753084
Morel EW 638 Elite Series 6` woofers feature large diameter voice coils, open yet strong frames,... more
Product information "Morel EW 638"

Morel EW 638 Elite Series 6` woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems.



Features

  • Uniflow™ Aluminum diecast chassis
  • Hybrid™ Neodymium/Ferrite magnet system
  • 3″ Large Hexatech™ Aluminum voice coil
  • High power handling
  • High Xmax, Low Qts, Low Fs



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 30-4000 Hz
  • resonance frequency fs = 43 Hz

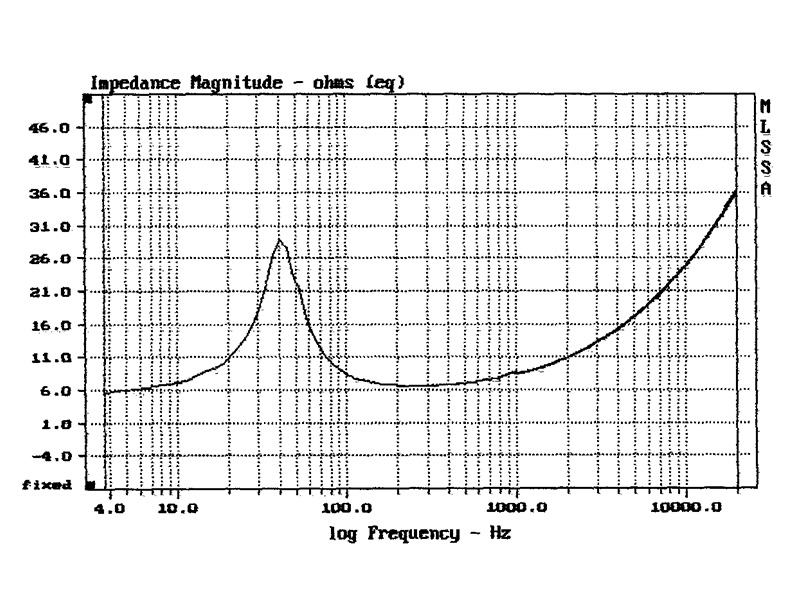

  • impedance R = 8 Ohm

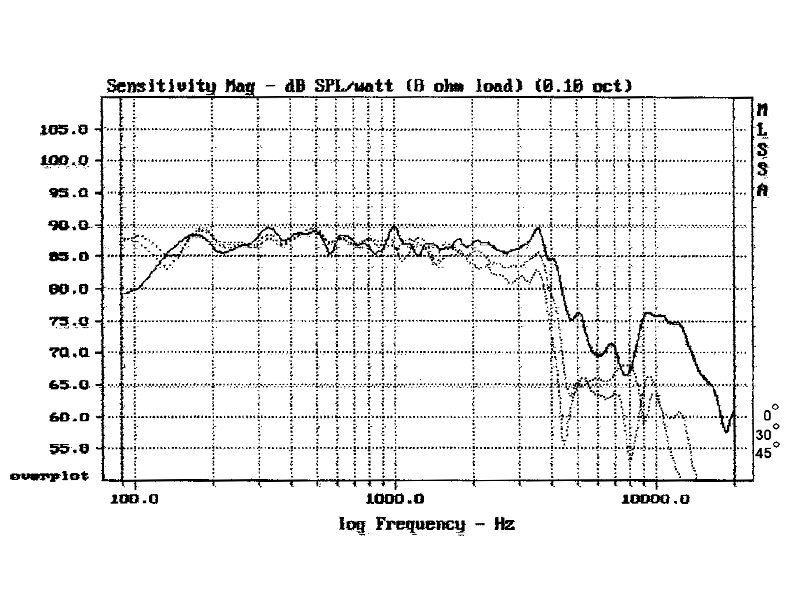

  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 7,5 N/A
  • voice coil inductance L = 0,27 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 16 g
  • equivalent volume of compliance Vas = 16,92 l
  • total Q factor Qts = 0,31 (Qms=1,63, Qes=0,38)

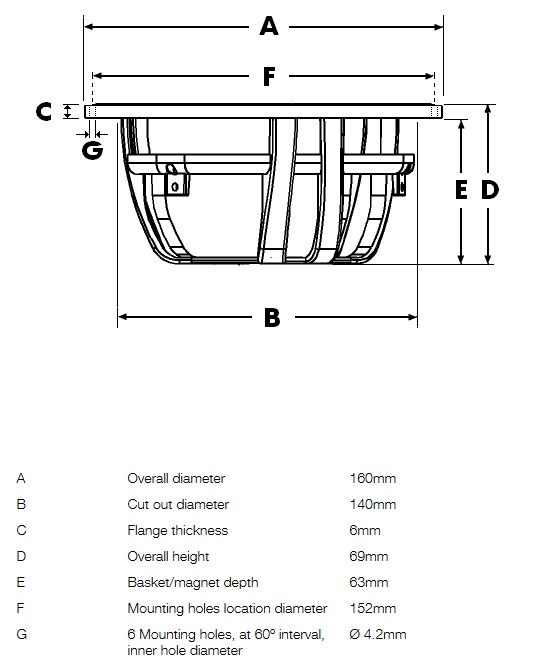

  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm
  • mounting diameter d = 140 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 63 mm
