Visaton SC 13 8Ohm

€26.38 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-8013
Visaton SC 13 8Ohm   Magnetically shielded 13 cm (5") HiFi fullrange driver with... more
Product information "Visaton SC 13 8Ohm"

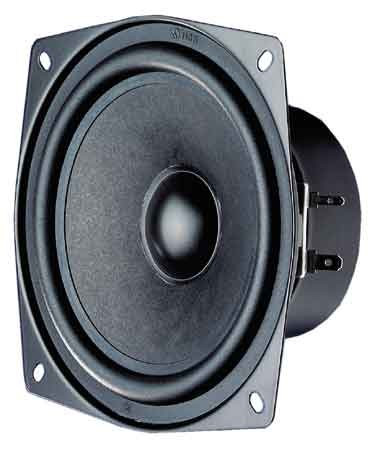

Visaton SC 13 8Ohm



Magnetically shielded 13 cm (5") HiFi fullrange driver with cellulose cone and rubber surround. Can be used as a low-midrange driver too. Due to the very balanced frequency response especially suitable for magnetically shielded 2-way speakers for multi-media and surround systems in conjunction with the shielded tweeter SC 10 N 8 Ohm.

Typical applications:
- Surround centre speakers
- Multimedia systems
- Video monitoring screens
- TVs
- Computer terminals

Specifications

  • power handling (continuous/programme) = 40/60 W

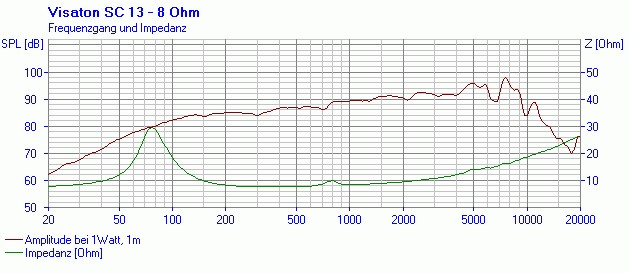

  • frequency range = 90-13000 Hz
  • resonance frequency fs = 75 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 7 Ohm
  • force factor BL = 4,2 N/A
  • voice coil inductance L = 0,66 mH
  • effective piston radiating area Sd = 79 cm2
  • effective mechanical mass incl. air load mms = 4,8 g
  • equivalent volume of compliance Vas = 8 l
  • total Q factor Qts = 0,73 (Qms=3,73, Qes=0,9)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm

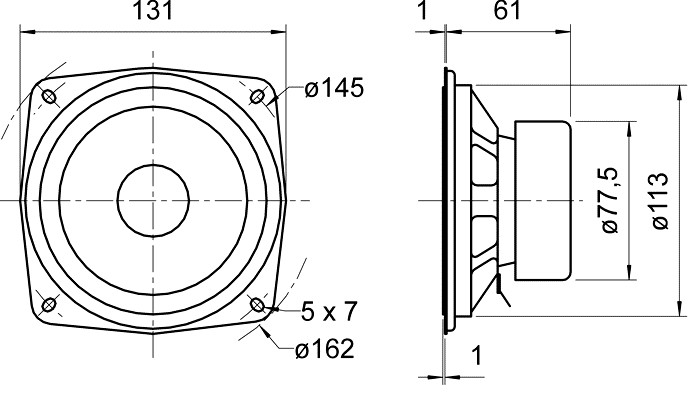

  • mounting diameter d = 113 mm
  • overall diameter d = 131 mm
  • mounting depth (not countersunk) t = 61 mm
