Visaton FR 10 4Ohm

€11.82 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • vi-2020
Visaton FR 10  4Ohm   10 cm (4") fullrange speaker with good bass... more
Product information "Visaton FR 10 4Ohm"

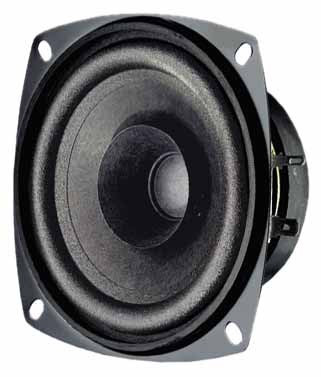

Visaton FR 10  4Ohm



10 cm (4") fullrange speaker with good bass reproduction, balanced frequency response and high efficiency. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers.

Typical applications:
- Network column speakers
- Ceiling-mounted speakers in railway carriages an busses
- Built-in car hi-fi speakers
- Electronic musical instruments



Specifications

  • power handling (continuous/programme) = 20/30 W

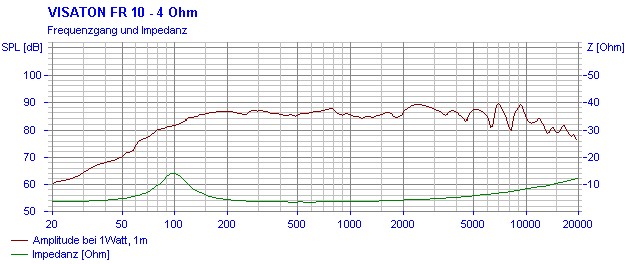

  • frequency range = 80-20000 Hz
  • resonance frequency fs = 90 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 3,4 Ohm
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 50 cm2
  • effective mechanical mass incl. air load mms = 5,5 g
  • equivalent volume of compliance Vas = 1,9 l
  • total Q factor Qts = 0,57 (Qms=2,13, Qes=0,77)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 1,5 mm

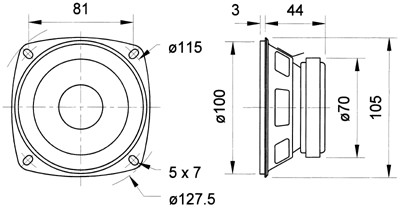

  • mounting diameter d = 105 mm
  • overall diameter d = 127,5 mm
  • mounting depth (not countersunk) t = 44 mm
