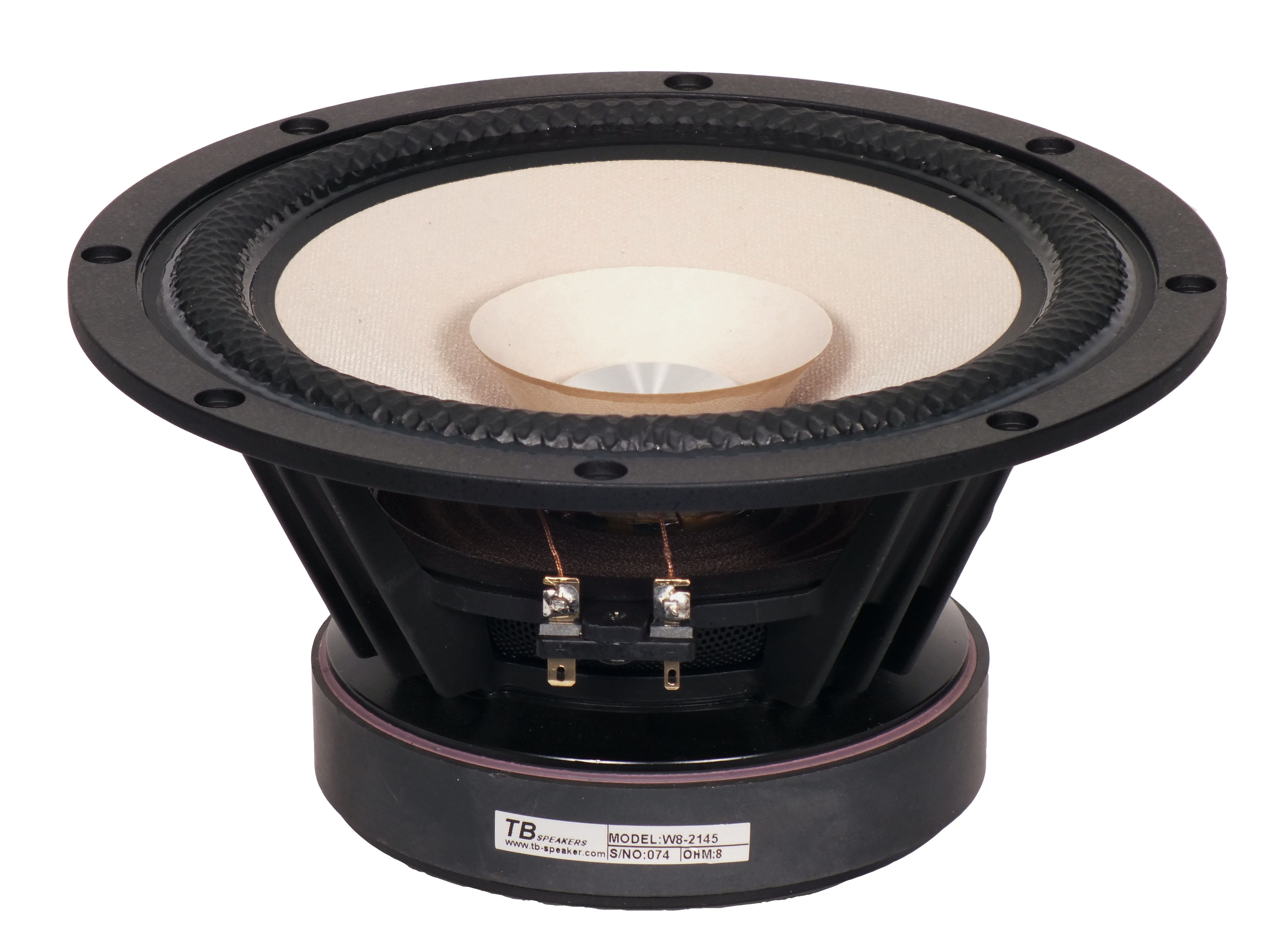

Tangband W8-2145

€135.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • tbW8-2145
The W8-2145 full range driver from Tang Band with its bamboo fiber reinforced paper cone can... more
Product information "Tangband W8-2145"

The W8-2145 full range driver from Tang Band with its bamboo fiber reinforced paper cone can provide incredibly smooth response from 40 to 20,000 Hz. With an underhung motor design, most of the voice coil stays within the magnetic gap for the highest possible control to keep 2nd and 3rd order harmonic distortion at a minimum. The unique whizzer cone with phase plug design allows for better dispersion while increasing high frequency response. This driver is ideally suited for small single driver speaker systems with incredibly smooth and full sound.



  • Aluminum phase plug also acts as a shorting ring for lower distortion
  • Underhung voice coil improves control for lower distortion
  • Whizzer cone design increases high frequency response
  • Unique surround and large spider keeps cone linear well beyond the rated xmax



Specifications

  • power handling (continuous/programme) = 40/80 W

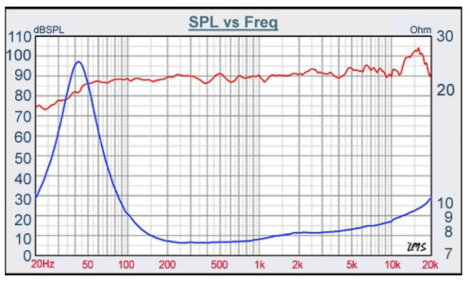

  • frequency range = 40-20000 Hz
  • resonance frequency fs = 40 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 6,59 N/A
  • equivalent volume of compliance Vas = 67,67 l
  • total Q factor Qts = 0,45 (Qms=1,65, Qes=0,61)
  • voice coil diameter = 38,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm

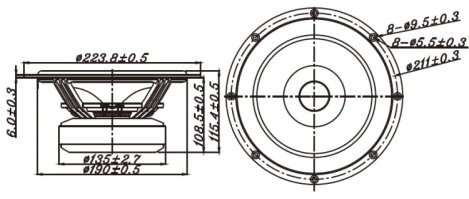

  • mounting diameter d = 190 mm
  • overall diameter d = 224 mm
  • mounting depth (not countersunk) t = 109 mm
