Peerless HDS-205 Nomex

€90.72 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 830869
The Peerless HDS-205 Nomex 8 inch 8 ohm driver is a member of the high performance HDS family. A... more
Product information "Peerless HDS-205 Nomex"

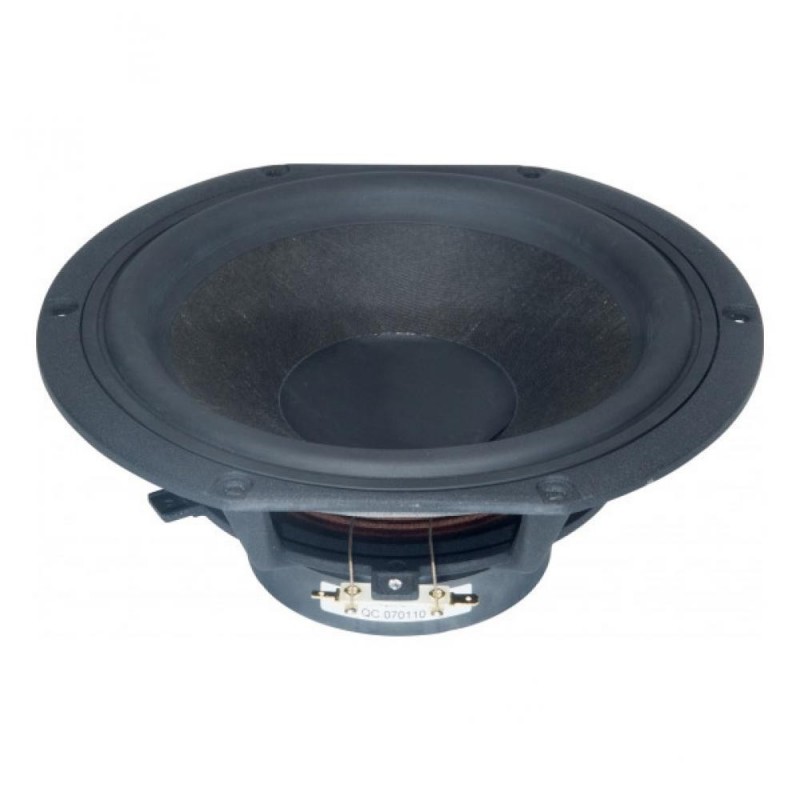

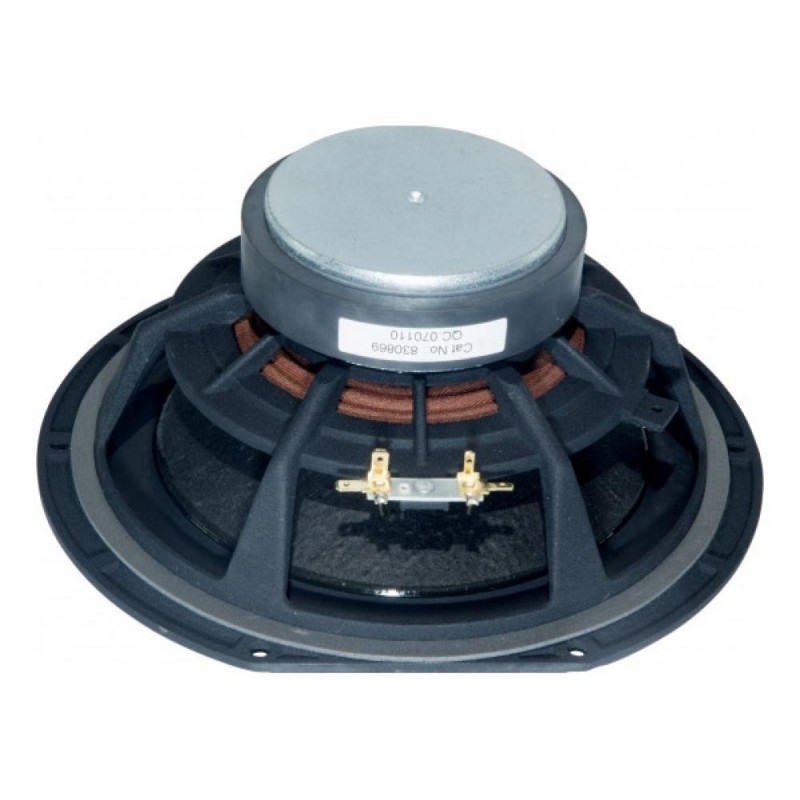

The Peerless HDS-205 Nomex 8 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is nomex based, offering a unique visual and acoustic experience.



Specifications

  • power handling (continuous/programme) = 60 W

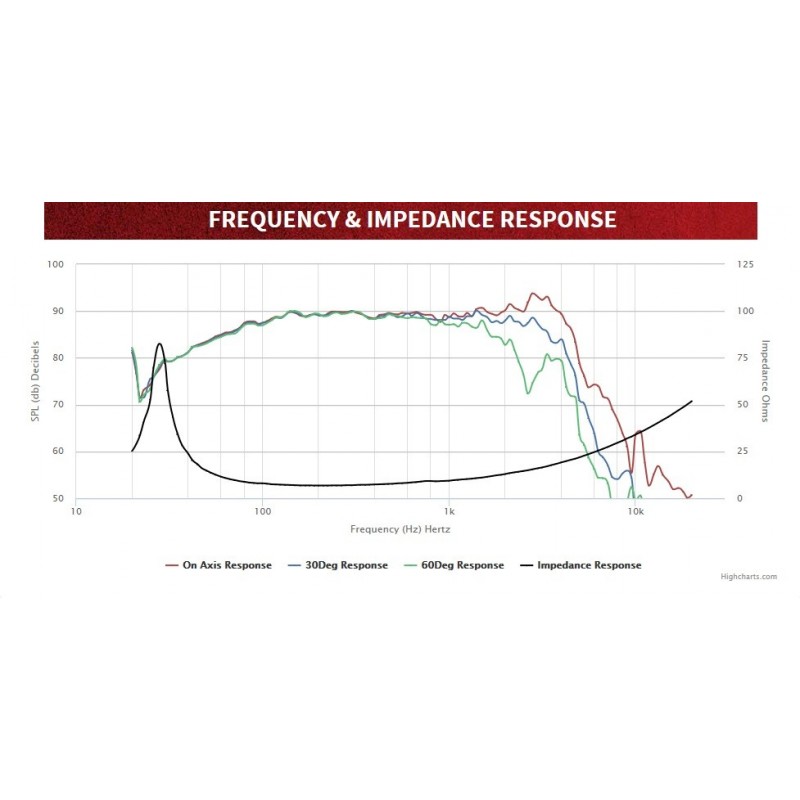

  • frequency range = 30-1500 Hz
  • resonance frequency fs = 29,6 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89,3 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 8,92 N/A
  • voice coil inductance L = 0,63 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 24 g
  • equivalent volume of compliance Vas = 87,41 l
  • total Q factor Qts = 0,31 (Qms=4,4, Qes=0,33)
  • maximum peak linear excursion vibration xlin = +/- 5,5 mm

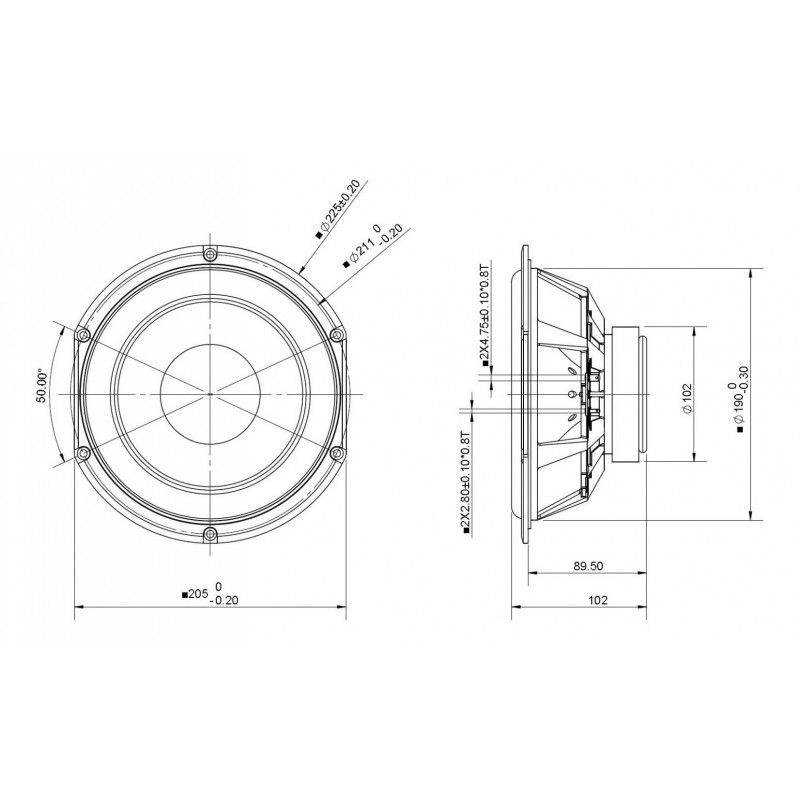

  • mounting diameter d = 190 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 89,5 mm
