Wavecor WF275BD02

€358.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • wf275bd02
Wavecor WF275BD02 10" die cast paper/glass fiber cone 8 Ohm   The 10.75” transducers... more
Product information "Wavecor WF275BD02"

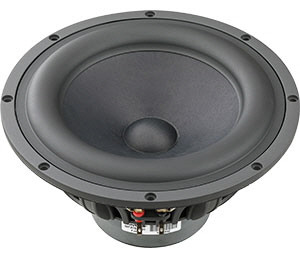

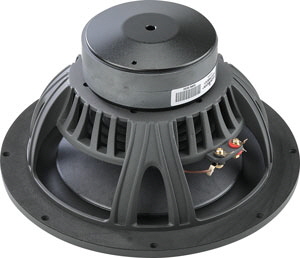

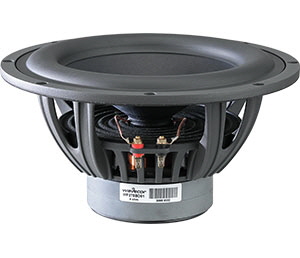

Wavecor WF275BD02 10" die cast paper/glass fiber cone 8 Ohm



The 10.75” transducers WF275BD01 (4 ohm) and WF275BD02 (8 ohm) were designed as high performance bass/midrange units for monitors and high-end hi-fi speakers. They offer outstanding extended bass performance and overall dynamic and detailed reproduction.
Ideal for multi-way constructions they additionally offer designers the rare opportunity of working with 10” 2-way solutions if paired with a suitable tweeter, like for instance some of the Wavecor 30 mm units.



FEATURES

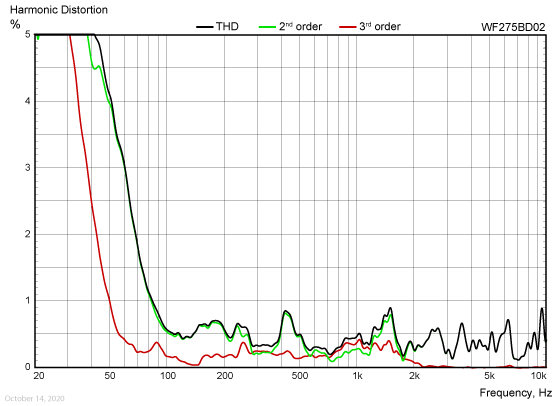

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Cone made of a new paper/glass fiber mix with improved consistency and stability
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Vented center pole with dual flares for reduced noise level and compressions at large cone excursions
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 39 mm voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black plated motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection



SPECIFICATIONS

  • power handling (continuous/programme) = 180 W
  • frequency range = 30-3000 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 11,8 N/A
  • voice coil inductance L = 0,23 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 54 g
  • equivalent volume of compliance Vas = 81,5 l
  • total Q factor Qts = 0,45 (Qms=11,3, Qes=0,47)
  • voice coil diameter = 39 mm
  • maximum peak linear excursion vibration xlin = +/- 9 mm

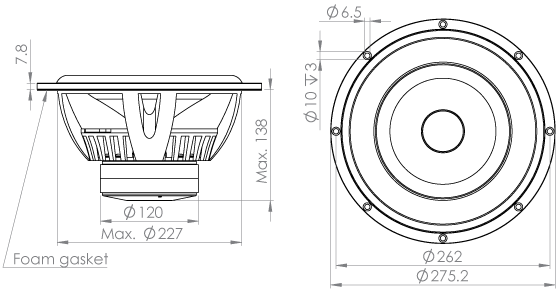

  • mounting diameter d = 227 mm
  • overall diameter d = 275,2 mm
  • mounting depth (not countersunk) t = 145 mm
