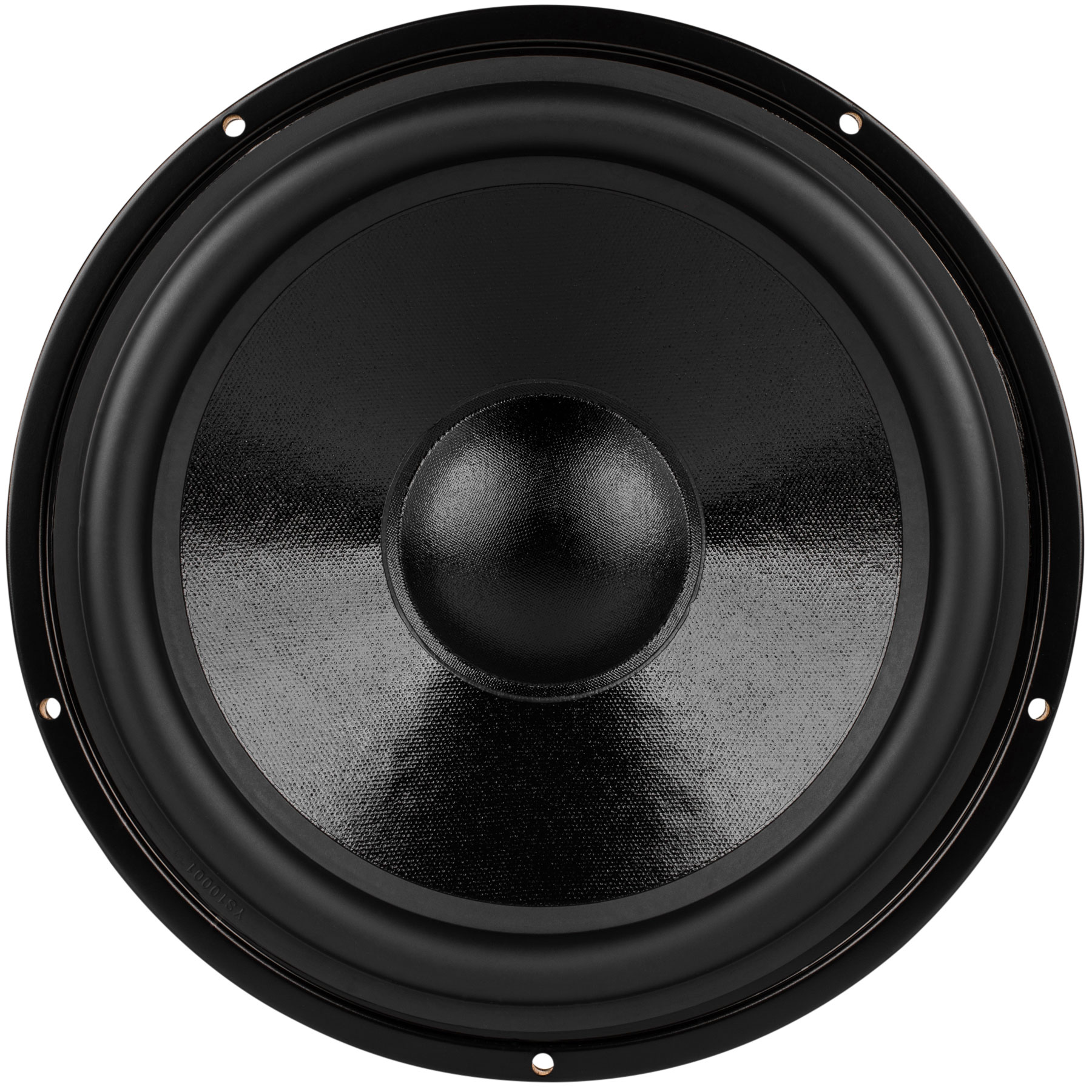

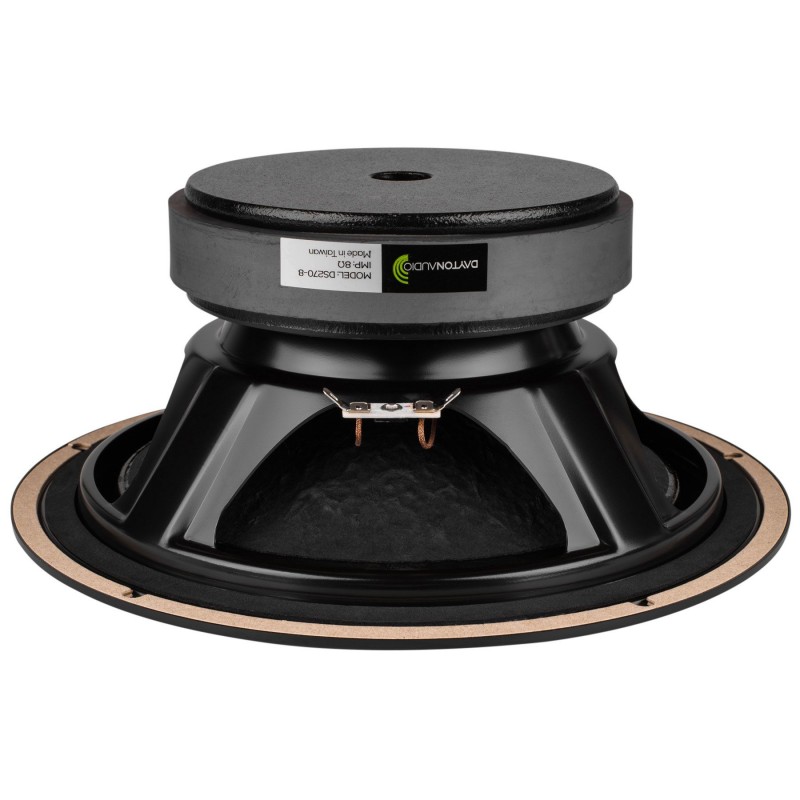

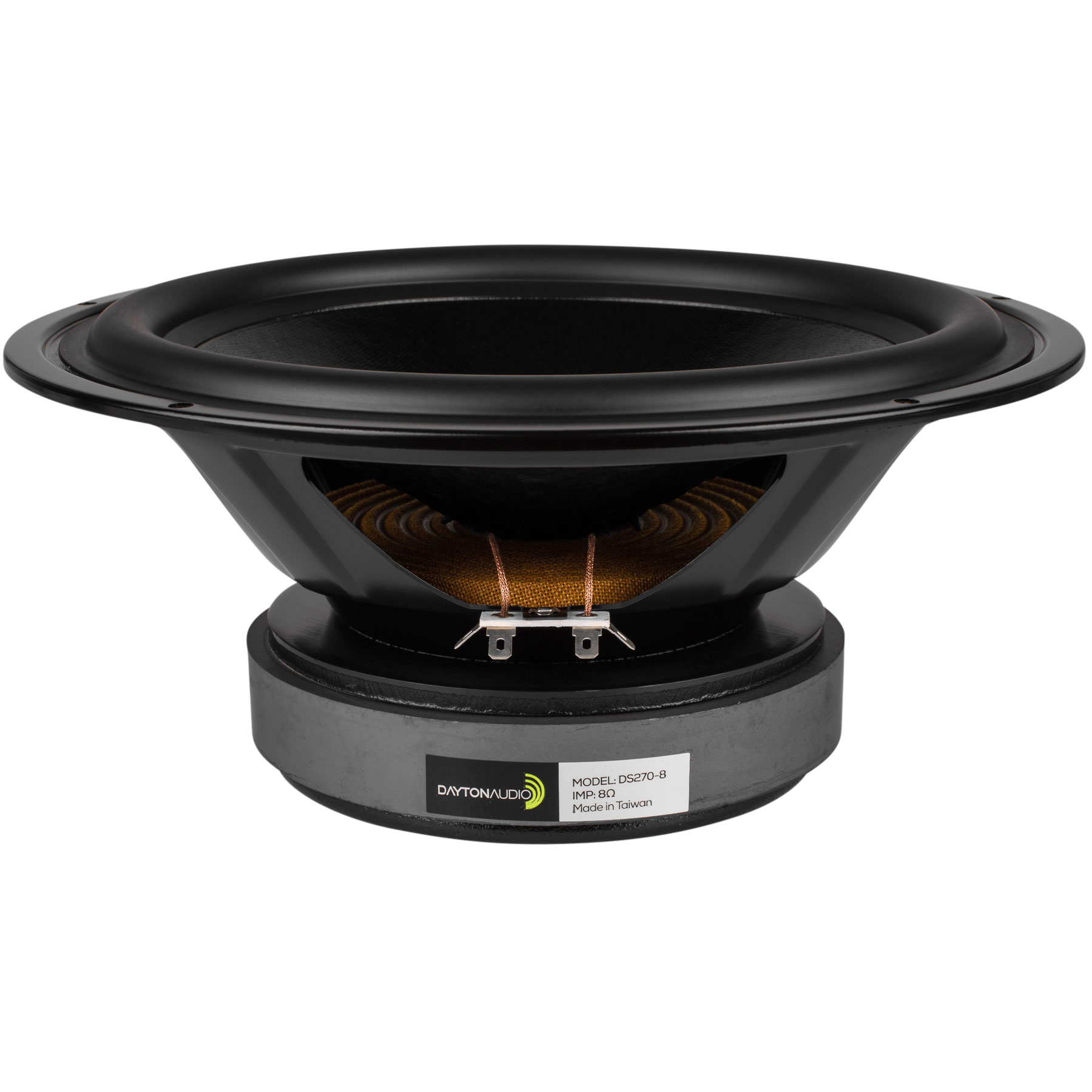

Dayton Audio DS270-8

€103.55 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-ds270-8
The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz... more
Product information "Dayton Audio DS270-8"
The Dayton Audio Designer Series DS270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!



Product Highlights

• Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
• Vented pole piece for minimized power compression and maximized reliability
• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
• Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
• Generous Xmax capability encourages use of moderate bass boost to tailor the response
• Coated paper cone, half roll rubber surround for durability and accurate reproduction
• Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers



Specifications

Impedance
8 ohms

Re
5.4 ohms

Le
1.25 mH @ 1 kHz

Fs
31.6 Hz

Qms
2.40

Qes
0.54

Qts
0.44

Mms
51.5g

Cms
0.49 mm/N

Sd
353.0 cm²

Vd
194.1 cm³

BL
10.1 Tm

Vas
87.7 liters

Xmax
5.5 mm

VC Diameter
38.5 mm

SPL
90.7 dB @ 2.83V/1m

RMS Power Handling
100 watts

Usable Frequency Range (Hz)
30 - 3,000 Hz
