Dayton Audio DA175-8

€40.90 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • da-295-335
7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The... more
Product information "Dayton Audio DA175-8"
7" aluminum cone woofer with rubber surround, flat spider, and special composite dustcap. The cosmetic stamped steel frame provides a very high-class and professional look to your next speaker design. The aluminum cone offers a flat frequency response in the passband region with very low distortion.



Product Highlights

• Special composite dustcap
• Stamped steel frame provides a very high-class and professional look
• Aluminum cone offers a flat frequency response in the passband region with very low distortion



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 35-10000 Hz
  • resonance frequency fs = 39,0 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 7,17 N/A
  • voice coil inductance L = 1,14 mH
  • effective piston radiating area Sd = 132,7 cm2
  • effective mechanical mass incl. air load mms = 25,17 g
  • equivalent volume of compliance Vas = 16,3 l
  • total Q factor Qts = 0,58 (Qms=3,31, Qes=0,70)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm

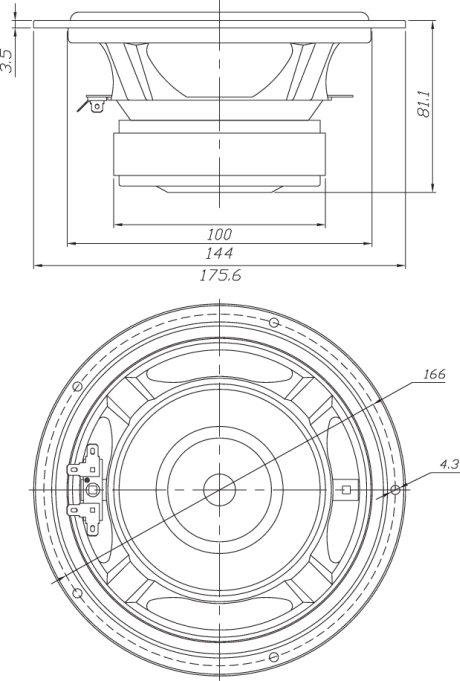

  • mounting diameter d = 144,0 mm
  • overall diameter d = 175,6 mm
  • mounting depth (not countersunk) t = 77,6 mm
