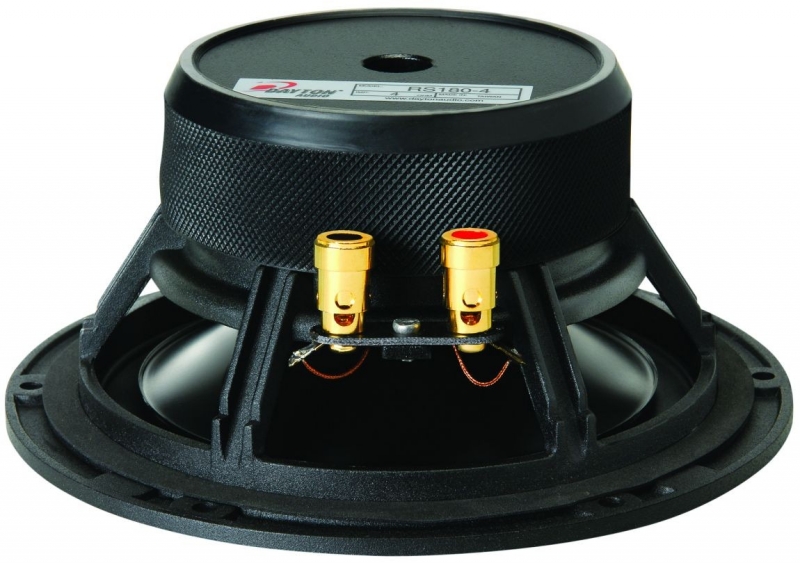

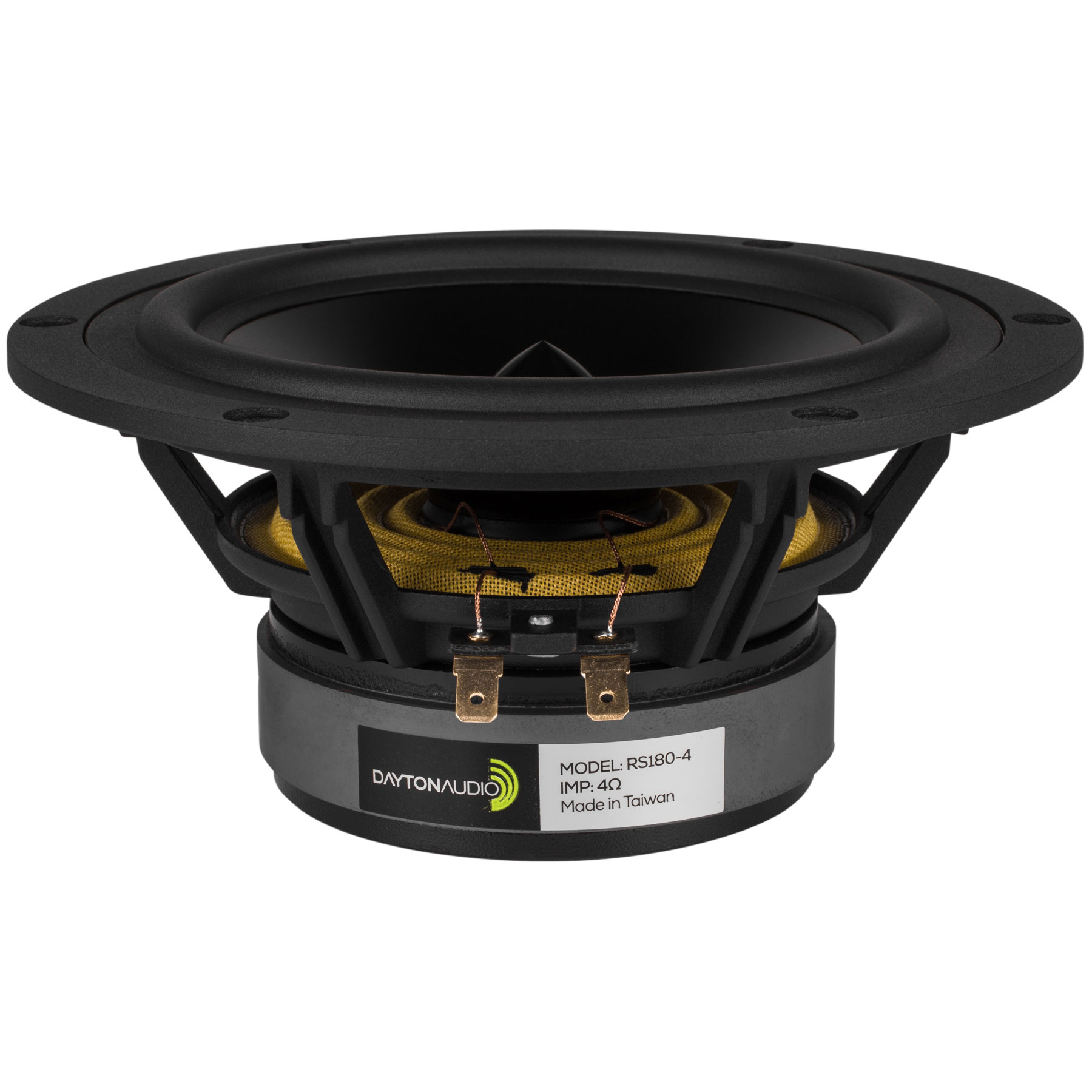

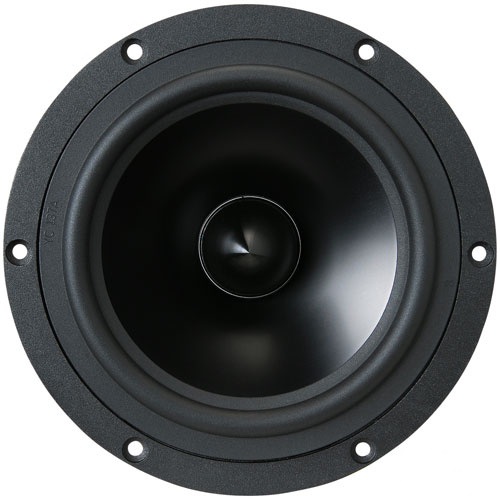

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold spring terminals.
Specifications
power handling (continuous/programme) = 60 W

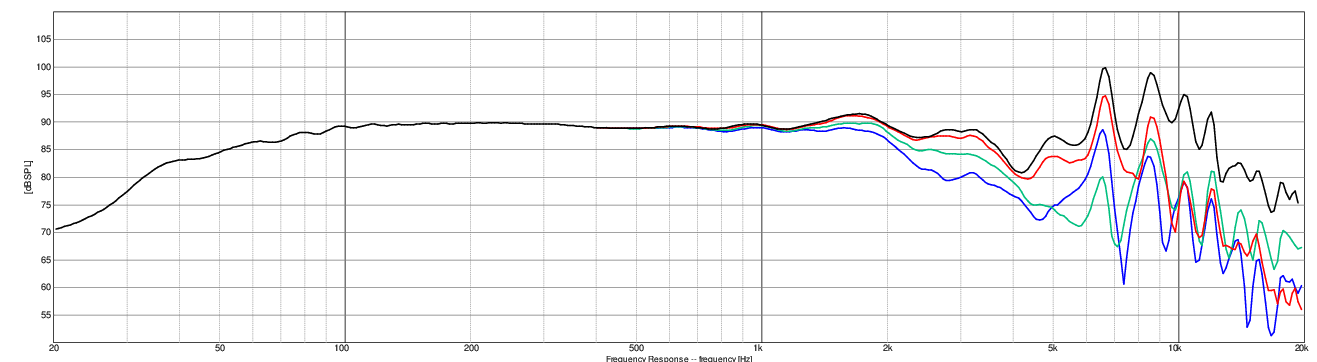

frequency range = 40-2200 Hz
resonance frequency fs = 40,4 Hz

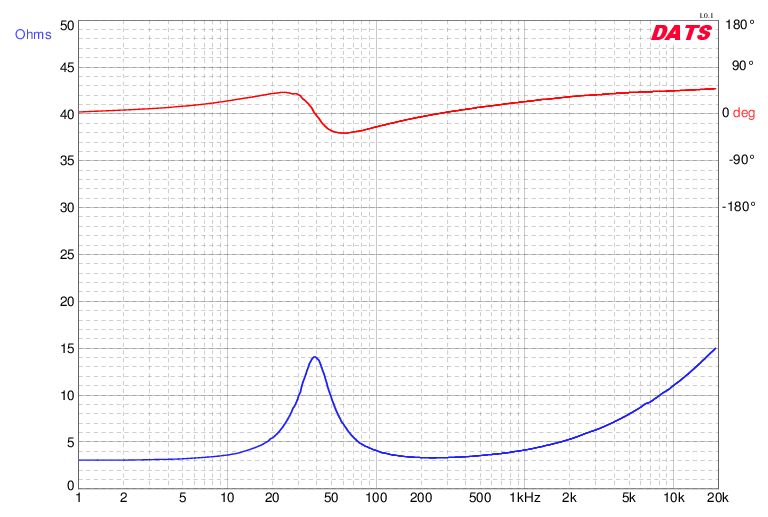

impedance R = 4 Ohm
DC resistance Re = 2,9 Ohm
force factor BL = 4,26 N/A
voice coil inductance L = 0,51 mH
effective piston radiating area Sd = 126,7 cm2
effective mechanical mass incl. air load mms = 14,32 g
equivalent volume of compliance Vas = 24,5 l
total Q factor Qts = 0,5 (Qms=2,66, Qes=0,62)
voice coil diameter = 38 mm
maximum peak linear excursion vibration xlin = +/- 6 mm
