Vifa NE180-W-08

€134.33 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7235156
Vifa NE180W-08, 6½" Woofer This 6.5 inch 8 ohm member of the NE family has leading-edge... more
Product information "Vifa NE180-W-08"

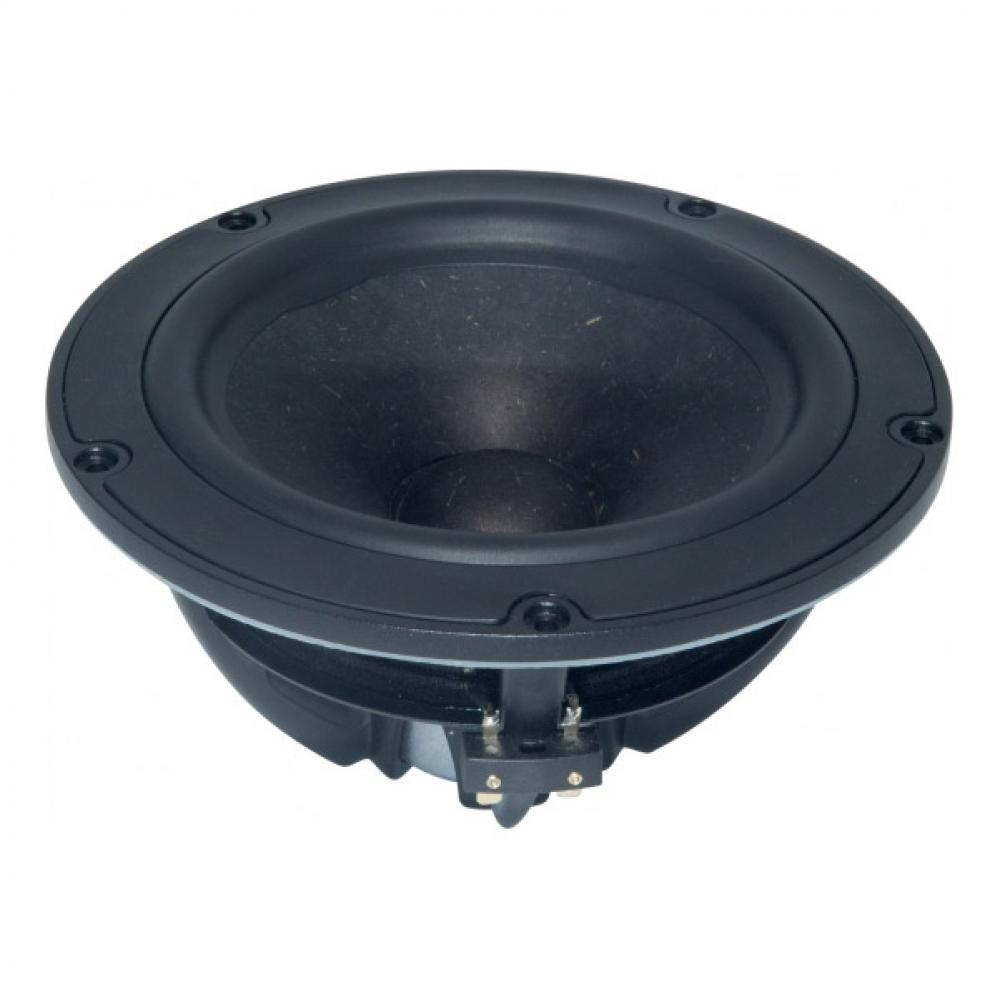

Vifa NE180W-08, 6½" Woofer

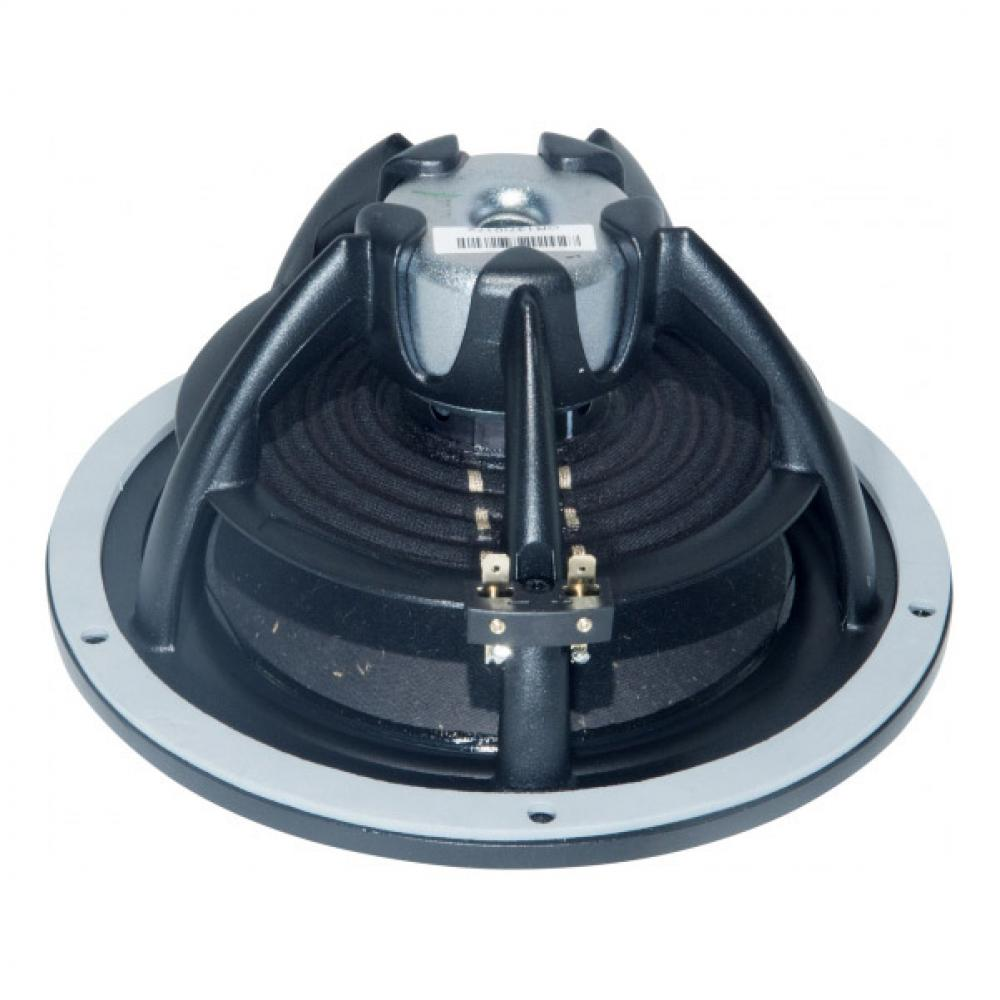

This 6.5 inch 8 ohm member of the NE family has leading-edge transducer technology packaged in a cutting edge, stylistic design. The woofers in this family feature an innovative cast aluminium basket design which minimizes acoustic reflections inside the driver, through large basket windows and sculpted basket spokes. The basket also is designed to act as a highly coupled heat sink to the Neodymium-Iron-Boron magnet (NdFeB) motor, so as to improve power handling capacity. An additional heat sink is available to provide extra thermal protection if needed. The cone and dust cap are constructed of natural wood fiber material with proprietary coating formulas & processes, so as to yield high clarity products. The cone designs also utilize pentacone technology for improved frequency response. The voice coil bobbin is titanium, for improved performance. The FEA-designed motor features copper caps to minimize inductance and extend performance to high frequencies. Rounding out the design is a 4-way terminal block connector, for ease of electrical connection.



Transducer Size     6.5 in
DC Resistance     6.24 Ω ±5.0%
Resonant Frequency     42.3 Hz 15%
Half Space Sensitivity @ 2.83V     87.18 dB ±1.01
Sensitivity @ 1W/1m     86.7 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     80 W
Test Spectrum Bandwidth (1300-20000 Hz)     40Hz - 4kHz 12 dB/Oct
Effective Piston Area     136.9 cm2
Moving Mass     16.4 g
Motor Force Factor     8.17 T•m
Voice Coil Inner Diameter     38.44 mm
Gap Height     6 mm
Maximum Linear Excursion     5 mm
Ferrofluid Type
Minimum Impedance     7.23 Ω ±7.5%
Voice Coil Inductance     0.12 mH
Mechanical Q Factor     7.41
Electrical Q Factor     0.41
Total Q Factor     0.39
Ratio     109.58 fs/Qts
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     863.9 μm/N
Effective Cone Diameter     13.2 cm
Motor Efficiency Factor     10.7 (T•m2)/Ω
Voice Coil Former Material     TiSV GSV
Transducer Mass     2.08 Kg
Equivalent Volume     22.72 L
