Dayton Audio DS175-8

€53.67 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-ds175-8
Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well... more
Product information "Dayton Audio DS175-8"

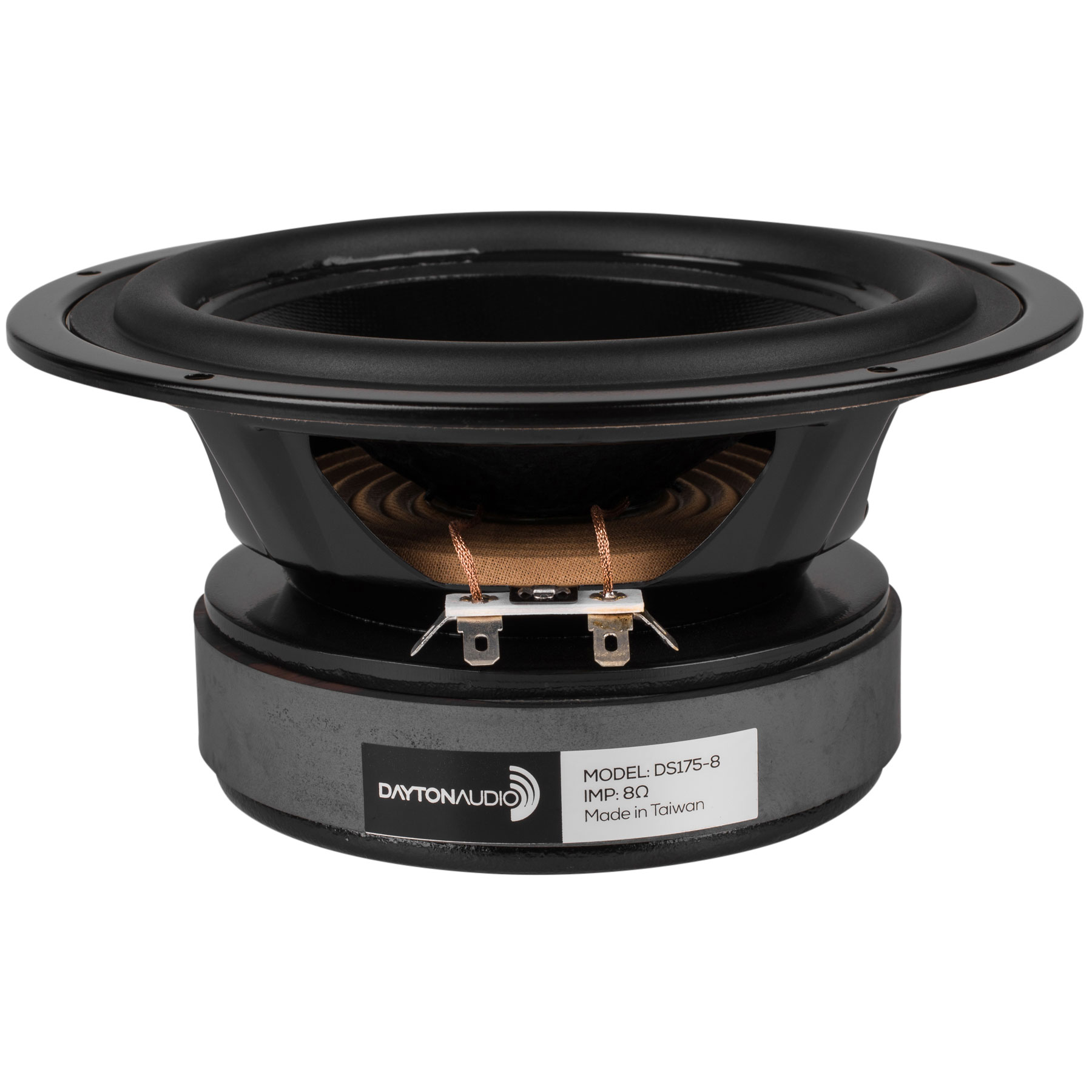

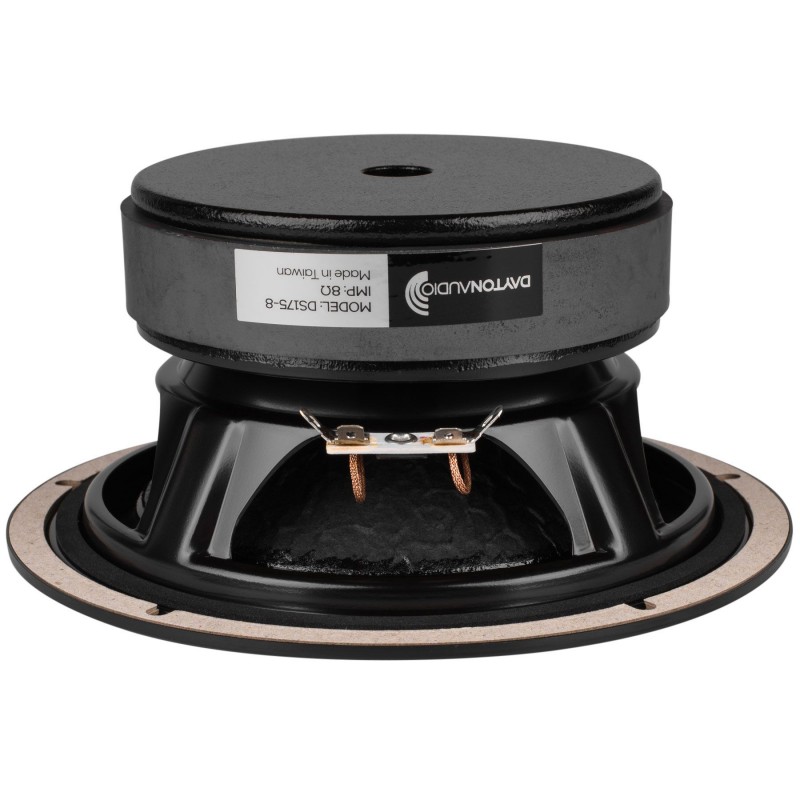

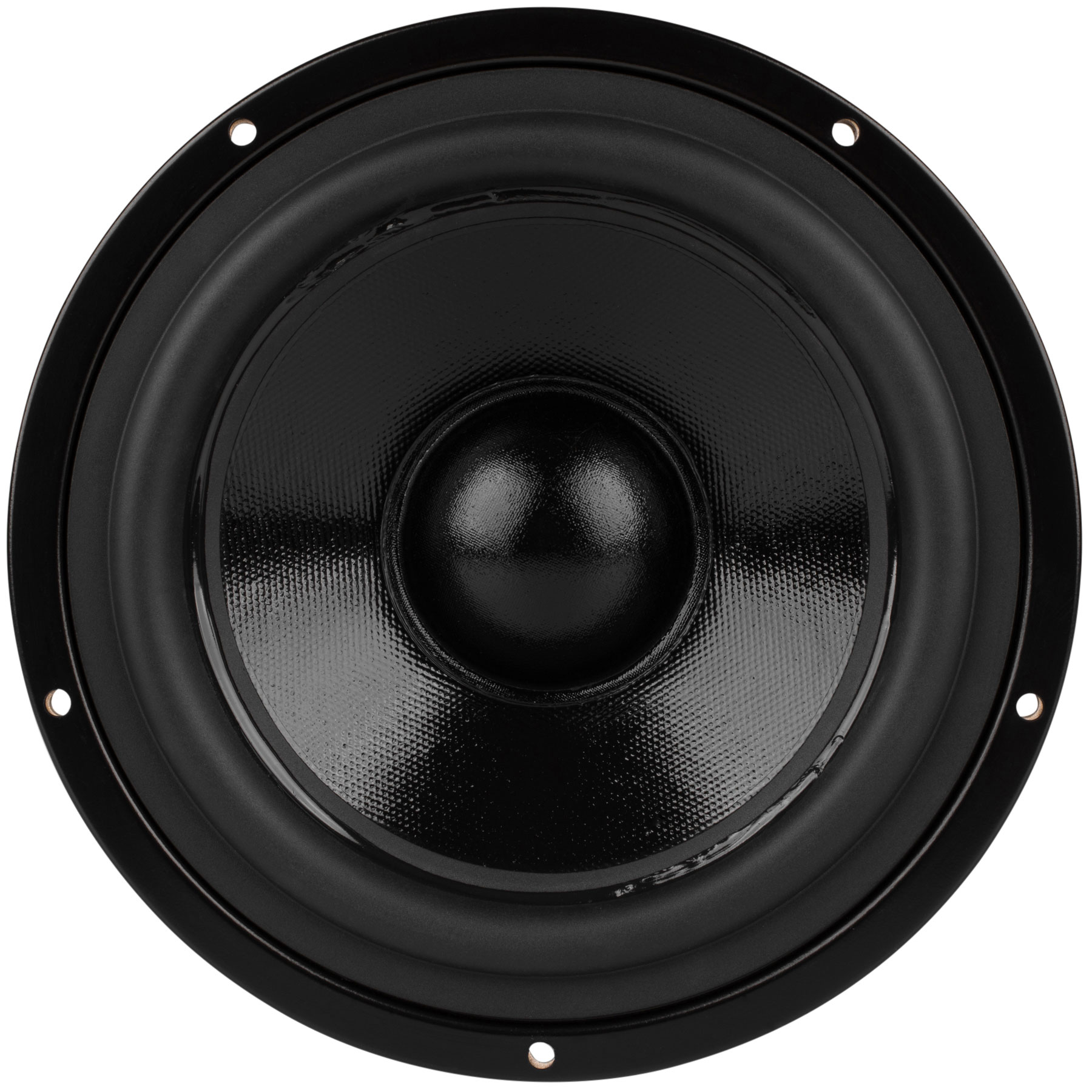

Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!



Product Highlights

• Generous Xmax capability encourages use of moderate bass boost to tailor the response
• Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
• Vented pole piece for minimized power compression and maximized reliability

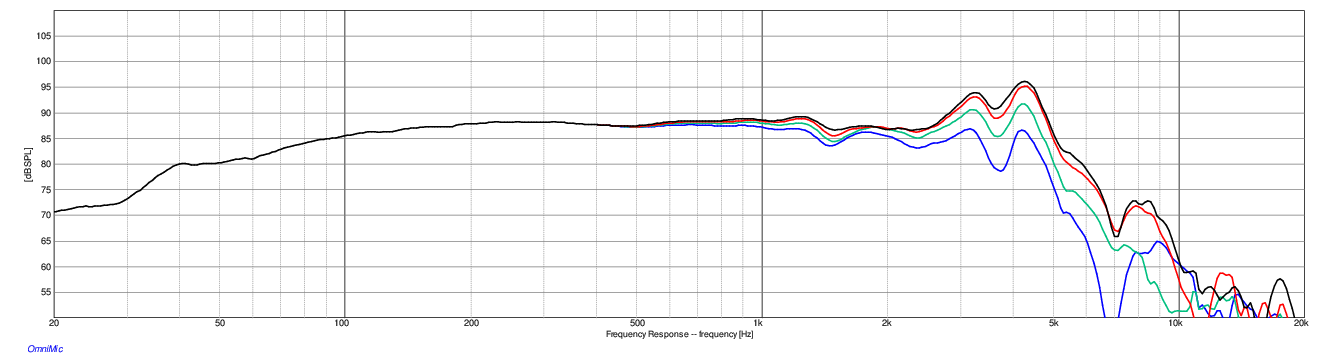

• Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
• Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
• Coated paper cone, half roll rubber surround for durability and accurate reproduction
• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!



Specifications

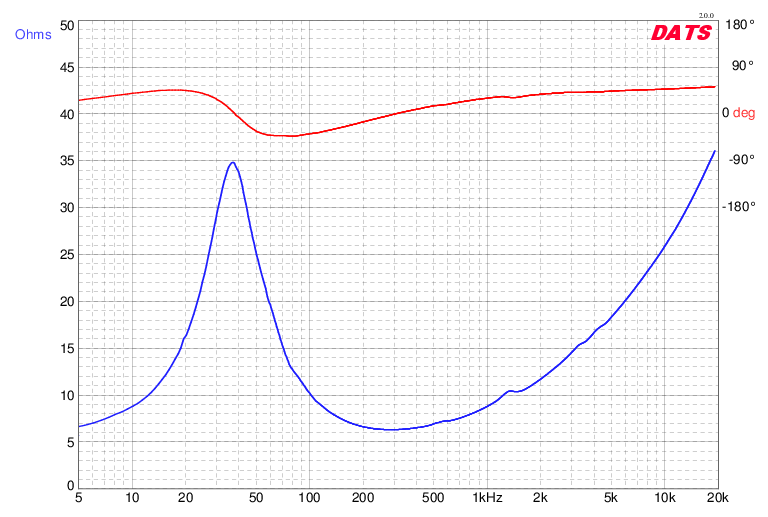

Impedance
8 ohms

Re
5.7 ohms

Le
1.06 mH @ 1 kHz

Fs
37 Hz

Qms
1.63

Qes
0.32

Qts
0.27

Mms
26g

Cms
0.71 mm/N

Sd
128.7 cm²

Vd
67.6 cm³

BL
10.4 Tm

Vas
17 liters

Xmax
5.25 mm

VC Diameter
35.5 mm

SPL
87.7 dB @ 2.83V/1m

RMS Power Handling
70 watts

Usable Frequency Range (Hz)
40 - 4,500 Hz
