Dayton Audio DC160-4

€43.83 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-dc160-4
Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm... more
Product information "Dayton Audio DC160-4"
Designed to offer premium results on a moderate budget, the Dayton Audio DC160-4 6-1/2" 4 ohm woofer provides solid bass and clean midrange response when used in sealed, vented, or transmission line speaker systems.

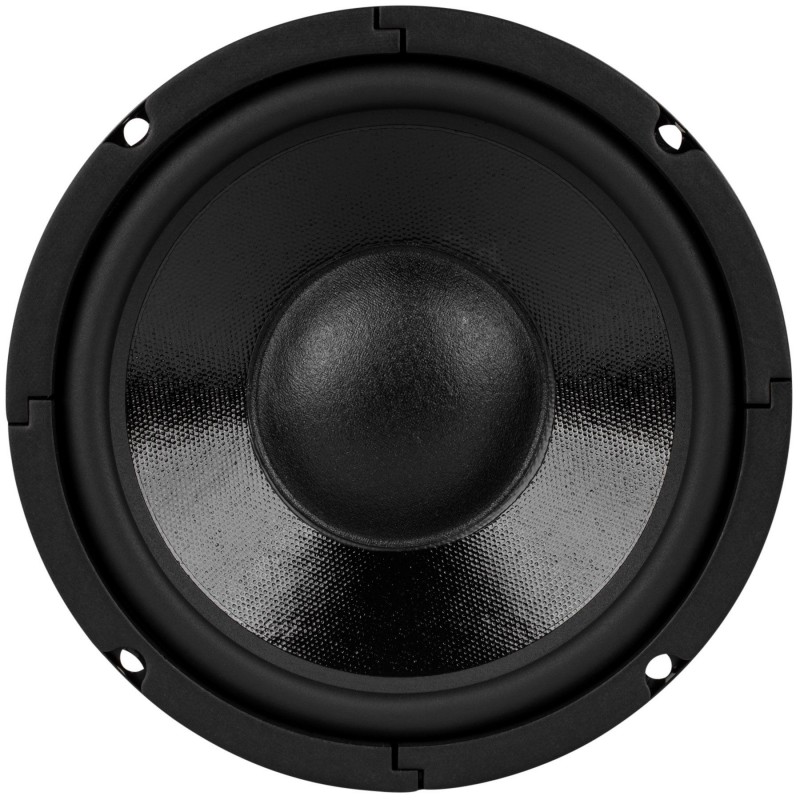

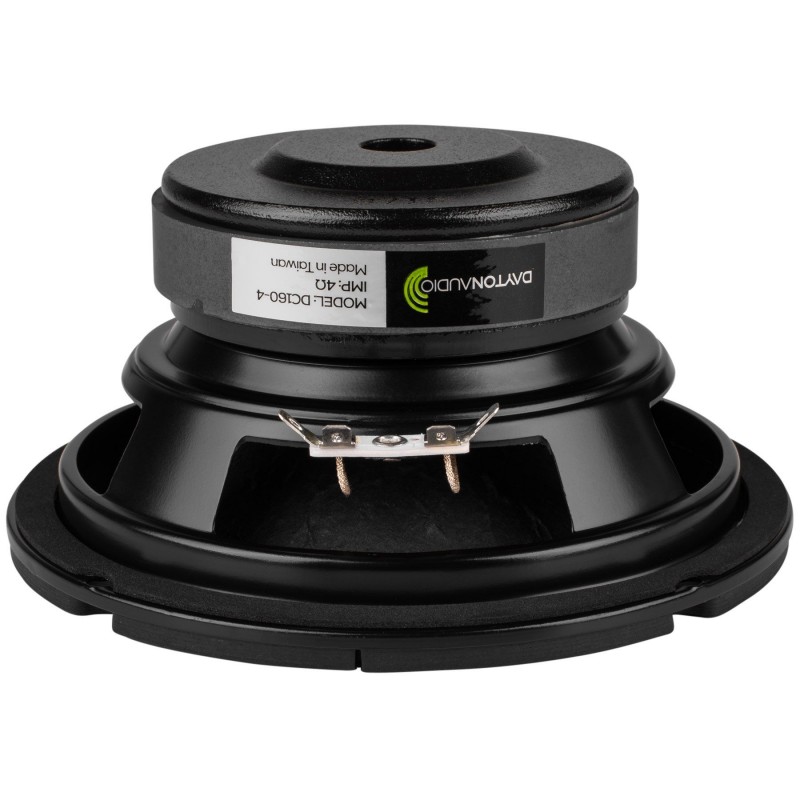

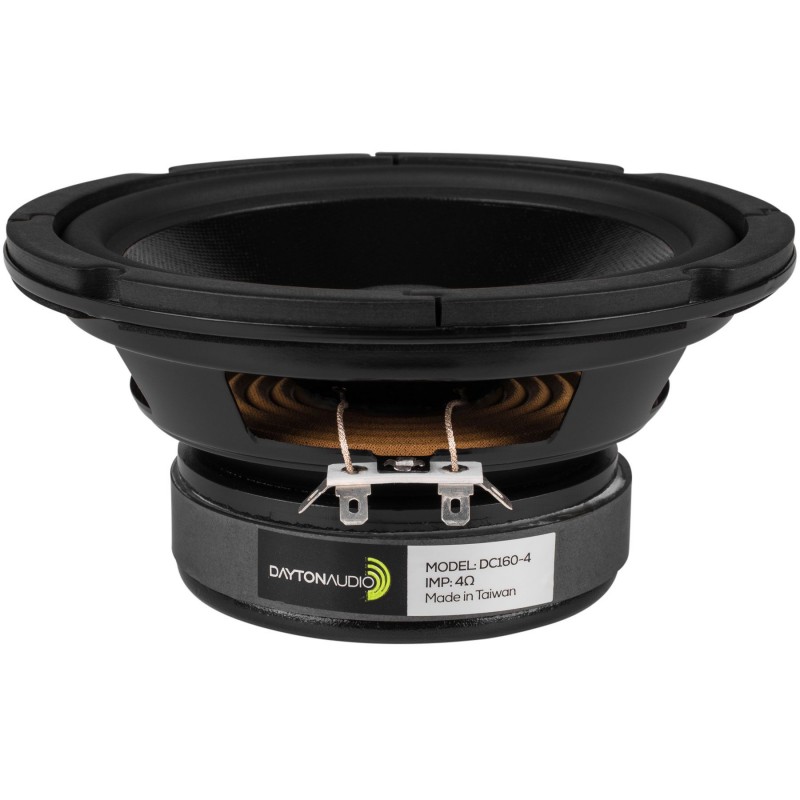

One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.



Specifications

  • power handling (continuous/programme) = 60 W

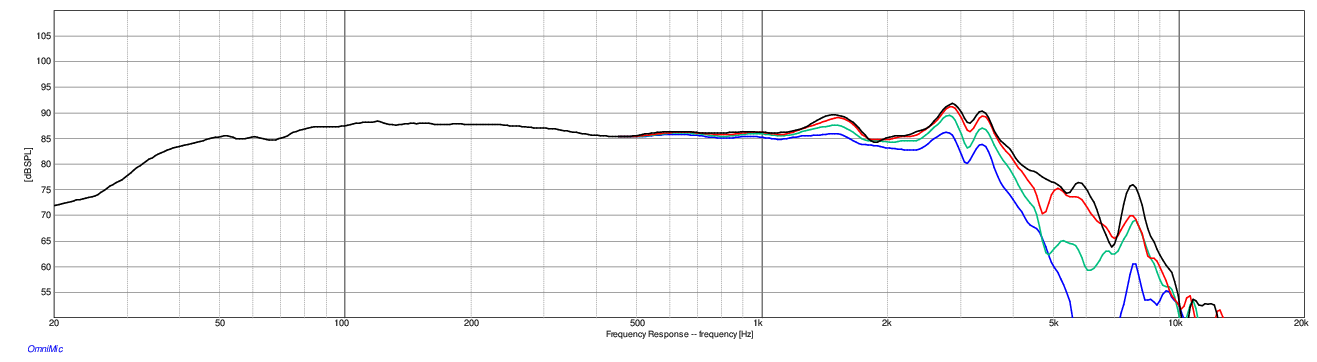

  • frequency range = 30-4000 Hz
  • resonance frequency fs = 30,3 Hz

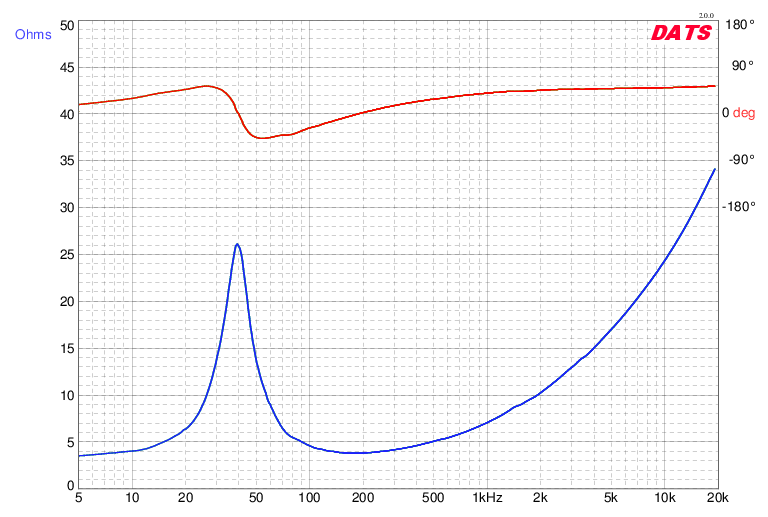

  • impedance R = 4 Ohm
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 6,31 N/A
  • voice coil inductance L = 1,03 mH
  • effective piston radiating area Sd = 136,8 cm2
  • effective mechanical mass incl. air load mms = 21,6 g
  • equivalent volume of compliance Vas = 33,7 l
  • total Q factor Qts = 0,33 (Qms=2,91, Qes=0,37)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,4 mm

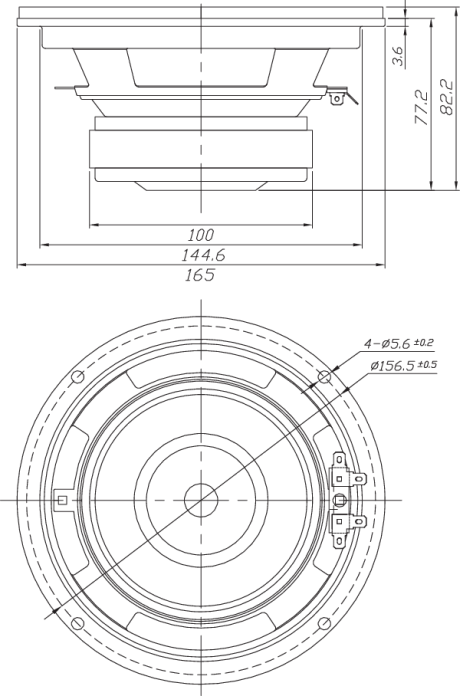

  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 77,2 mm
