Visaton W 100 S 4Ohm

€29.63 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 9020
Visaton W 100 S 4Ohm   10 cm (4") HiFi low-midrange driver with coated paper cone,... more
Product information "Visaton W 100 S 4Ohm"

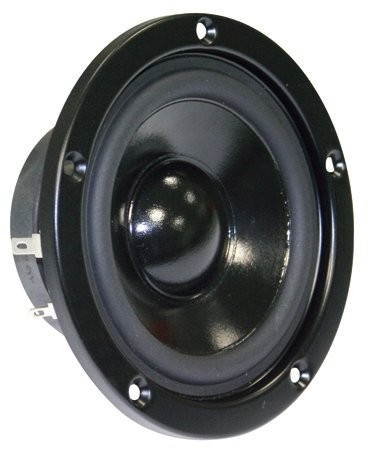

Visaton W 100 S 4Ohm



10 cm (4") HiFi low-midrange driver with coated paper cone, elastic rubber surround and 20 mm voice-coil. Suitable as woofer in mini-speaker systems and due to the very balanced frequency response especially suitable as low-midrange driver in 3-way speakers and in subwoofer/satellite systems.



Specifications

  • power handling (continuous/programme) = 30/50 W

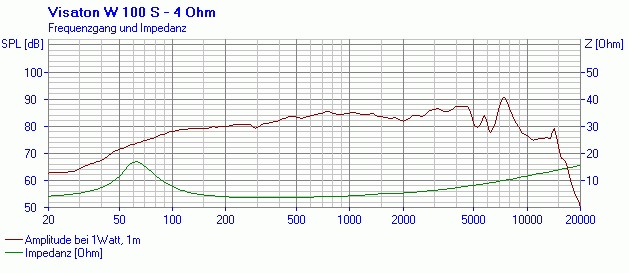

  • frequency range = 70-15000 Hz
  • resonance frequency fs = 66 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,3 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 53 cm2
  • effective mechanical mass incl. air load mms = 4,2 g
  • equivalent volume of compliance Vas = 5,5 l
  • total Q factor Qts = 0,49 (Qms=2,45, Qes=0,61)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm

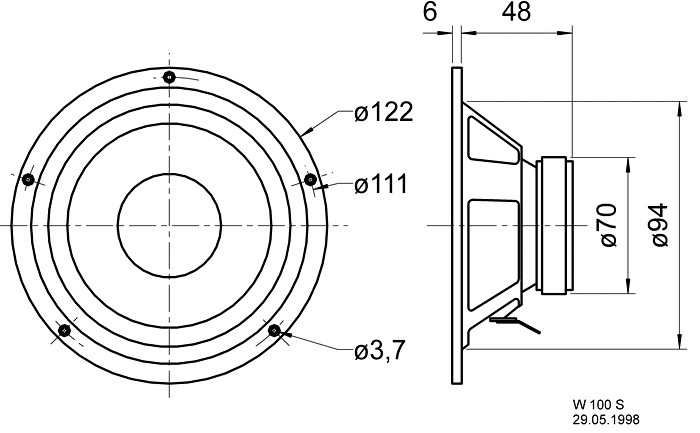

  • mounting diameter d = 94 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 54 mm



Recommended cabinets:

Volume/Principle BR-Channel fb fc/QTC
4 l/closed  -  - 100 Hz/0,7
5 l/bass reflex BR
