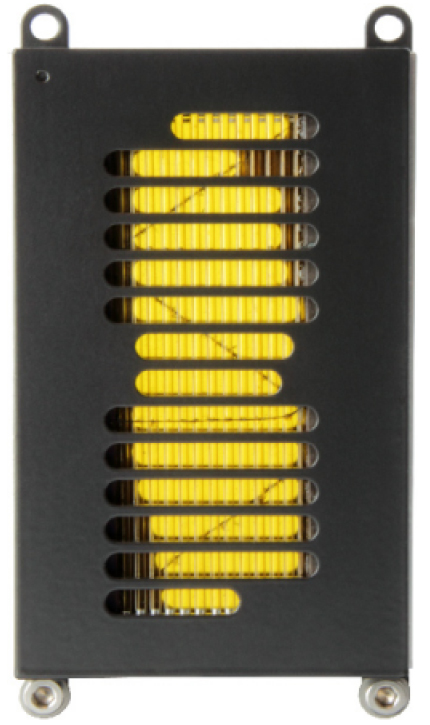

Mundorf AMT25D1.1

Mundorf AMT 25D1.1

Free-standing Dipole. With a resonance linearization network a crossover frequency of 2kHz is possible. With a sensitivity of 93dB this AMT is suitable for tube friends

• No baffle required
• Very flat frequency response
• Swing-out behaviour optimized for dipole use

Specifications

• power handling (continuous/programme) = 135 W
• frequency range = 1100-30000 Hz
• resonance frequency fs = 1250 Hz
• impedance R = 6 Ohm

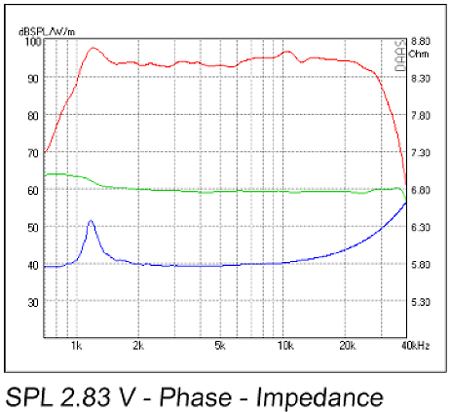

• sound pressure level SPL = 92 dB (2,83V; 1m)
• DC resistance Re = 5,6 Ohm
• effective piston radiating area Sd = 646,4 cm²

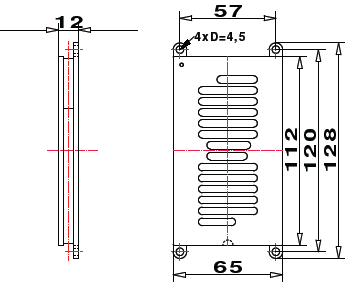

• overall diameter d = 65x128 mm
