Eton 4-212/C8/25 Hex

€143.64 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381322
4“ Bass-Midrange driver with midrange preference,3-layer Hexacone Sandwichcone, fast and... more
Product information "Eton 4-212/C8/25 Hex"

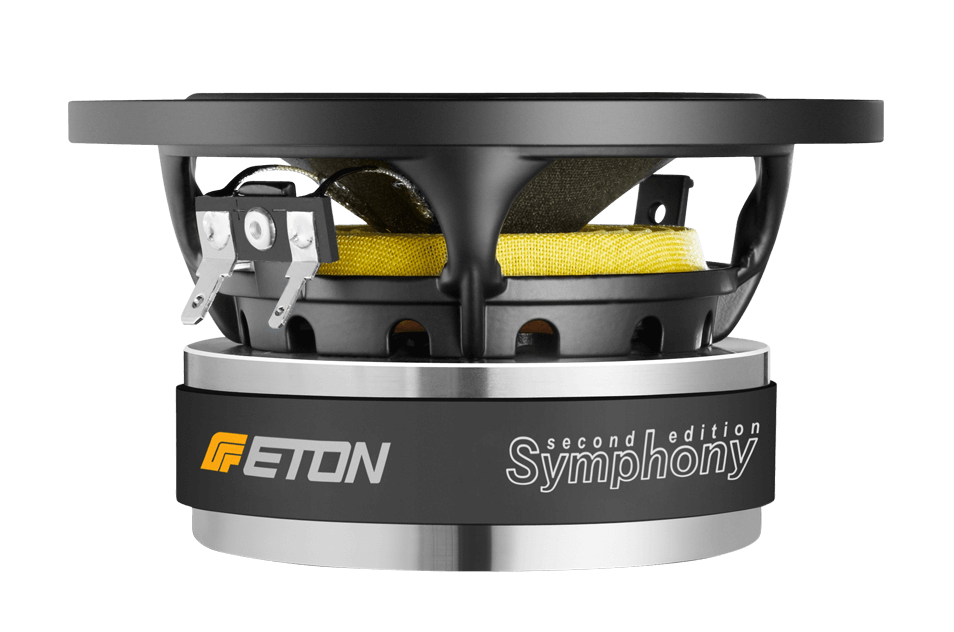

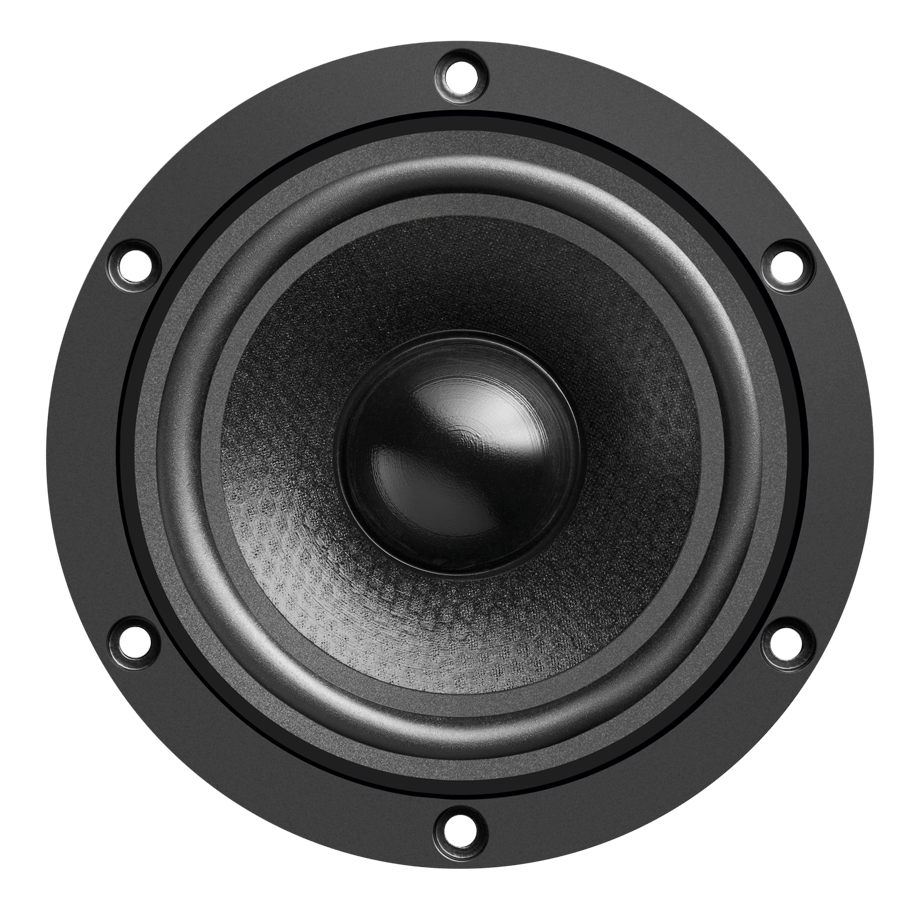

4“ Bass-Midrange driver with midrange preference,3-layer Hexacone Sandwichcone, fast and detailed reproduction, authentic staging, uncolored sound performance.



Specifications

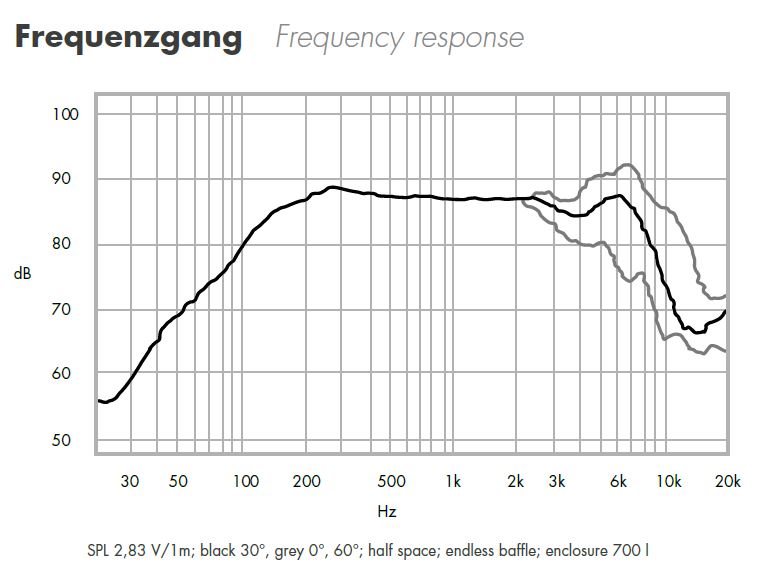

  • frequency range = 100-5400 Hz
  • resonance frequency fs = 57 Hz

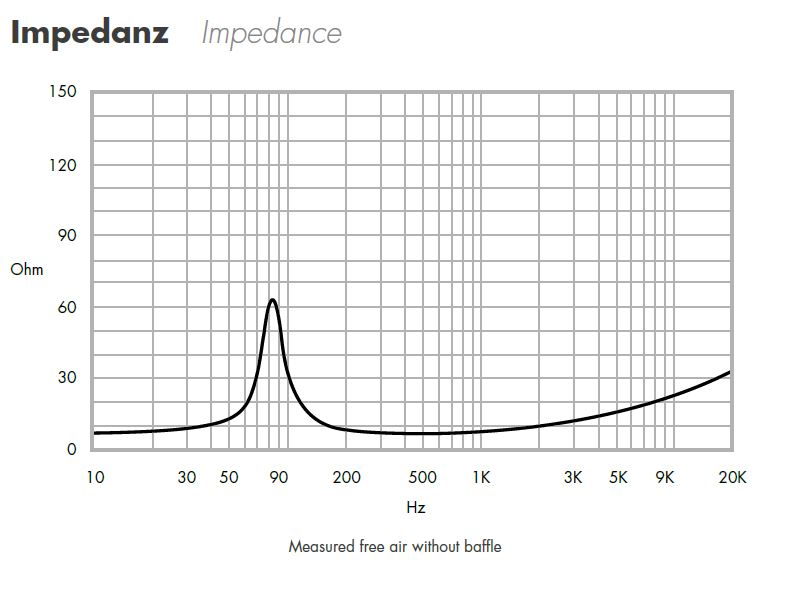

  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 5,8 N/A
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 6,2 g
  • equivalent volume of compliance Vas = 3,6 l
  • total Q factor Qts = 0,39 (Qms=5,09, Qes=0,43)
  • voice coil diameter = 25 mm

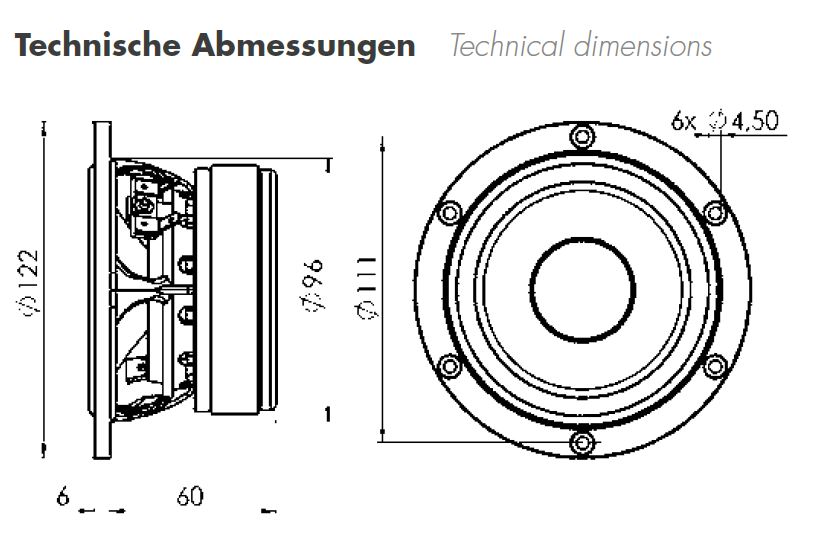

  • mounting diameter d = 96 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 60 mm
