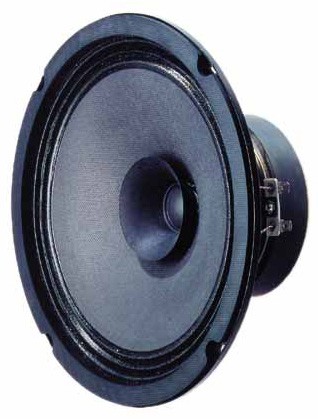

Visaton BG 20 8 Ohm

€30.35 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 3020
Visaton BG 20 8 Ohm   20 cm (8") full-range speaker with tweeter dome. High... more
Product information "Visaton BG 20 8 Ohm"

Visaton BG 20 8 Ohm



20 cm (8") full-range speaker with tweeter dome. High efficiency. Suitable for full-range units as vocal or guitar monitors or as a mid-range unit for full-scale or musicians' PA systems.

Typical applications:
- Midrange unit for full scale or musicians' PA systems
- Vocal or guitar monitors
- Fullrange speaker for electronic organs and keyboards

Specifications

  • power handling (continuous/programme) = 40/70 W

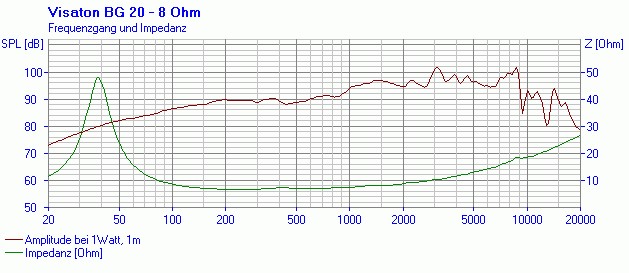

  • frequency range = 40-18000 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 6,12 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 121 l
  • total Q factor Qts = 0,32 (Qms=1,6, Qes=0,4)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm

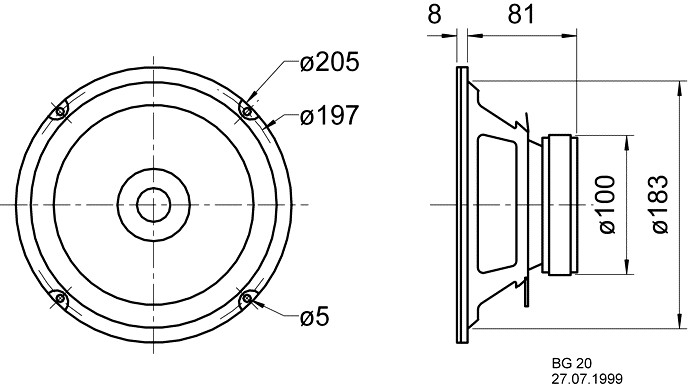

  • mounting diameter d = 183 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 82 mm
