Wavecor WF152BD09

€175.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • wf152bd09
Wavecor WF152BD09 Kevlar/Carbon 4 Ohm   The 6” transducers WF152BD09 (4 ohm) and... more
Product information "Wavecor WF152BD09"

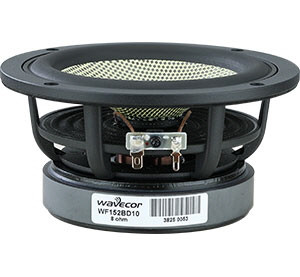

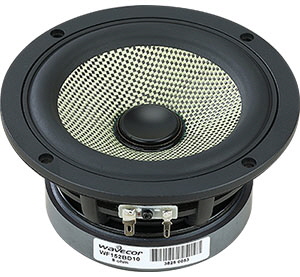

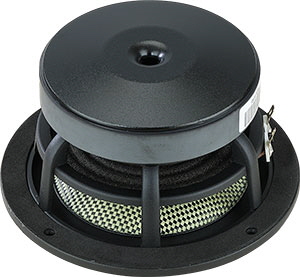

Wavecor WF152BD09 Kevlar/Carbon 4 Ohm



The 6” transducers WF152BD09 (4 ohm) and WF152BD10 (8 ohm) were designed as high performance bass and midrange units for very compact monitors and high-end hi-fi speakers.



FEATURES

  • New cone of interwoven Kevlar/Carbon fibers, a new reference for the combination of low mass, rigidness, and damping - highly beneficial properties for midrange reproduction

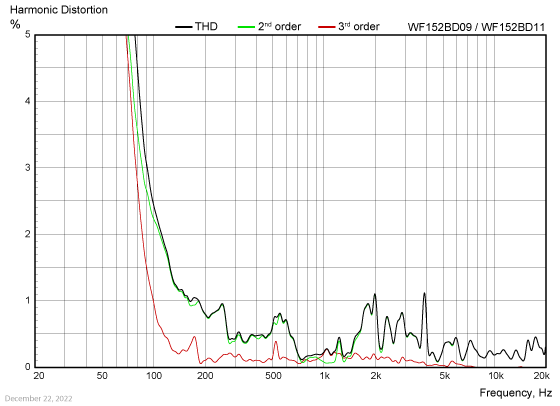

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Vented, inverted center dome for reduced compression
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 1.25” voice coil diameter for better control and power handling
  • Built-in alu field-stabilizing ring for reduced distortion at high levels
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection



SPECIFICATIONS

  • power handling (continuous/programme) = 70 W
  • frequency range = 50-10000 Hz
  • resonance frequency fs = 49 Hz

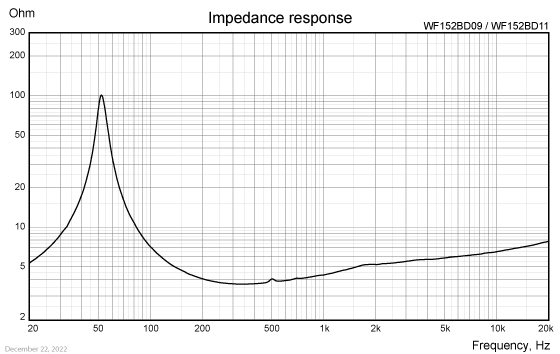

  • impedance R = 4 Ohm

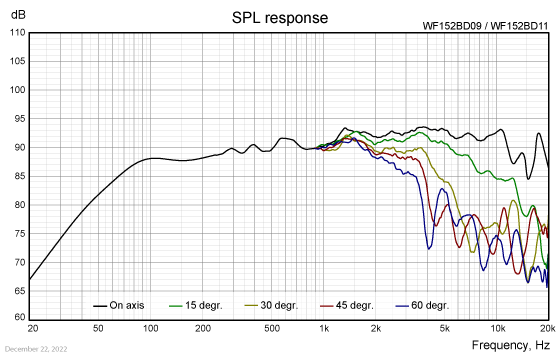

  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 5,8 N/A
  • effective piston radiating area Sd = 85 cm2
  • effective mechanical mass incl. air load mms = 11 g
  • equivalent volume of compliance Vas = 9,6 l
  • total Q factor Qts = 0,32 (Qms=10,5, Qes=0,33)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm

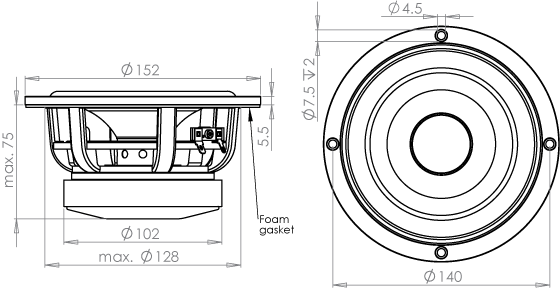

  • mounting diameter d = 128 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 75 mm
  • mass m = 1,7 kg
