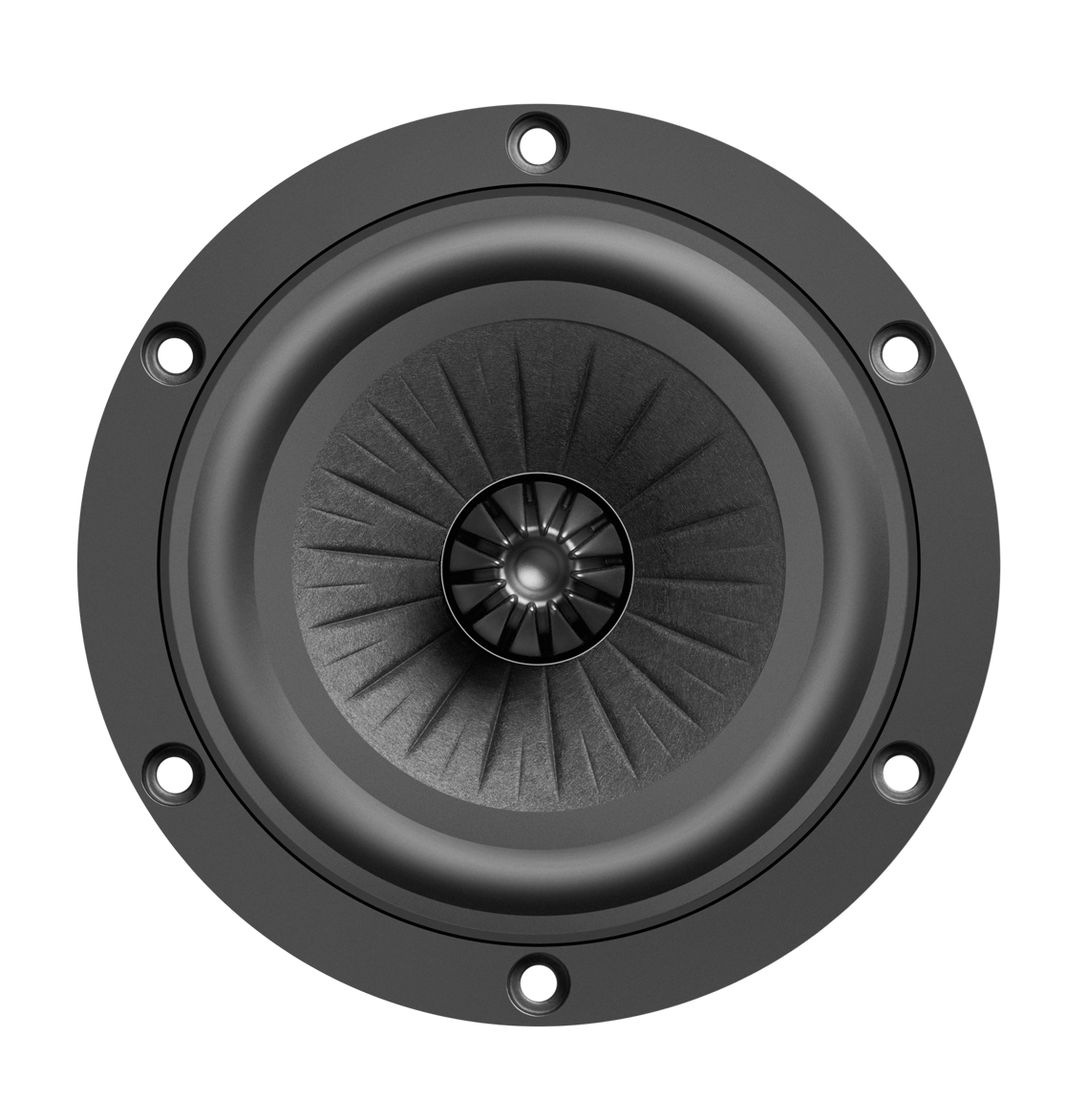

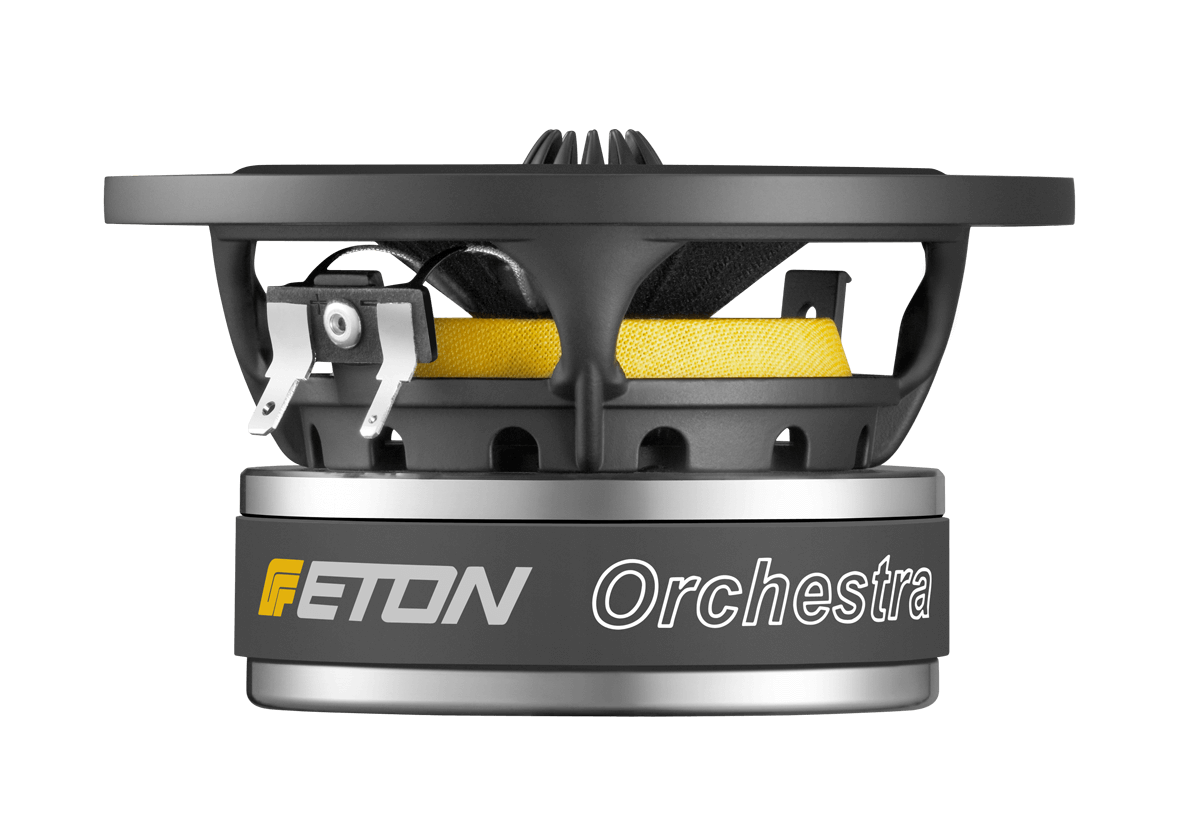

Eton 4-512/C8/25 RP

€95.76 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1381371
4“ bass-midrange driver for multiple usage, serrated paper membrane geometry, noncommitted sound... more
Product information "Eton 4-512/C8/25 RP"

4“ bass-midrange driver for multiple usage, serrated paper membrane geometry, noncommitted sound character with harmonic, warm midrange and a solid bassrange, open reproduction with phase plug.



Specifications

  • power handling (continuous/programme) = 40 W
  • frequency range = 80-5000 Hz
  • resonance frequency fs = 78 Hz
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • impedance R = 8 Ohm
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 6,0 N/A
  • voice coil inductance L = 0,35 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,5 g
  • equivalent volume of compliance Vas = 3,7 l
  • total Q factor Qts = 0,32 (Qms=6,65, Qes=0,34)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 96 mm
  • overall diameter d = 122 mm
  • mounting depth (not countersunk) t = 60 mm
