Visaton DTW 72 14 mm (0.6") polycarbonate dome driver for the highrange above 4000... more
Product information "Visaton DTW 72"

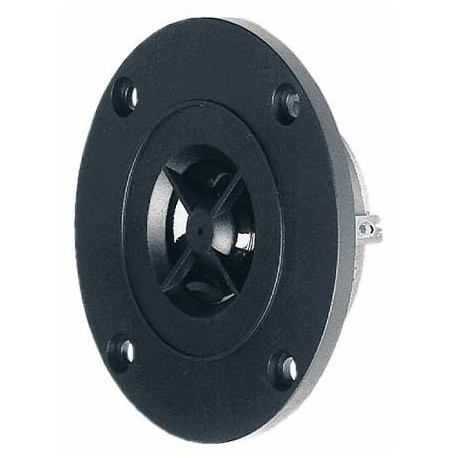

Visaton DTW 72
14 mm (0.6") polycarbonate dome driver for the highrange above 4000 Hz. Balanced frequency response and excellent omnidirectional sound distribution. Due to the strong magnetic drive and the ultra-light dome in conjunction with the ferrofluid-cooled voice-coil good efficiency and high power handling.
- power handling (continuous/programme) = 70/110 W

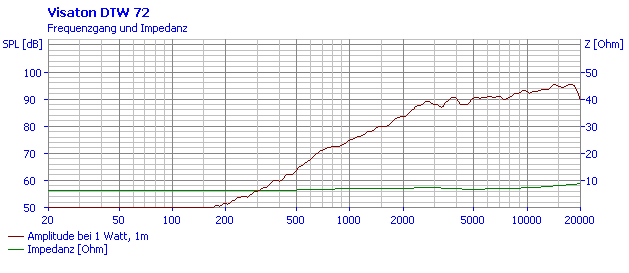

- frequency range = 2200-23000 Hz
- resonance frequency fs = 3000 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 91 dB (2,83V; 1m)
- voice coil diameter = 14 mm

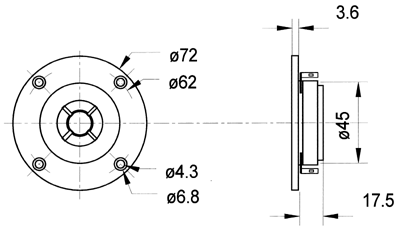

- mounting diameter d = 50 mm
- overall diameter d = 72 mm
- mounting depth (not countersunk) t = 17,5 mm
