Scan-Speak R2604/8330.00 1" Ring Radiator Tweeter The dual magnet version of the ring dome... more
Product information "Scan-Speak R2604/8330.00"

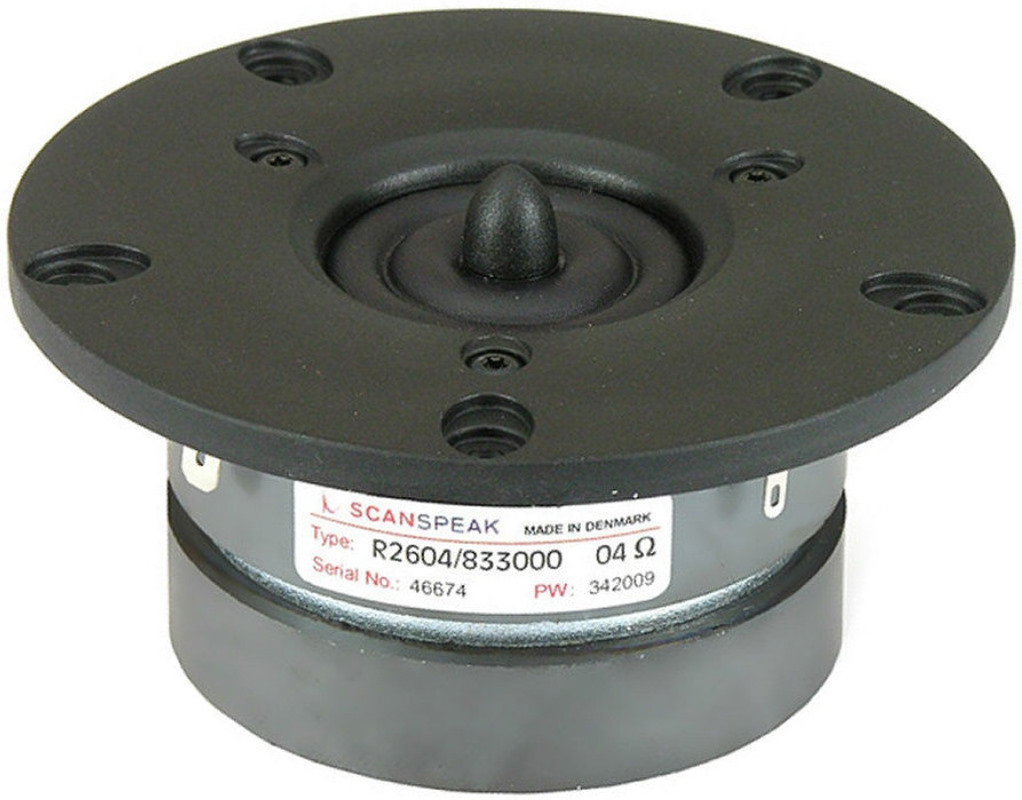

Scan-Speak R2604/8330.00 1" Ring Radiator Tweeter

The dual magnet version of the ring dome tweeter provides extra magnetic energy to increase the sensitivity and to extend the frequency response to above 40kHz.  The additional volume from the second magnet also increases the size of the chamber, lowering the resonance frequency.   This tweeter is an excellent choice for any high end home or automotive system.

  • Dual Ring Radiator Diaphragm (Patented)
  • Wave-guide center plug (Patented)
  • Extended frequency to above 40kHz
  • High Sensitivity - 92dB
  • Low Resonance Frequency - 630Hz.
  • Low Distortion
  • Double Magnet
  • Rear Chamber
  • Copper Clad Alu-wire



Specifications

  • power handling (continuous/programme) = 100 W

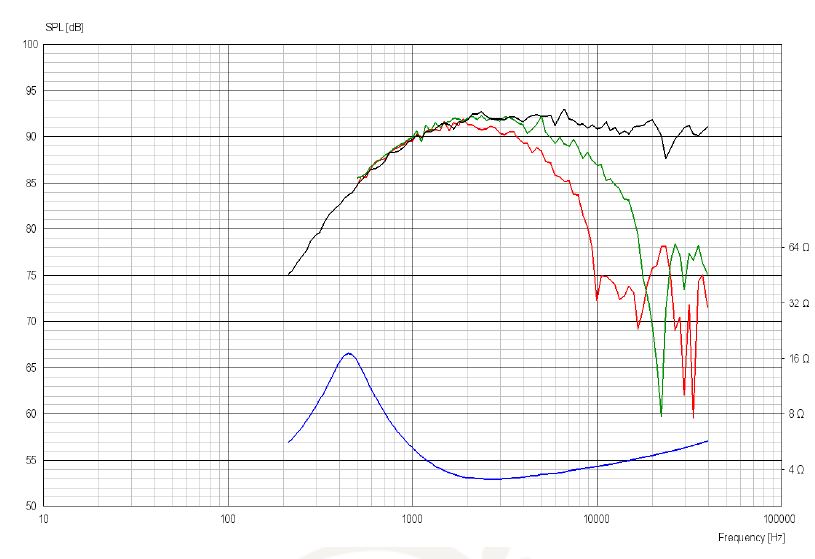

  • frequency range = 1000-38000 Hz
  • resonance frequency fs = 440 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 2,9 Ohm
  • force factor BL = 2,3 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 5,4 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 0,38 (Qms=2,18, Qes=0,46)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm

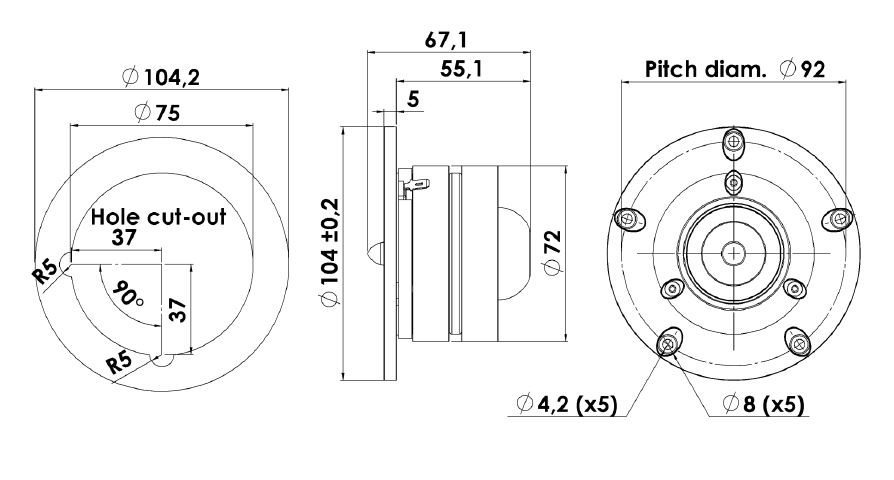

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 60,1 mm
