Tangband W4-1658SB

€105.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW4-1658sb
The W4-1658SB features a polypropylene cone, rubber surround, long throw 2` voice coil, and... more
Product information "Tangband W4-1658SB"

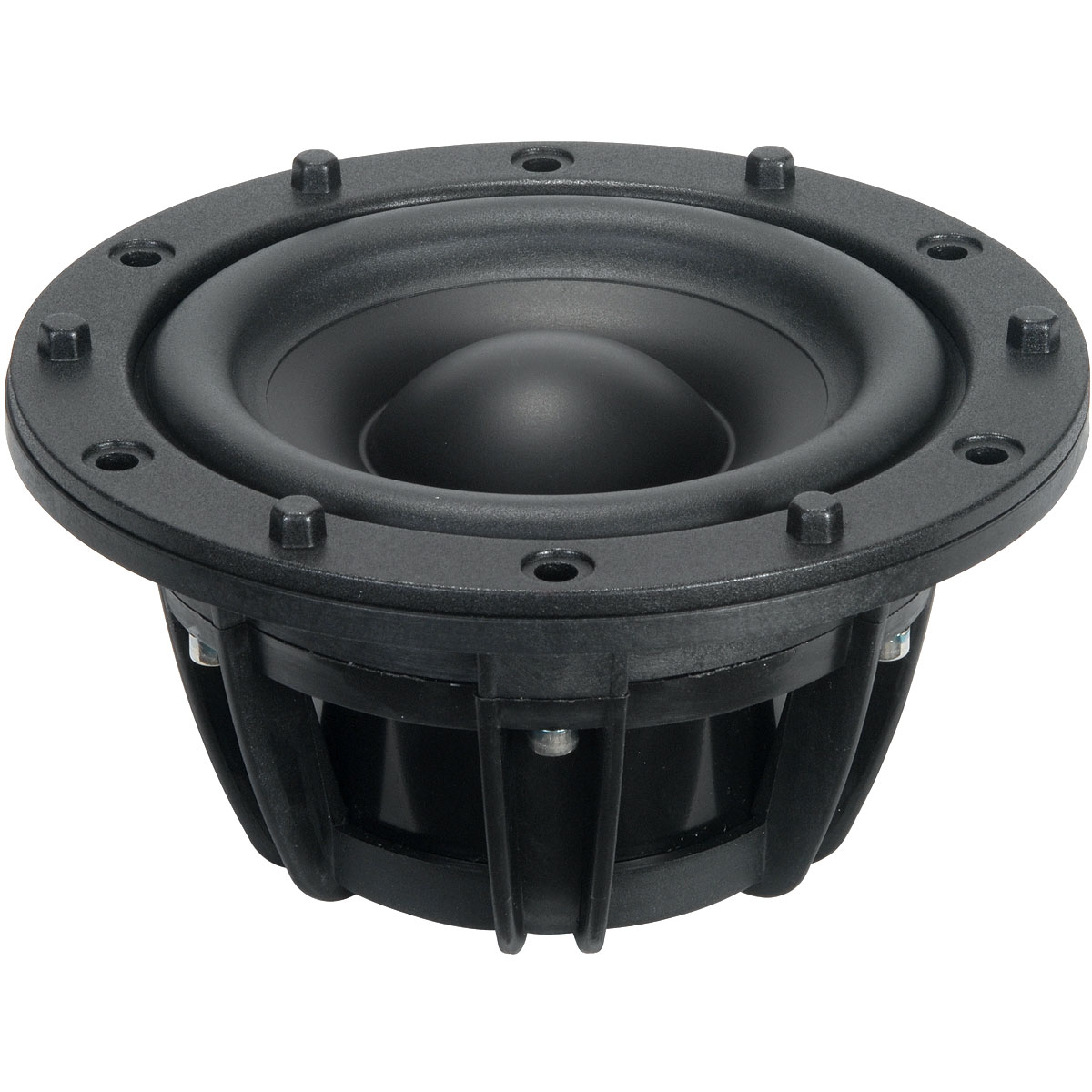

The W4-1658SB features a polypropylene cone, rubber surround, long throw 2` voice coil, and shielded neodymium magnet, all housed in a durable plastic frame. Smooth, extended response, including a surprising amount of bass output.



Specifications:

  • power handling (continuous/programme) = 45/90 W
  • frequency range = 55-6000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 3,8 Ohm
  • force factor BL = 5,62 N/A
  • voice coil inductance L = 0,144 mH
  • effective piston radiating area Sd = 78,5 cm2
  • effective mechanical mass incl. air load mms = 9,98 g
  • equivalent volume of compliance Vas = 7,42 l
  • total Q factor Qts = 0,39 (Qms=8,84, Qes=0,41)
  • voice coil diameter = 49,5 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm

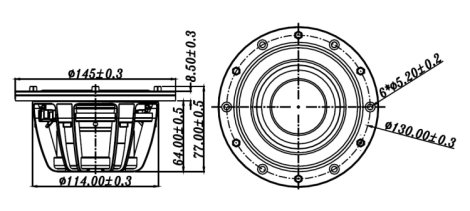

  • mounting diameter d = 114 mm
  • mounting depth (not countersunk) t = 72,5 mm
