Wavecor WF090WA02

€68.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • wf090wa02
Wavecor WF090WA02 3½" paper cone mid/woofer 8 Ohm   The 3½" transducers WF090WA01 (4... more
Product information "Wavecor WF090WA02"

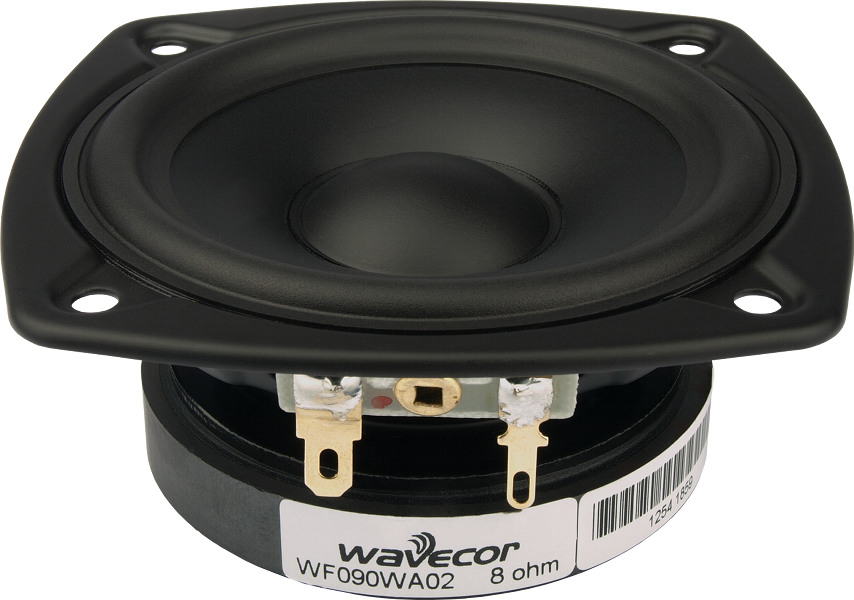

Wavecor WF090WA02 3½" paper cone mid/woofer 8 Ohm


The 3½" transducers WF090WA01 (4 ohm) and WF090WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where small size is required while still obtaining sound reproduction without compromises.



  • Vented voice coil former for reduced distortion and compression
  • Vented chassis for lower air flow speed reducing audible distortion
  • Voice coil wound with Copper Clad Aluminium Wire for higher efficiency and better dynamics
  • Heavy-duty black fiber glass voice coil bobbin to increase power handling and reduce mechanical losses resulting in better dynamic performance and low-level details
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black magnet parts for better heat transfer to increase power handling
  • Progressive suspension with specially designed CONEX damper (spider) for long durability under extreme operating conditions
  • Gold plated terminals to prevent oxidation for long-term reliable connection
  • Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing



  • frequency range = 100-12000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 84 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 3,5 N/A
  • effective piston radiating area Sd = 36 cm2
  • effective mechanical mass incl. air load mms = 3,35 g
  • equivalent volume of compliance Vas = 1,14 l
  • total Q factor Qts = 0,89 (Qms=6, Qes=1,04)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2,75 mm

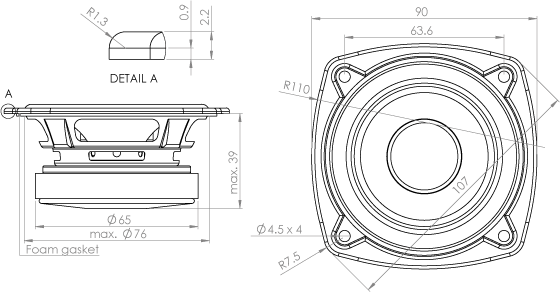

  • mounting diameter d = 76 mm
  • overall diameter d = 90 mm
  • mounting depth (not countersunk) t = 42,2 mm
