Seas 22TAF/G H1283-06

€43.76 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1381029
Seas 22TAF/G H1283-06 is a High Definition metal dome tweeter with wide, coated fabric... more
Product information "Seas 22TAF/G H1283-06"

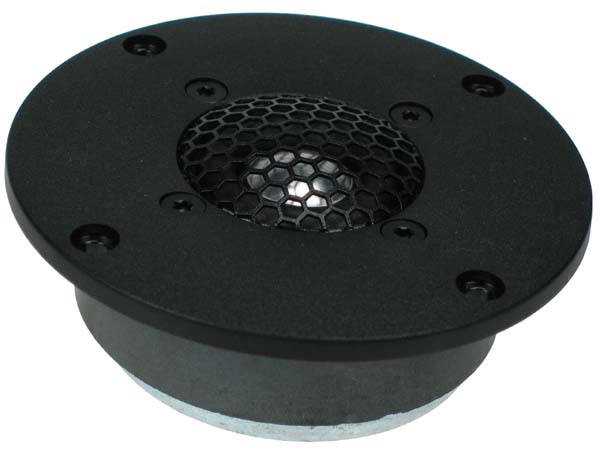

Seas 22TAF/G H1283-06 is a High Definition metal dome tweeter with wide, coated fabric surround and combine the high frequency behaviour of a ¾” dome with the low frequency characteristics of a 1” dome.

Aluminium/magnesium dome for low mass and high rigidity and stability. Protected by an acoustically open Hexagrid. Precoated Sonomex surround gives low resonance frequency, high consistency and excellent stability against variations in air humidity. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet gives high efficiency.



Specifications

  • power handling (continuous/programme) = 80/180 W

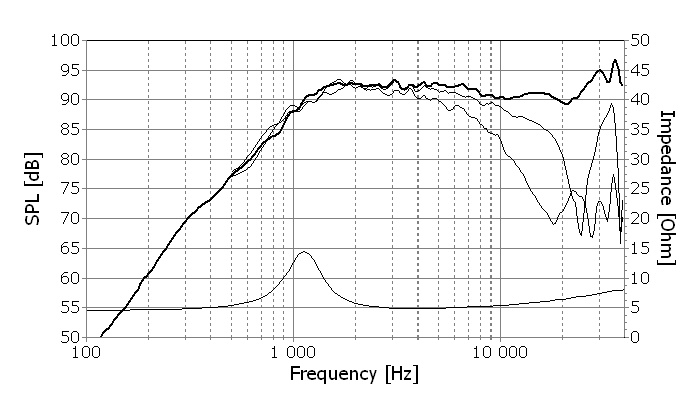

  • frequency range = 2500-30000 Hz
  • resonance frequency fs = 1100 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 5,9 cm2
  • effective mechanical mass incl. air load mms = 0,23 g
  • voice coil diameter = 19,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm

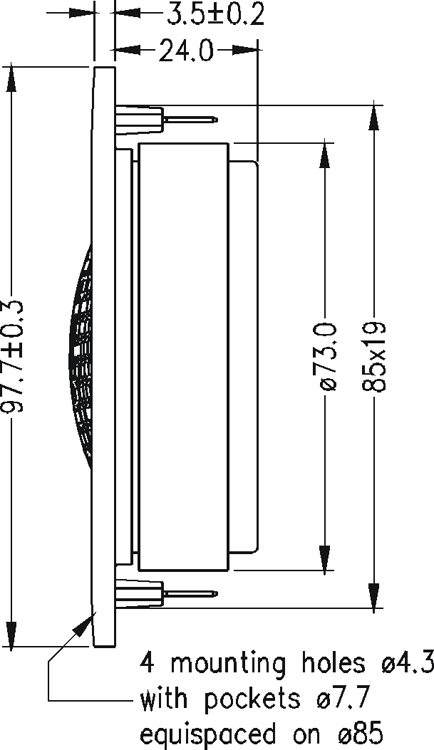

  • mounting diameter d = 85 mm
  • overall diameter d = 97,7 mm
  • mounting depth (not countersunk) t = 24 mm
