Seas MR18REX/XF H1699-08/06

€181.87 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • SW10110
The Seas MR18REX/XF H1699-08/06 is a midrange coaxial loudspeaker providing high quality sound... more
Product information "Seas MR18REX/XF H1699-08/06"

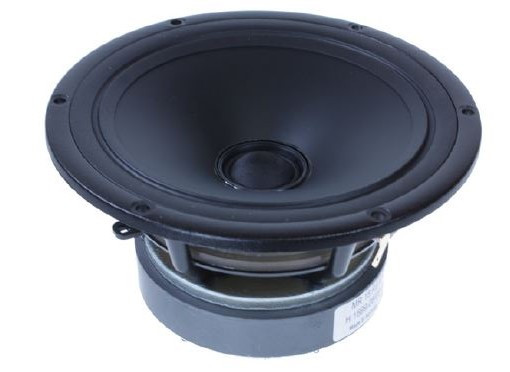

The Seas MR18REX/XF H1699-08/06 is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.

The coaxially arranged precoated fabric dome high frequency unit has a smooth frequency response, and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.

The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range.



The completely new rubber surround reduces resonances and prevents surround break up in the midrange band. The surround’s small inverted roll, combined with a profi le that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output.
