Peerless SLS-5¼"

€48.45 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 830945
The Peerless SLS-5¼" 830945 combines high quality performance with an affordable design. This... more
Product information "Peerless SLS-5¼""

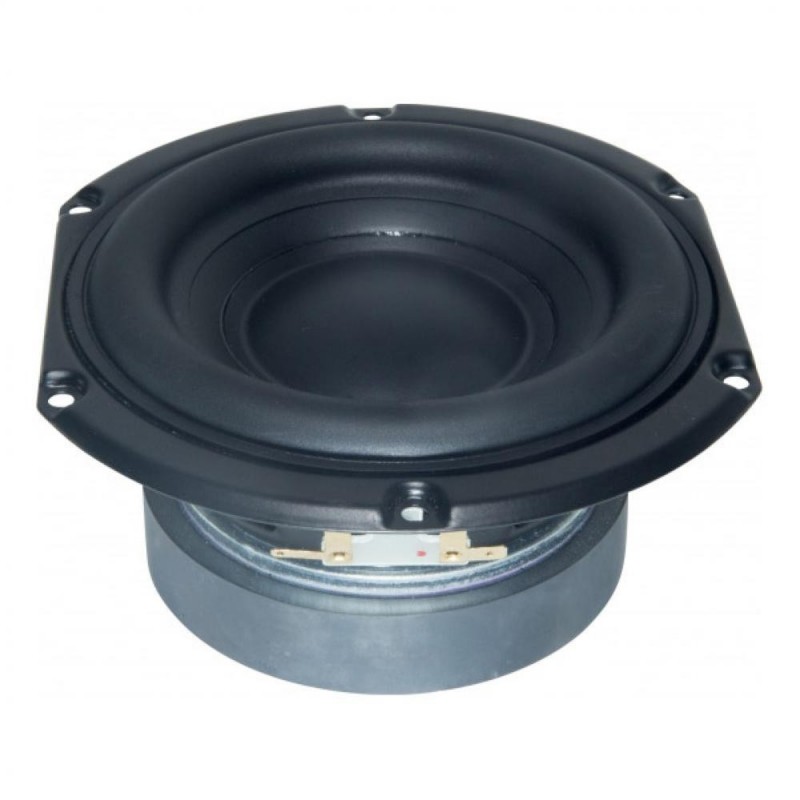

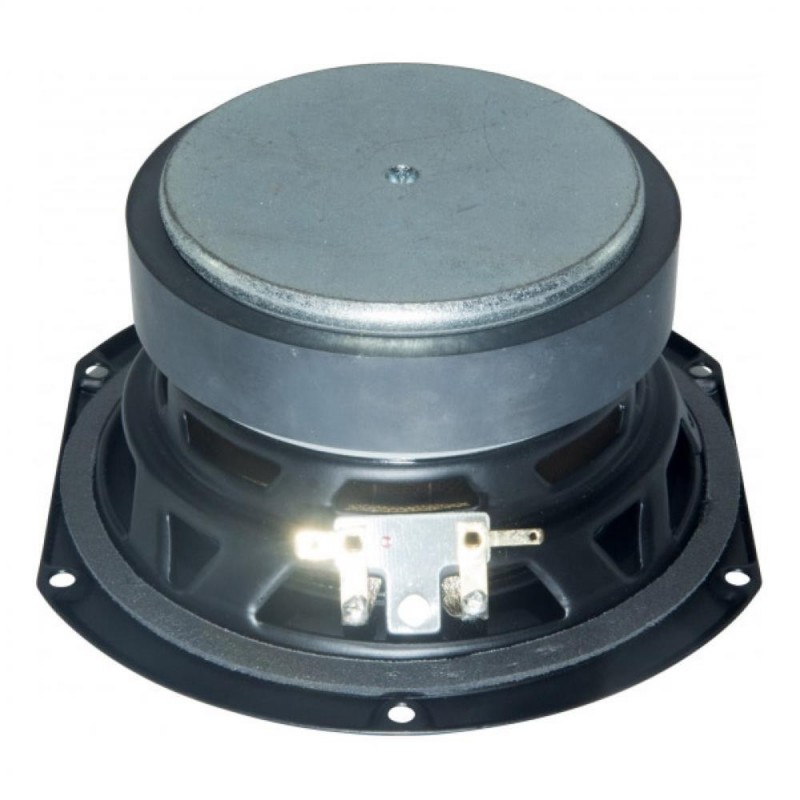

The Peerless SLS-5¼" 830945 combines high quality performance with an affordable design. This 5.25 inch 4 ohm member of the SLS family features a rigid steel basket, a paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.



Specifications

Transducer Size     5.25 in
DC Resistance     2.71 Ω ±5.0%
Resonant Frequency     51.49 Hz 15%
Half Space Sensitivity @ 2.83V     88.36 dB ±1.01
Sensitivity @ 1W/1m     84.7 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     50 W
Test Spectrum Bandwidth     20Hz - 20kHz 12 dB/Oct
Effective Piston Area     83.3 cm2
Moving Mass     15.9 g
Motor Force Factor     5.9 T•m
Voice Coil Inner Diameter     32.42 mm
Gap Height     6 mm
Maximum Linear Excursion     5 mm
Ferrofluid Type
Minimum Impedance     3.44 Ω ±7.5%
Voice Coil Inductance     0.2 mH
Mechanical Q Factor     3.95
Electrical Q Factor     0.4
Total Q Factor     0.36
Ratio     141.84 fs/Qts
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     601.9 μm/N
Effective Cone Diameter     10.3 cm
Motor Efficiency Factor     12.9 (T•m2)/Ω
Voice Coil Former Material     ASV GSV
Transducer Mass     1.48 Kg
Equivalent Volume     5.87 L
