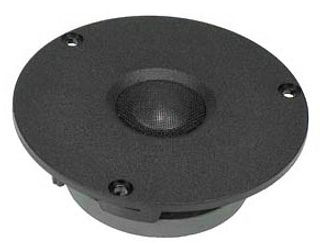

Seas 19TAFD/G H0532-08

€42.05 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 1381041
Seas 19TAFD/G H0532-08 19mm High Fidelity dome tweeter with smooth, extended frequency... more
Product information "Seas 19TAFD/G H0532-08"

Seas 19TAFD/G H0532-08 19mm High Fidelity dome tweeter with smooth, extended frequency
response. Aluminium diaphragm suspended by a specially designed soft Sonotex surround
which allows a low fundamental frequency.

Double magnet reduces stray fields around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity.

Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.

Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.



Specifications

  • power handling (continuous/programme) = 90/220 W

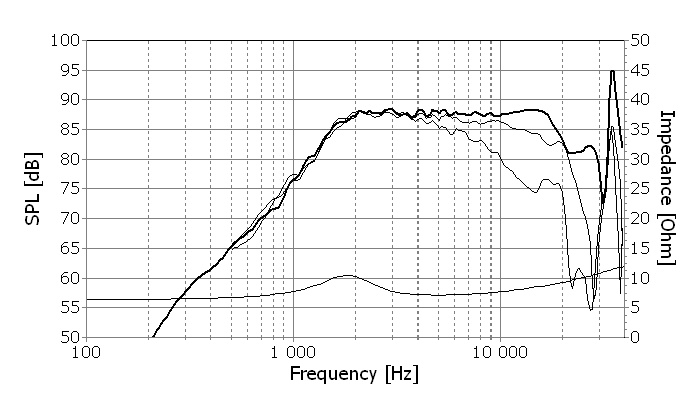

  • frequency range = 4000-20000 Hz
  • resonance frequency fs = 1700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,2 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 4 cm2
  • effective mechanical mass incl. air load mms = 0,23 g
  • voice coil diameter = 19,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,75 mm

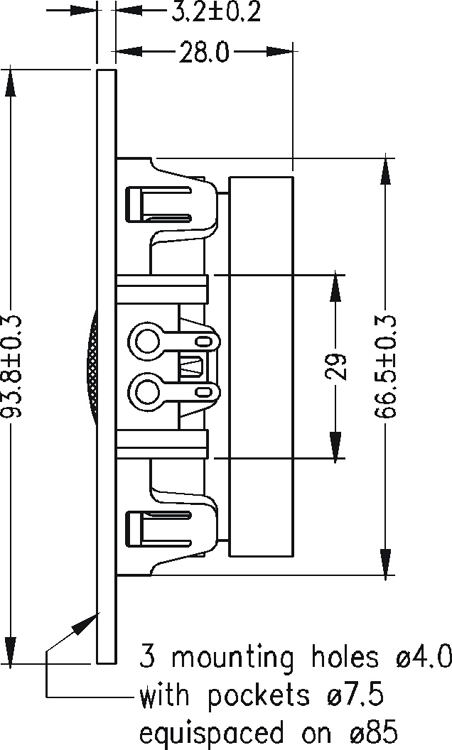

  • mounting diameter d = 66,5 mm
  • overall diameter d = 93,8 mm
  • mounting depth (not countersunk) t = 28 mm
