Product information "Scan-Speak 12M/4631G00"

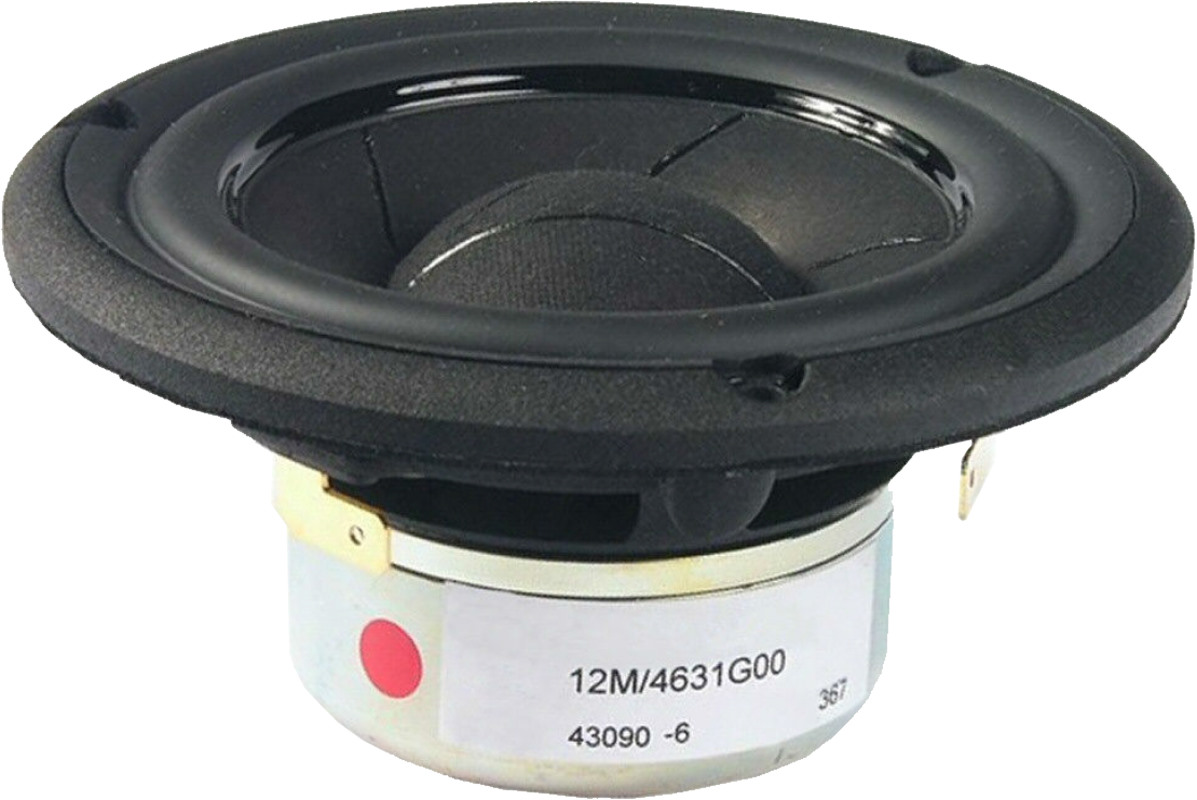

The 12M/4631G00 is a Revelator driver using the “slit cone" technology. Some of the slits are used to control cone resonance and the other set of slits add rigidity. This speaker also has the new dynamic linear suspension for lower compression and higher linearity. Every facet of this driver is designed to reduce resonance in all structures. A neodymium magnet has been chosen to reduce the depth, yet increase the magnetic energy. The short field length of a neodymium magnet also allows this driver to by used for A/V.
Specifications
- power handling (continuous/programme) = 40 W

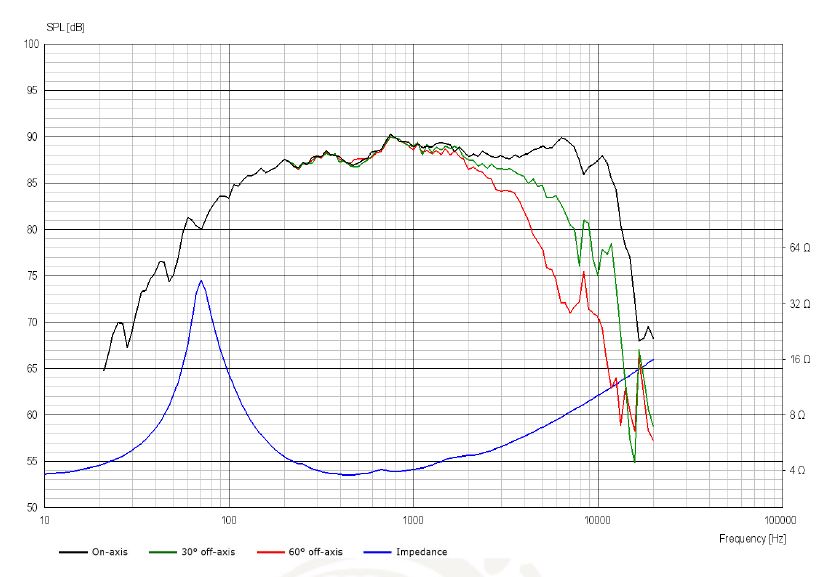

- frequency range = 75-8000 Hz
- resonance frequency fs = 75 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 89 dB (2,83V; 1m)
- DC resistance Re = 3,2 Ohm
- force factor BL = 5,3 N/A
- voice coil inductance L = 0,22 mH
- effective piston radiating area Sd = 49 cm2
- effective mechanical mass incl. air load mms = 6,5 g
- equivalent volume of compliance Vas = 2,3 l
- total Q factor Qts = 0,33 (Qms=5,57, Qes=0,35)
- voice coil diameter = 38 mm
- maximum peak linear excursion vibration xlin = +/- 3 mm

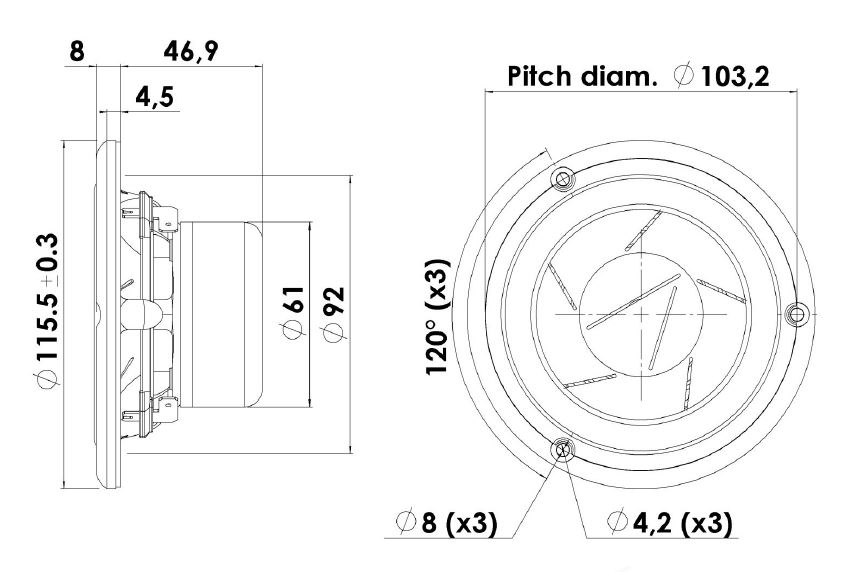

- mounting diameter d = 92 mm
- overall diameter d = 115,5 mm
- mounting depth (not countersunk) t = 51,4 mm
