Dayton Audio DC160-8

€40.22 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • da-dc160-8
Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement... more
Product information "Dayton Audio DC160-8"

Choose the Dayton Audio DC160-8 Classic Series 6-1/2" woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160-8 as a small subwoofer! The excellent low frequency performance will amaze you.



Specifications

  • power handling (continuous/programme) = 50 W

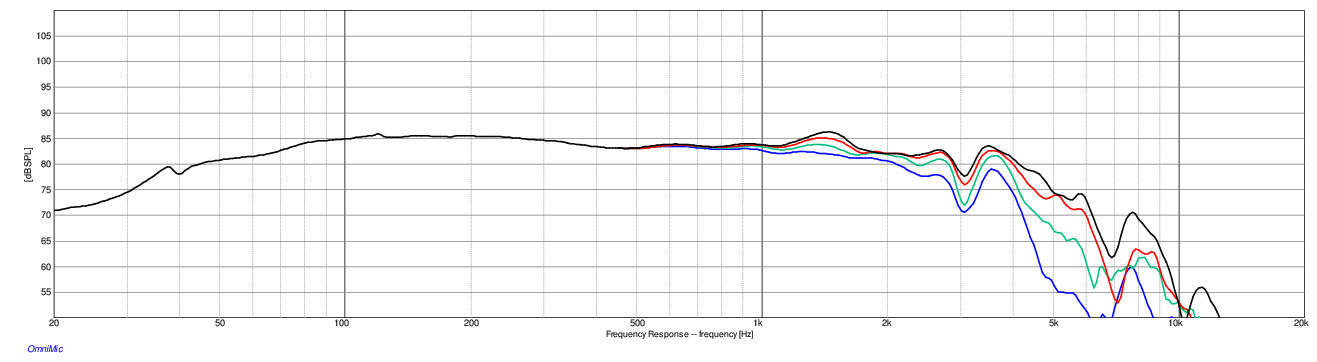

  • frequency range = 30-4000 Hz
  • resonance frequency fs = 34,3 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 6,7 Ohm
  • force factor BL = 9,47 N/A
  • voice coil inductance L = 2,34 mH
  • effective piston radiating area Sd = 134,8 cm2
  • effective mechanical mass incl. air load mms = 22,42 g
  • equivalent volume of compliance Vas = 24,5 l
  • total Q factor Qts = 0,33 (Qms=3,47, Qes=0,36)
  • voice coil diameter = 35,5 mm
  • maximum peak linear excursion vibration xlin = +/- 3,4 mm

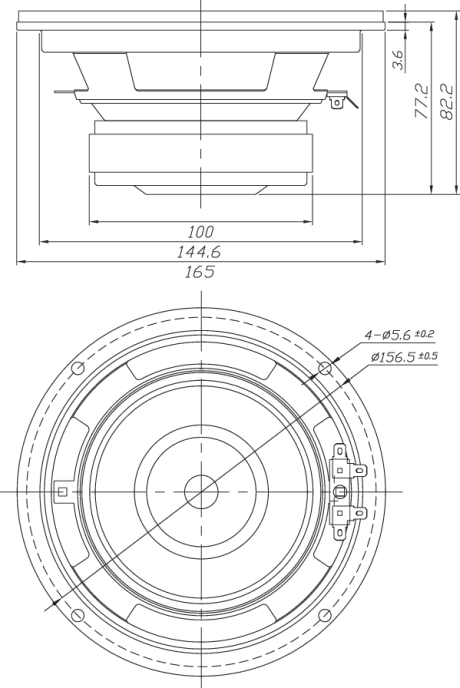

  • mounting diameter d = 144,6 mm
  • overall diameter d = 165 mm
  • mounting depth (not countersunk) t = 77,2 mm
