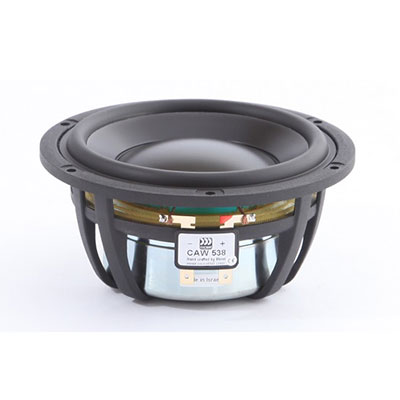

Morel CAW 538

€121.28 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 753076
The Classic Advanced CAW 538 woofer is based on Morel’s classic line - the renowned MW series.... more
Product information "Morel CAW 538"

The Classic Advanced CAW 538 woofer is based on Morel’s classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced Ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest evolution of Morel's MW-144.



Features

  • Uniflow™ aluminum diecast chassis
  • Large 3" Hexatech™ aluminum voice coil
  • High flux ferrite double magnet system
  • Shallow profile DPC cone
  • High power handling

Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 35-3500 Hz
  • resonance frequency fs = 49 Hz

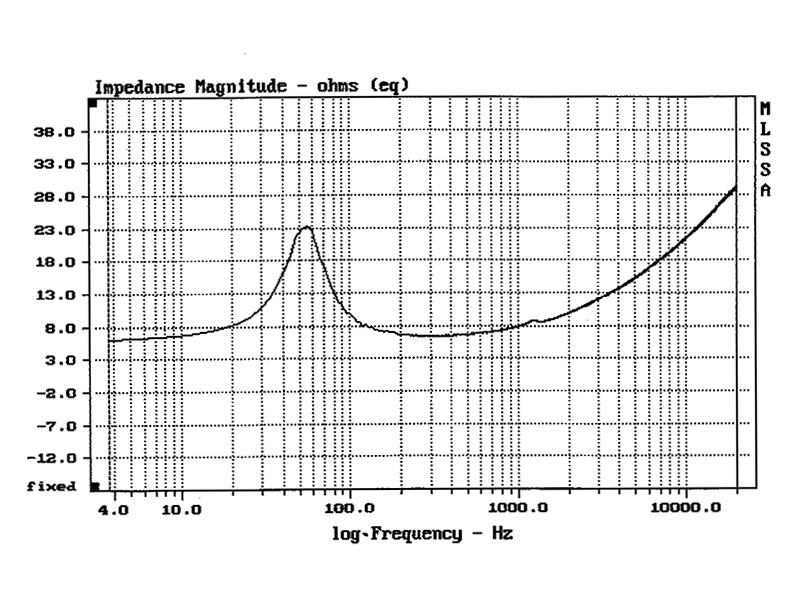

  • impedance R = 8 Ohm

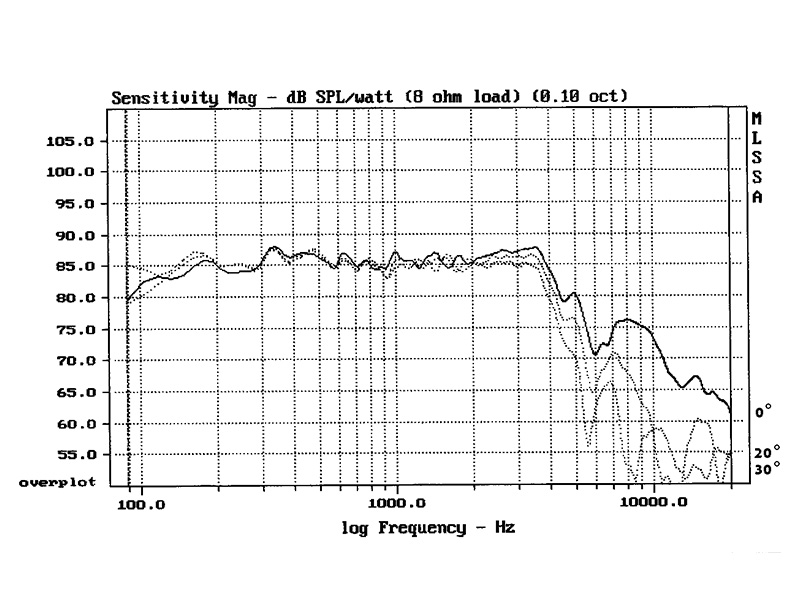

  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 6,9 N/A
  • voice coil inductance L = 0,47 mH
  • effective piston radiating area Sd = 90 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 8,2 l
  • total Q factor Qts = 0,38 (Qms=1,83, Qes=0,48)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 3 mm

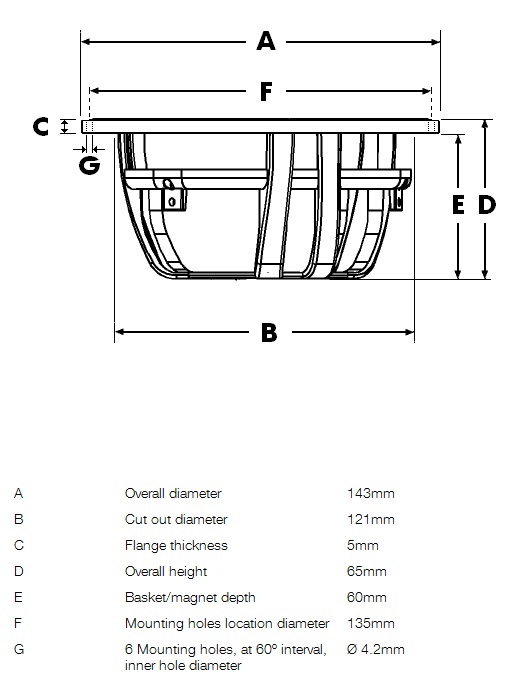

  • mounting diameter d = 121 mm
  • overall diameter d = 143 mm
  • mounting depth (not countersunk) t = 60 mm
