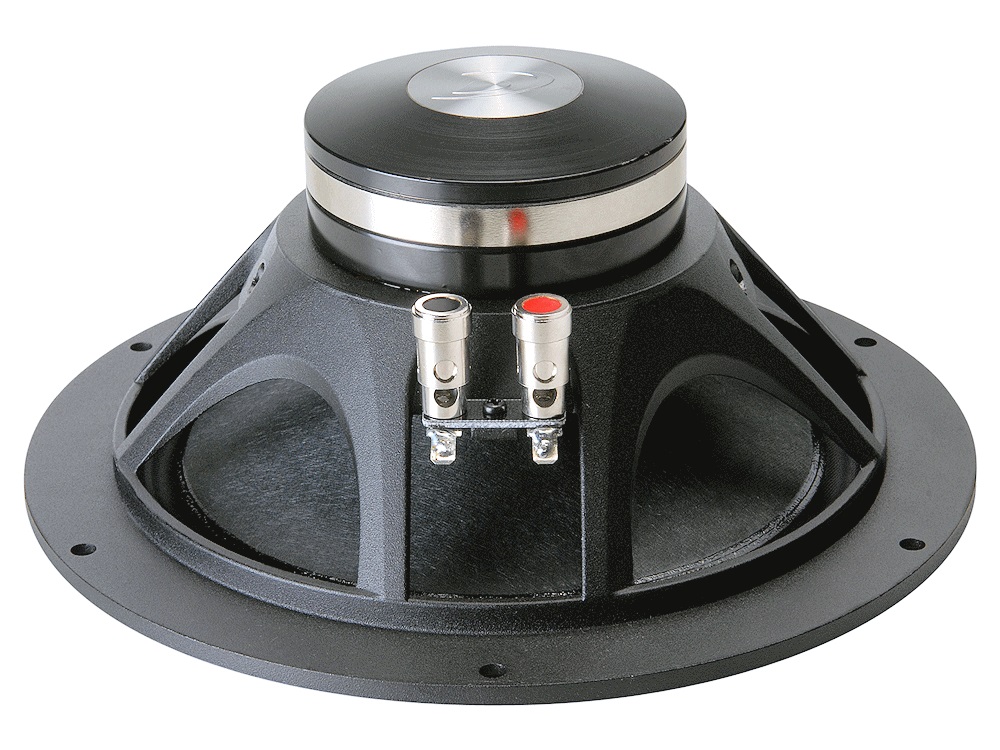

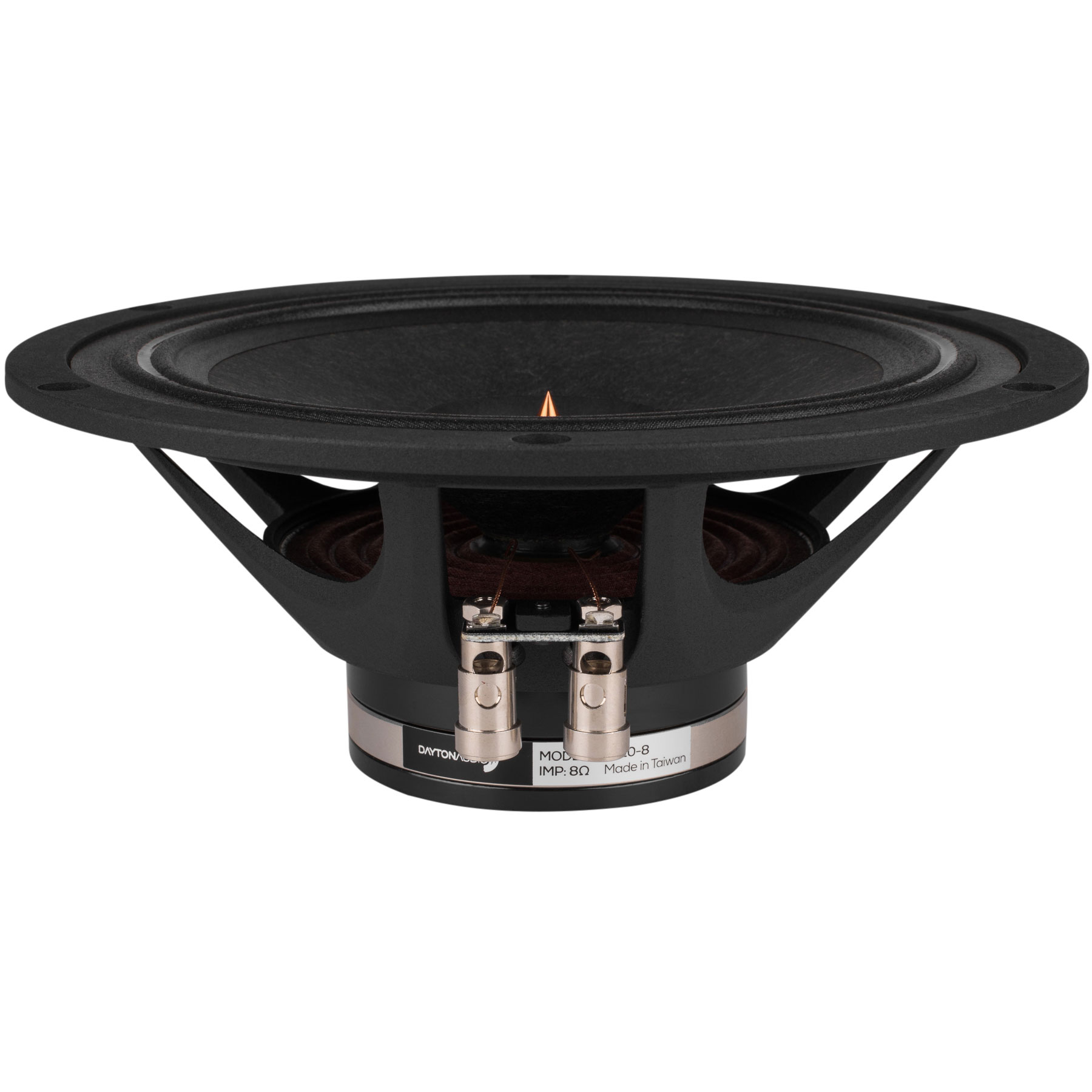

Dayton Audio PS220-8

€201.59 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • da-ps220-8
The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced,... more
Product information "Dayton Audio PS220-8"

The Dayton Audio PS Series drivers do it all: true bass, articulate midrange, and balanced, extended highs. An intensive program of design and testing has yielded full-range speakers that feature high sensitivity and smooth response, both on- and off-axis. Although an ideal match for lower powered Class A and Class T designs, the PS220-8 8" driver's superb resolution and natural sound quality make it a viable option for an even wider variety of applications. The PS Series' audio performance is complemented by the speaker's striking appearance—they look great in dipole and other open back designs, too!



Product Highlights

• High sensitivity/minimal distortion-an ideal match for lower powered amplifiers
• Parasitic HF cone and carefully engineered phase plug extend on- and off-axis response
• Solid bass performance, thanks to usefully high excursion capability (5 mm Xmax)
• Optimized neodymium magnet provides high motor strength
• Low-mass copper clad aluminum voice coil
• Copper cap and copper ring on pole piece reduce inductance and distortion
• Kevlar reinforced paper cone is lightweight yet rigid and well controlled



Specifications

Impedance
8 ohms

Re
6.2 ohms

Le
0.73 mH @ 1 kHz

Fs
46.4 Hz

Qms
5.73

Qes
0.40

Qts
0.38

Mms
8.4g

Cms
1.41 mm/N

Sd
216.4 cm²

Vd
99.6 cm³

BL
6.15 Tm

Vas
90.2 liters

Xmax
4.8 mm

VC Diameter
25.4 mm

SPL
96.5 dB @ 2.83V/1m

RMS Power Handling
40 watts

Usable Frequency Range (Hz)
40 - 25,000 Hz
