Dayton Audio's ND140-8's compact aluminum cone demonstrates the latest advances in... more

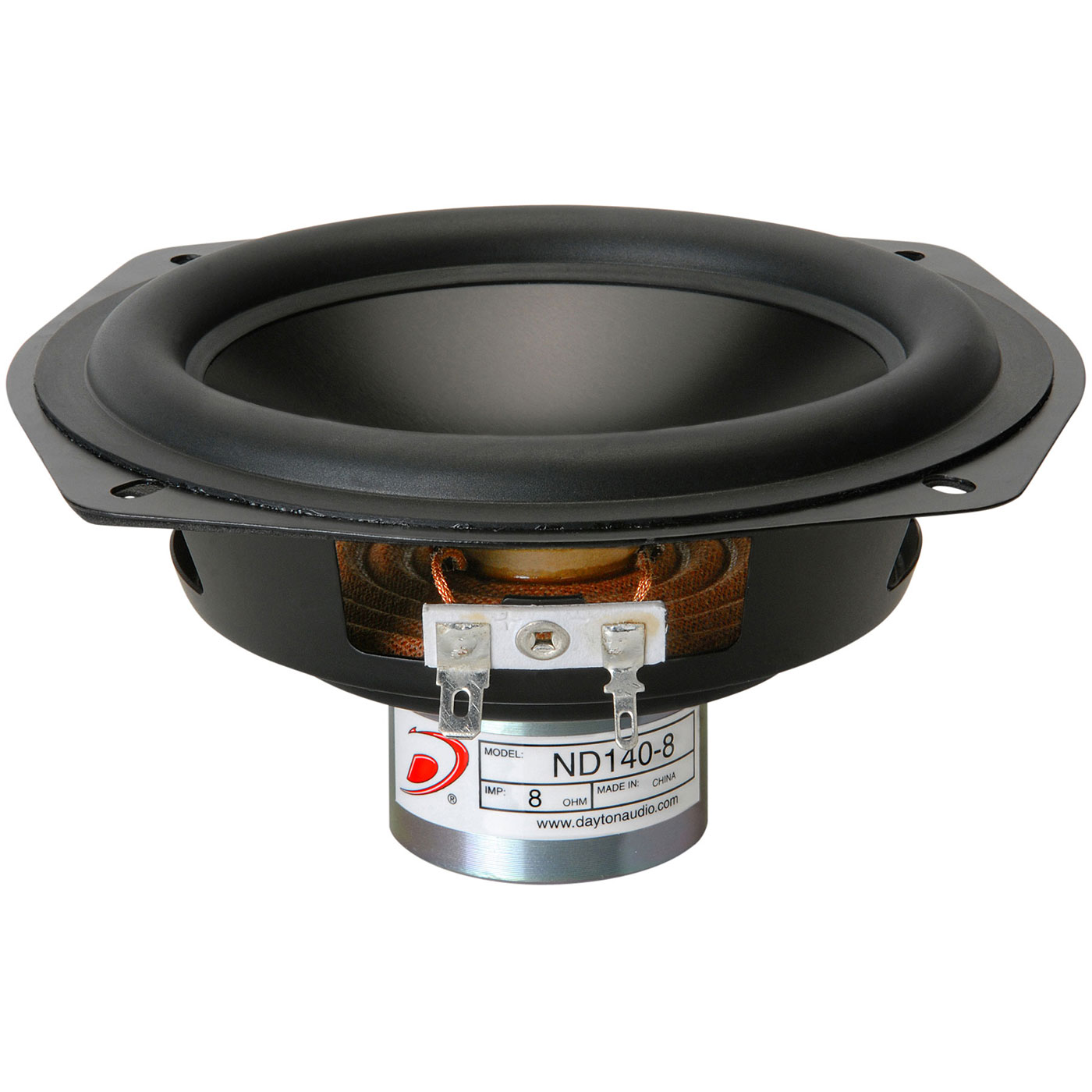

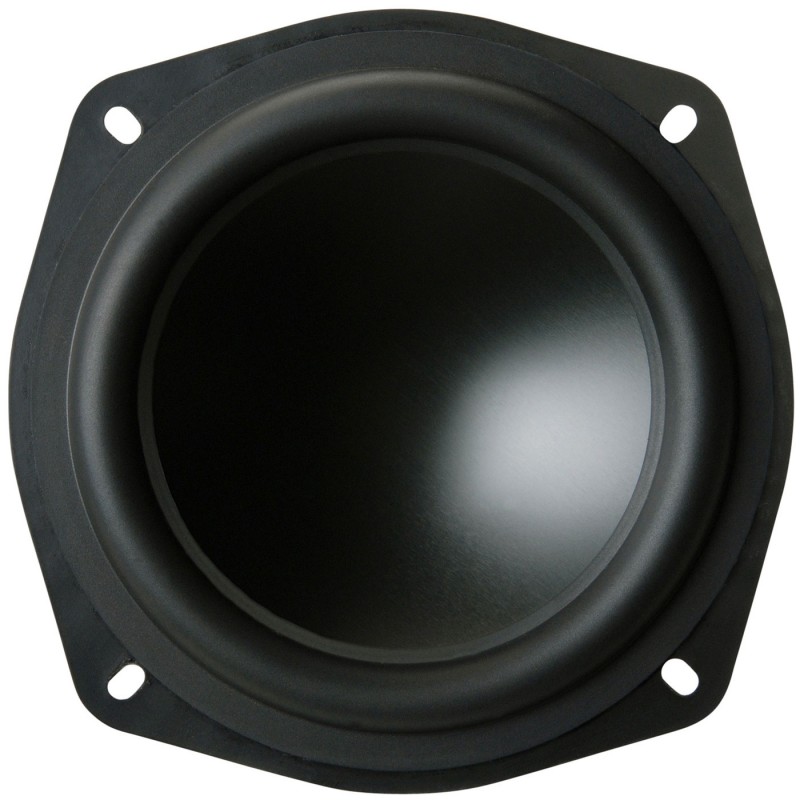

Product information "Dayton Audio ND140-8"
Dayton Audio's ND140-8's compact aluminum cone demonstrates the latest advances in high-excursion design processes. Its compact size and high output make it perfect for your next point-source or line array speaker project.
An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.
• Extended-range 54 Hz to 8 kHz performance
• Rubber-edged aluminum alloy cone
• Large excursion capability4 mm Xmax, 20 mm peak
• Self-shielded Neo-Balanced motor structure
• 1" 4-layer underhung voice coil with polyimide former
• 40 watts RMS power handling

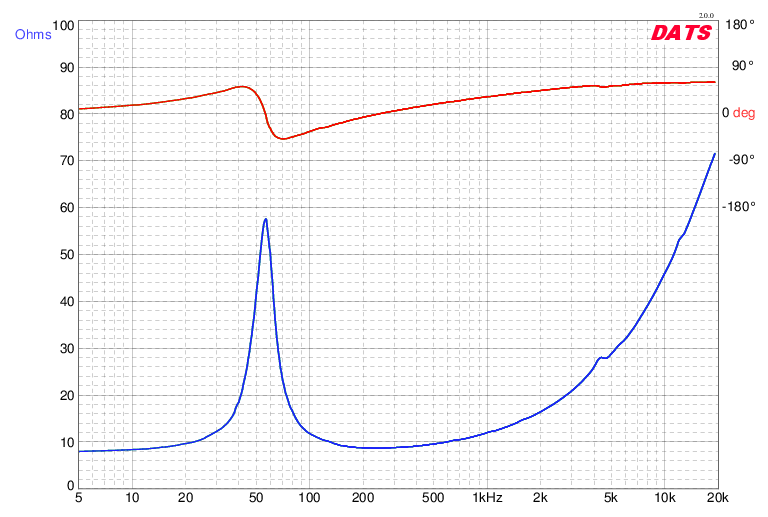

Impedance 8 ohms
Re 7.8 ohms
Le 1.44 mH @ 1 kHz
Fs 56.5 Hz
Cms 0.76 mm/N
Sd 86.6 cm²
Vd 34.6 cm³
BL 6.05 Tm
Vas 7.74 liters
Xmax 4.0 mm
VC Diameter 25 mm
SPL 84.5 dB @ 2.83V/1m
RMS Power Handling 40 watts

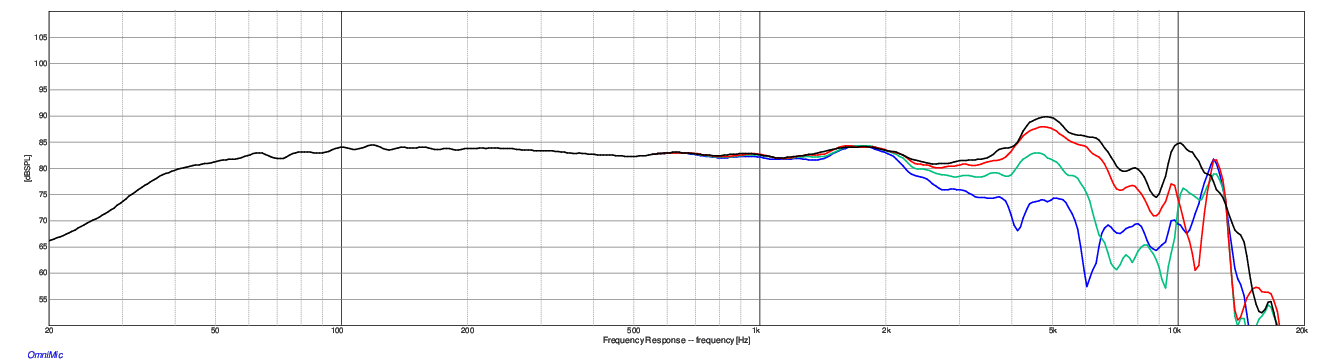

Usable Frequency Range (Hz) 54 - 8,000 Hz
