Visaton W 200 4Ohm

€25.95 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 9064
Visaton W 200 4Ohm   20 cm (8") woofer with very good price/performance ratio.... more
Product information "Visaton W 200 4Ohm"

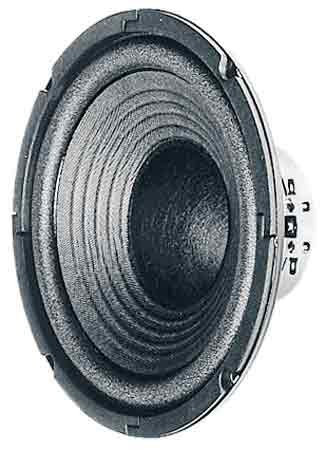

Visaton W 200 4Ohm



20 cm (8") woofer with very good price/performance ratio. Suitable for simple 2-way speakers and car rear tray systems. Especially suited as replacement driver for many HiFi speakers.



Specifications

  • power handling (continuous/programme) = 50/80 W

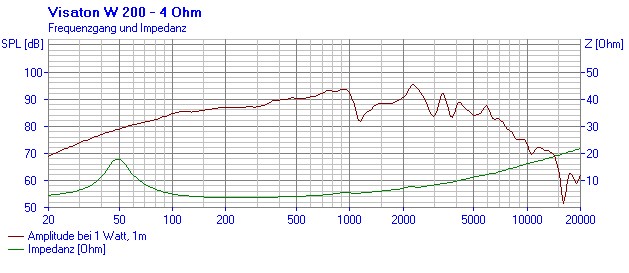

  • frequency range = -8000 Hz
  • resonance frequency fs = 49 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,0 N/A
  • voice coil inductance L = 0,5 mH
  • effective piston radiating area Sd = 207 cm2
  • effective mechanical mass incl. air load mms = 14 g
  • equivalent volume of compliance Vas = 45 l
  • total Q factor Qts = 0,51 (Qms=2,81, Qes=0,62)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm

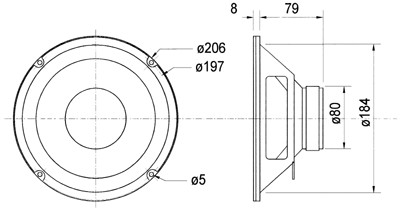

  • mounting diameter d = 185 mm
  • overall diameter d = 206 mm
  • mounting depth (not countersunk) t = 87 mm
  • mass m = 1,045 kg
