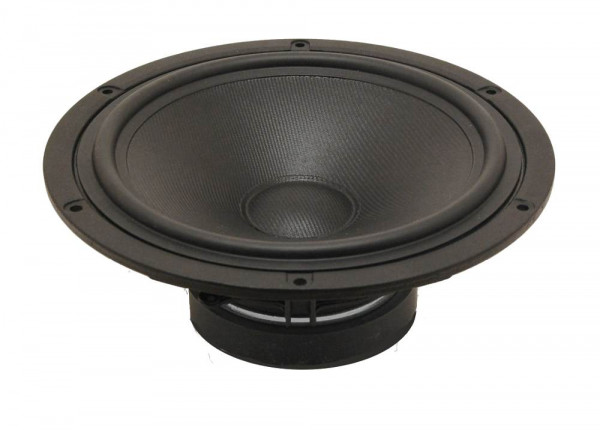

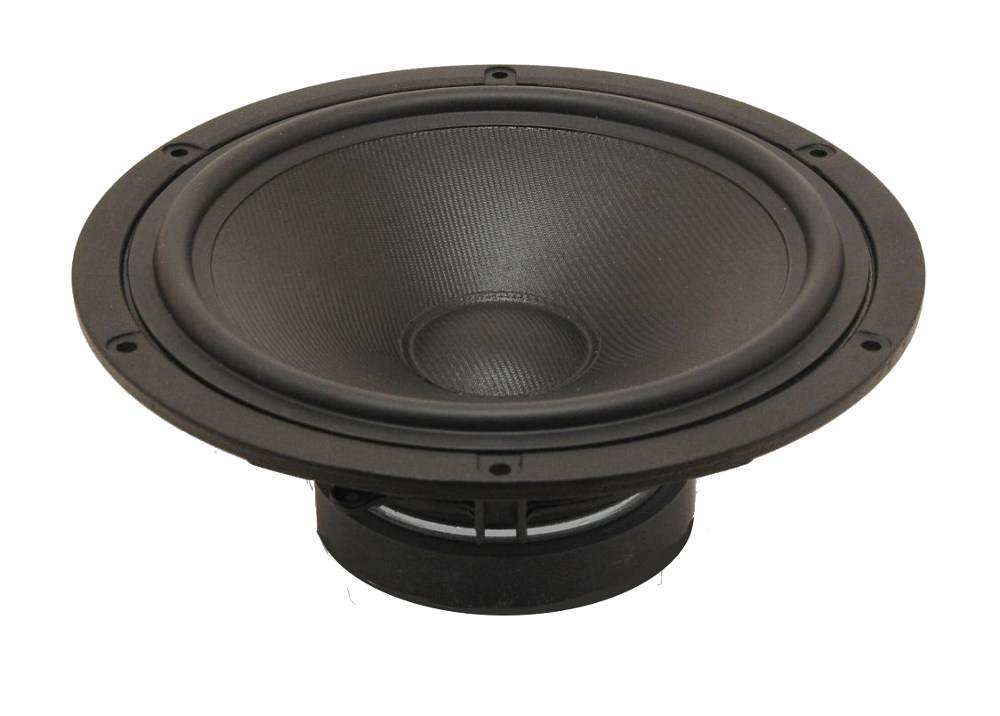

Scan-Speak 22W/8534G00

€80.52 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7298534
The Scan-Speak 22W/8534G00, 8" Discovery series is designed for the discerning audiophile... more
Product information "Scan-Speak 22W/8534G00"
The Scan-Speak 22W/8534G00, 8" Discovery series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.


  • NRSC* Fibre Glass Cone
  • Fibre Glass dust cap
  • High sensitivity 92dB
  • Long Linear excursion
  • 25Hz Resonance Frequency
  • Diecast Aluminium basket
  • Vents below spider
  • Low damping rubber surround
*Scan-Speak Patented Technology


Specifications

  • power handling (continuous/programme) = 70/120 W

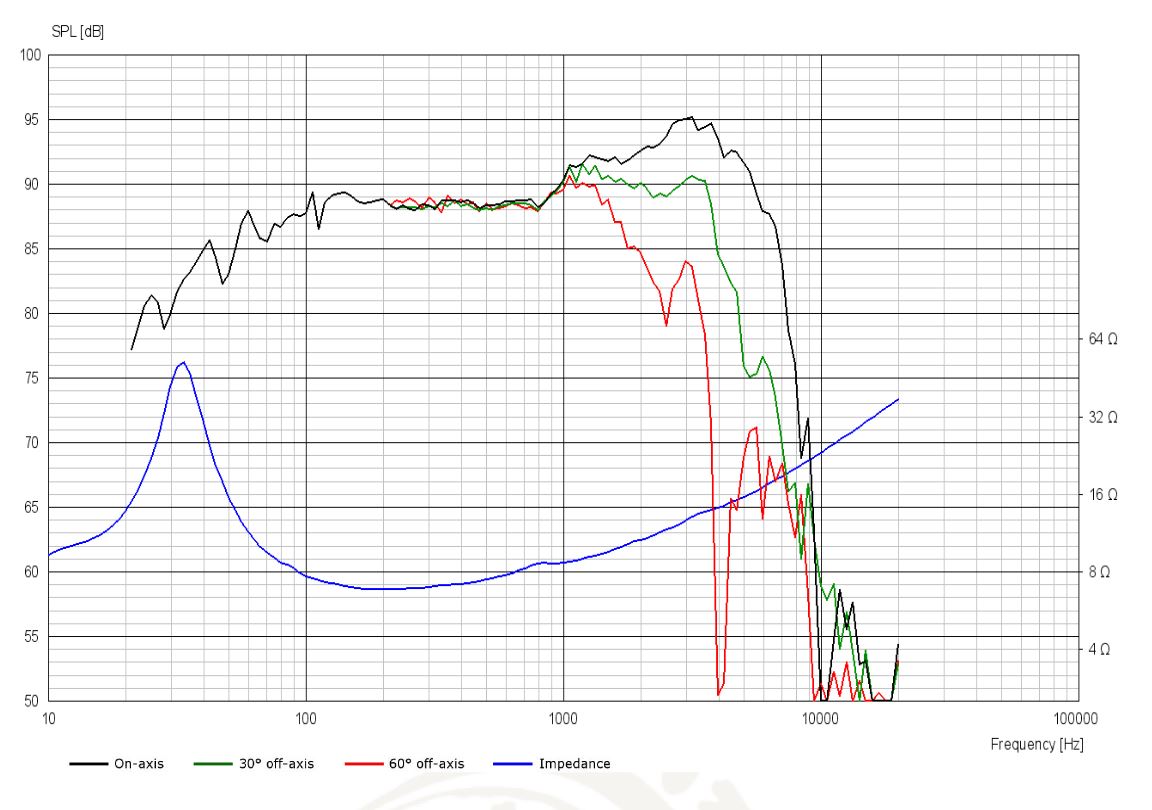

  • frequency range = 30-2000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,8 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 7,8 N/A
  • voice coil inductance L = 0,56 mH
  • effective piston radiating area Sd = 235 cm2
  • effective mechanical mass incl. air load mms = 23,1 g
  • equivalent volume of compliance Vas = 94,2 l
  • total Q factor Qts = 0,39 (Qms=4,14, Qes=0,43)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5,8 mm

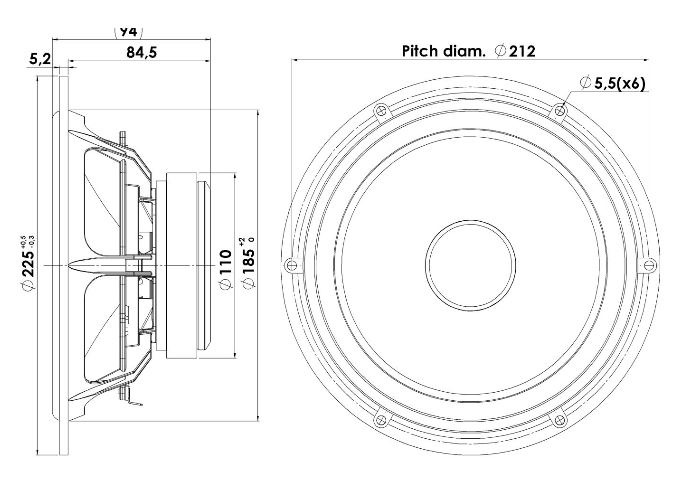

  • mounting diameter d = 185 mm
  • overall diameter d = 225 mm
  • mounting depth (not countersunk) t = 94 mm
