Wavecor FR070WA04, 8 Ohm Fullrange



The 2¾” transducers FR070WA03 (4 ohm) and FR070WA04 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where sound reproduction without compromises is required.



FEATURES

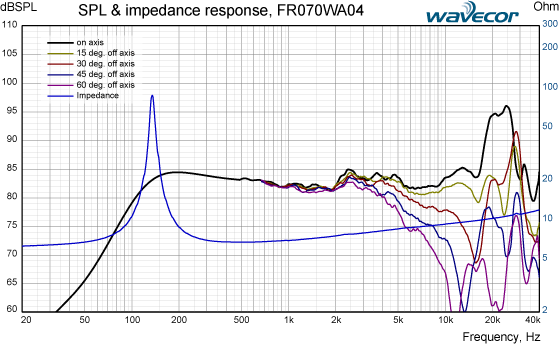

  • True full-range design with on-axis output to beyond 25kHz
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Black anodized alu cone for better heat transfer
  • Optimized off-axis response
  • Vented polymer chassis for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
  • Large motor with 22 mm voice coil diameter for better control and power handling
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Black motor parts for better heat transfer to the surrounding air
  • Conex spider for better durability under extreme conditions
  • Gold plated terminals to ensure long-term trouble free connection



SPECIFICATIONS

  • power handling (continuous/programme) = 10 W
  • frequency range = 200-28000 Hz
  • resonance frequency fs = 117 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 83 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 2,9 N/A
  • voice coil inductance L = 0,11 mH
  • effective piston radiating area Sd = 21 cm2
  • effective mechanical mass incl. air load mms = 1,9 g
  • equivalent volume of compliance Vas = 0,61 l
  • total Q factor Qts = 0,99 (Qms=12,7, Qes=1,07)
  • voice coil diameter = 22 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm
  • mounting diameter d = 62,5 mm
  • overall diameter d = 69,9x69,9 mm
  • mounting depth (not countersunk) t = 37,5 mm
  • mass m = 0,29 kg
