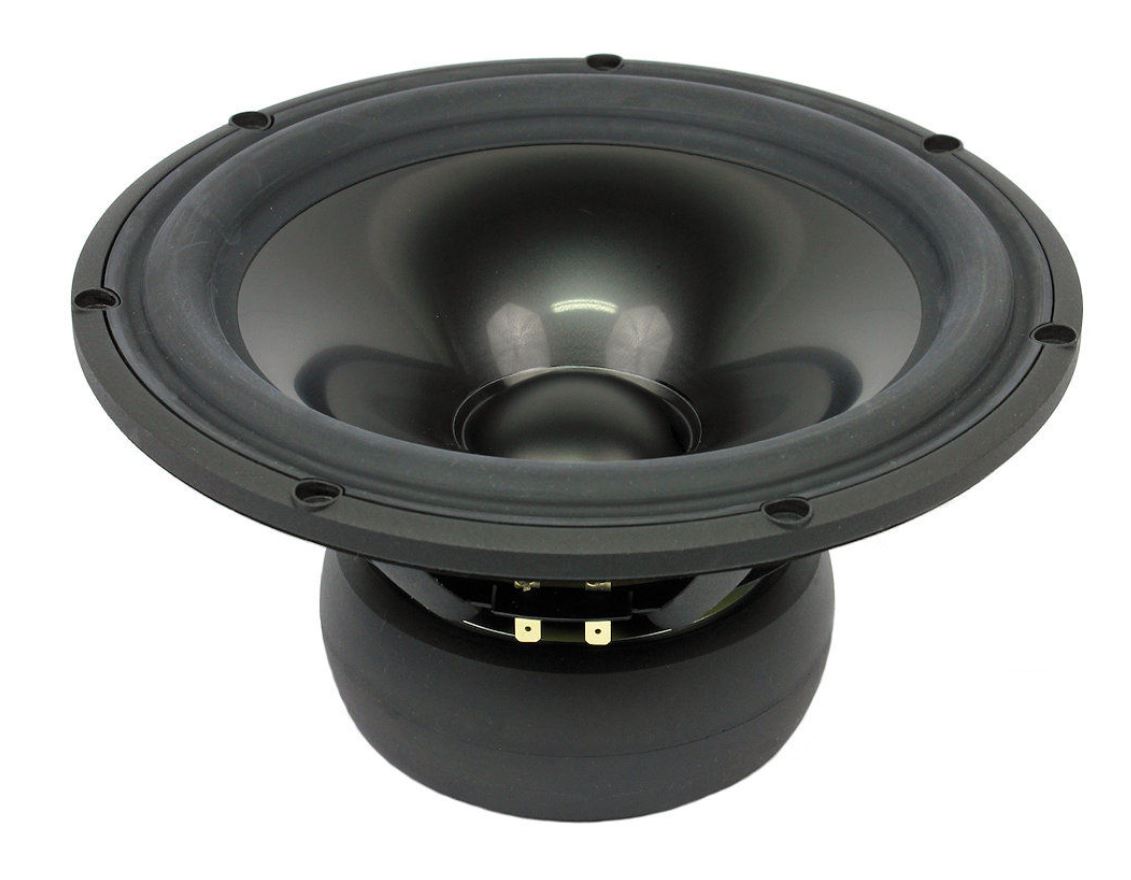

Scan-Speak 26W/4867T00

The 26W/4867T a new black Aluminum cone woofer. Aluminum is a good material for subwoofer cones, very stiff and light. These cones reduce distortion and also help cool the voice coil, by conducting heat away from the coil. This woofer has a low loss suspension for increased bass response and the SD-1 motor system for less intermodulation distortion. Very rigid cast frame, large windows.

Specifications

• power handling (continuous/programme) = 170 W

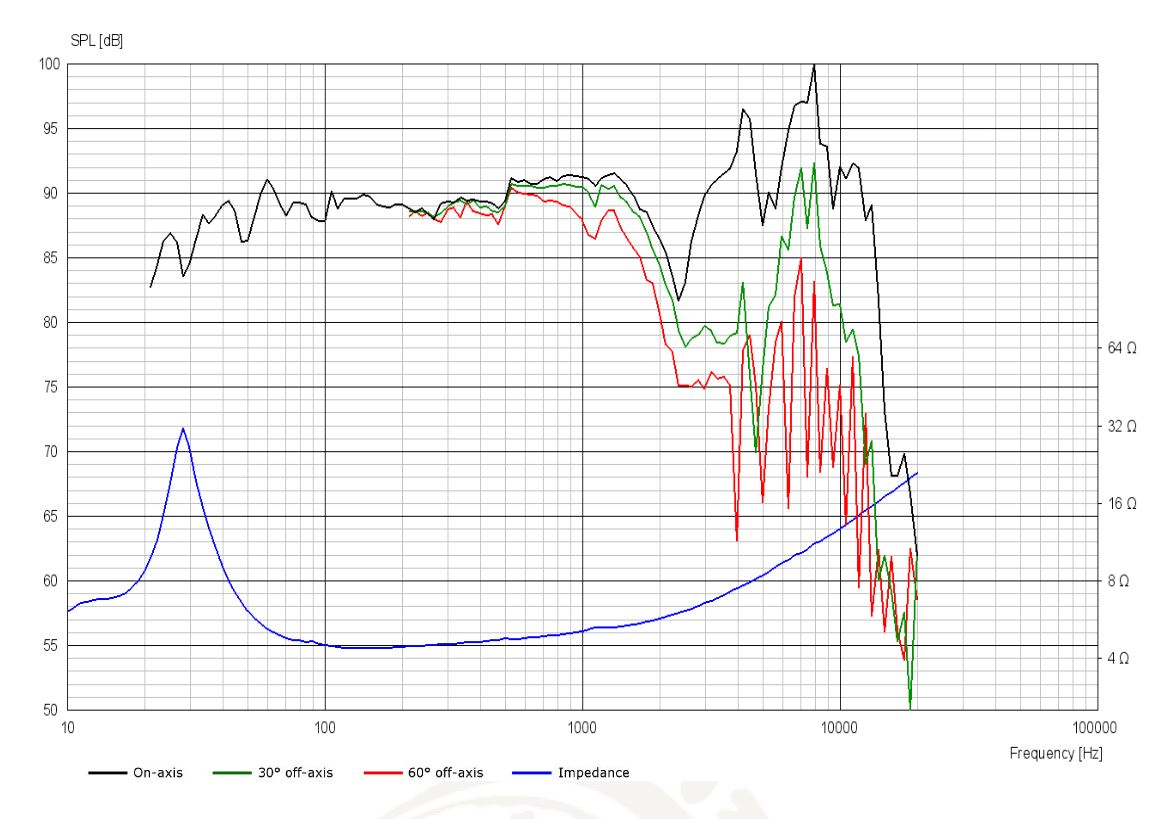

• frequency range = 18-1000 Hz
• resonance frequency fs = 18 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 89 dB (2,83V; 1m)
• DC resistance Re = 3,7 Ohm
• force factor BL = 8,3 N/A
• voice coil inductance L = 0,25 mH
• effective piston radiating area Sd = 320 cm²
• effective mechanical mass incl. air load mms = 51 g
• equivalent volume of compliance Vas = 220 l
• total Q factor Qts = 0,29 (Qms=5,8, Qes=0,31)
• voice coil diameter = 50 mm
• maximum peak linear excursion vibration x_lin = +/- 9 mm

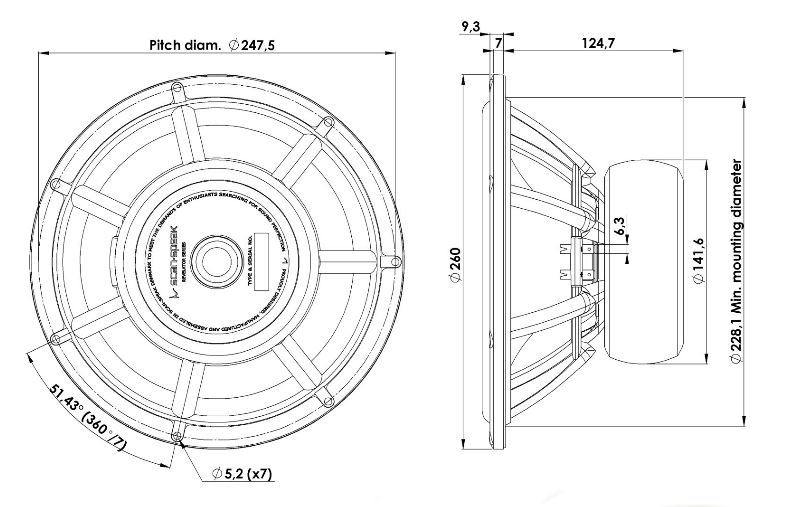

• mounting diameter d = 228 mm
• overall diameter d = 260 mm
• mounting depth (not countersunk) t = 131,7 mm
