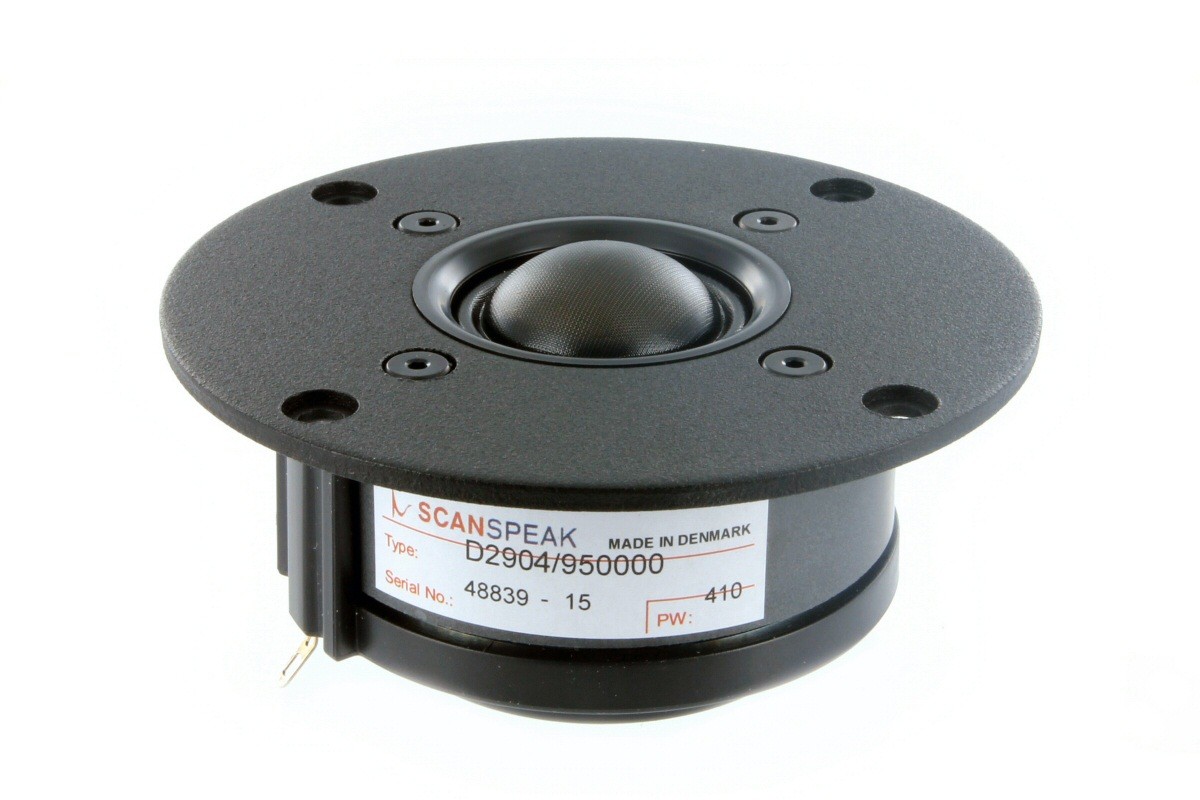

Scan-Speak D2904/9500.00

€128.54 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7309501
The Classic tweeters are among the many highly praised designs in Classic series. They have... more
Product information "Scan-Speak D2904/9500.00"

The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick-started a new era with a line of very high quality 1" tweeters, today known as -9300, -9500, -9700 and -9800. Despite their many years on the market still used in many top High-End speakers around the world.



Specifications

  • power handling (continuous/programme) = 150/430 W
  • frequency range = 1000-22000 Hz
  • resonance frequency fs = 550 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 4,3 Ohm
  • force factor BL = 3,2 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 9,5 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 0,39 (Qms=1,47, Qes=0,53)
  • voice coil diameter = 28 mm
  • maximum peak linear excursion vibration xlin = +/- 0,1 mm

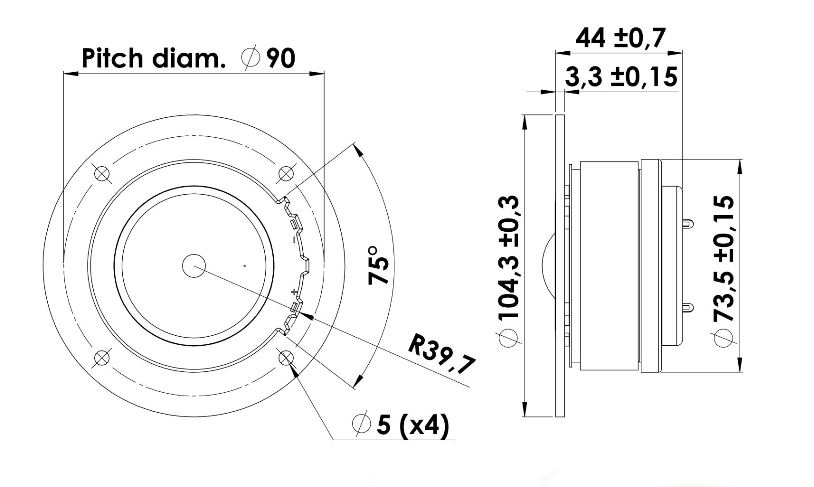

  • mounting diameter d = 73,5 mm
  • overall diameter d = 104,3 mm
  • mounting depth (not countersunk) t = 40,7 mm
