Peerless DA25BG08-06

€36.86 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 810152
This DA25BG08-06 tweeter features an 6 ohm 25 mm voice coil, a treated Al dome, large rear... more
Product information "Peerless DA25BG08-06"

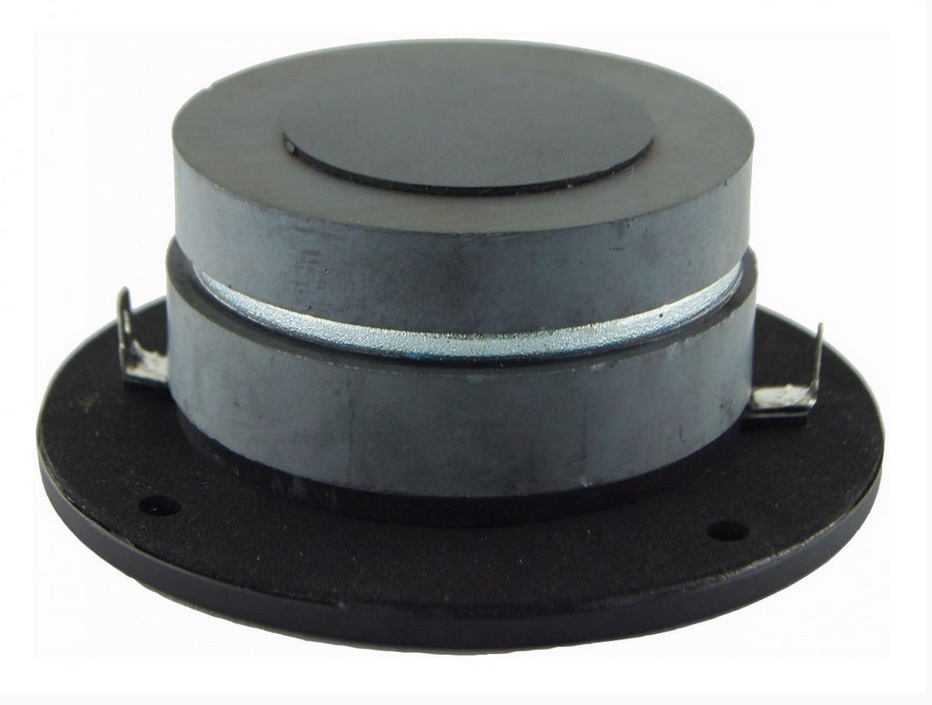

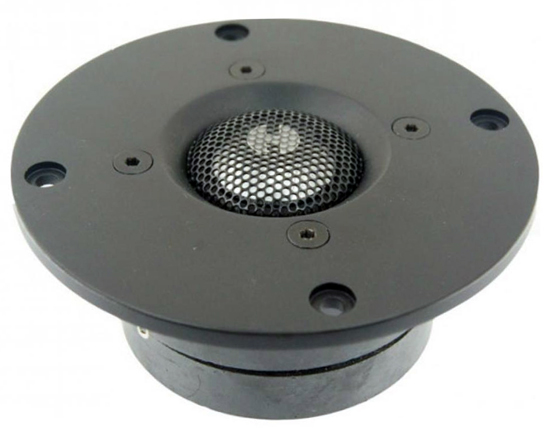

This DA25BG08-06 tweeter features an 6 ohm 25 mm voice coil, a treated Al dome, large rear chamber for low resonant frequency, and a ferrofluid-cooled ferrite motor. The large motor and rear chamber allow for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application.



Specifications

  • power handling (continuous/programme) = 100 W

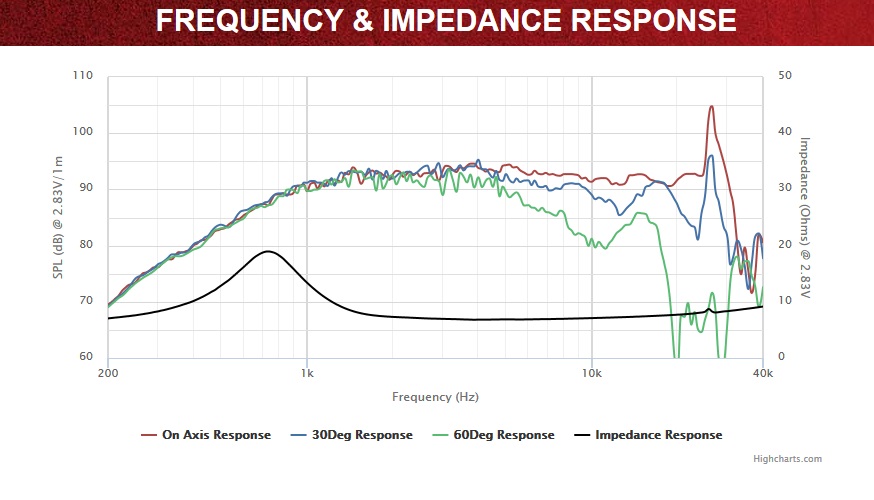

  • frequency range = 1500-30000 Hz
  • resonance frequency fs = 795 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,9 dB (2,83V; 1m)
  • DC resistance Re = 6,72 Ohm
  • force factor BL = 3,1 N/A
  • voice coil inductance L = 0,01 mH
  • effective piston radiating area Sd = 6,7 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,69 (Qms=1,89, Qes=1,09)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 0,7 mm

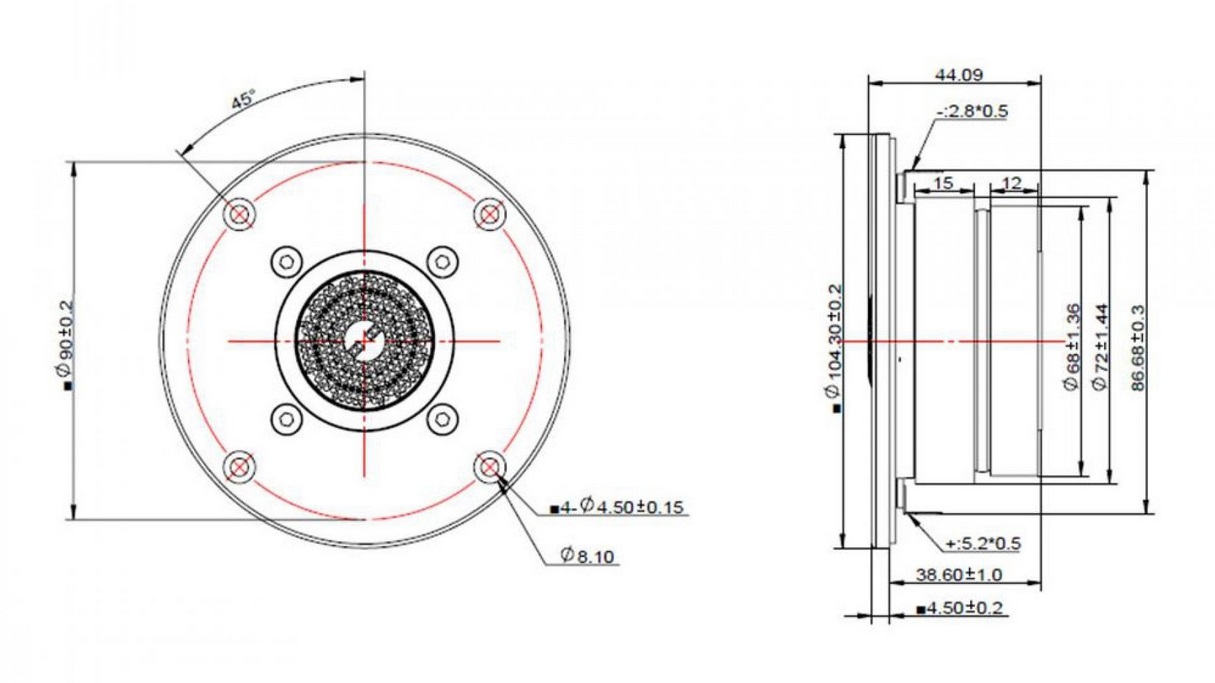

  • mounting diameter d = 72 mm
  • overall diameter d = 104,3 mm
  • mounting depth (not countersunk) t = 44 mm
