Wavecor WF120BD04 4¾" die cast, paper cone mid/woofer 8 Ohm The 4¾” transducer... more
Product information "Wavecor WF120BD04"
Wavecor WF120BD04 4¾" die cast, paper cone mid/woofer 8 Ohm
The 4¾” transducer WF120BD04 (8 ohm) is designed as high performance bass and midrange unit for very compact monitors and high-end hi-fi speakers.
Features
- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Black coated semi-air-dried paper cone
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Vented center pole with dual flares for reduced noise level at large cone excursions
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 1¼” voice coil diameter for better control and power handling
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection

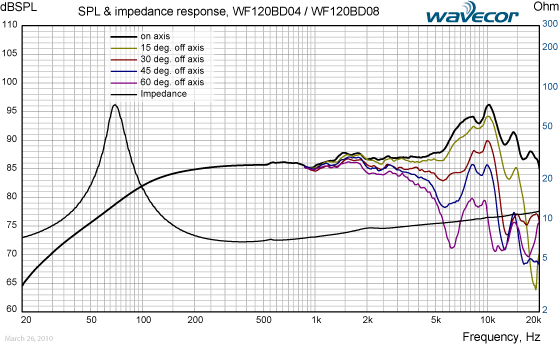

Specifications
- power handling (continuous/programme) = 50 W
- frequency range = 60-4000 Hz
- resonance frequency fs = 71,5 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 86 dB (2,83V; 1m)
- DC resistance Re = 6 Ohm
- force factor BL = 5,5 N/A
- voice coil inductance L = 0,14 mH
- effective piston radiating area Sd = 54 cm2
- effective mechanical mass incl. air load mms = 6,25 g
- equivalent volume of compliance Vas = 4,25 l
- total Q factor Qts = 0,45 (Qms=5,9, Qes=0,49)
- voice coil diameter = 26 mm
- maximum peak linear excursion vibration xlin = +/- 4 mm
- mounting diameter d = 100 mm
- overall diameter d = 120 mm
- mounting depth (not countersunk) t = 72 mm
