Mundorf AMT19CM2.1-C

Mundorf
Preview: Mundorf AMT19CM2.1-C Preview: Mundorf AMT19CM2.1-C Preview: Mundorf AMT19CM2.1-C Preview: Mundorf AMT19CM2.1-C Preview: Mundorf AMT19CM2.1-C Preview: Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C
Mundorf AMT19CM2.1-C

€349.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: mu-amt19cm2.1-c
Description Evaluations 0
Description
Mundorf AMT19CM2.1-C Airmotion Tweeter   High End AMT for 3-way systems. The 2.1 type... more
Close menu
Product information "Mundorf AMT19CM2.1-C"

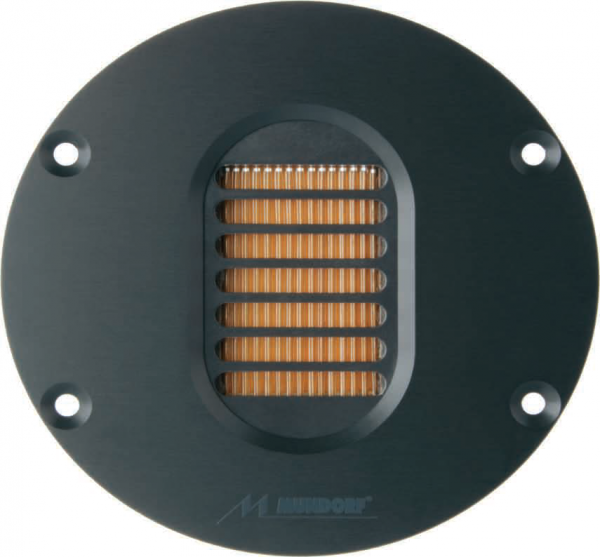

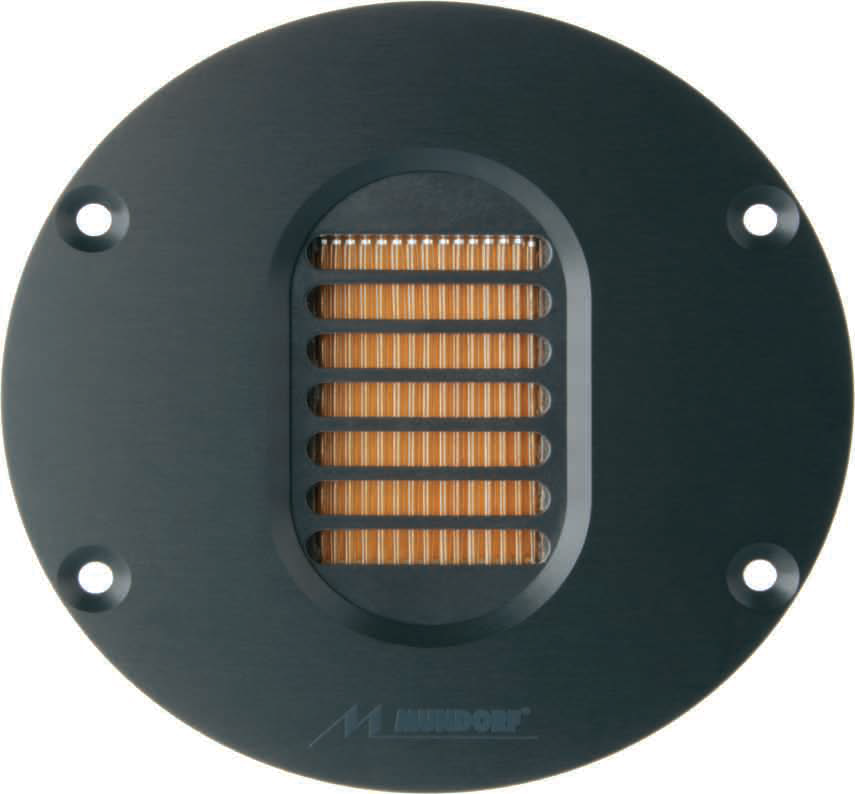

Mundorf AMT19CM2.1-C Airmotion Tweeter



High End AMT for 3-way systems. The 2.1 type is a 4 ohm version and optimized for use with a 6dB crossover.

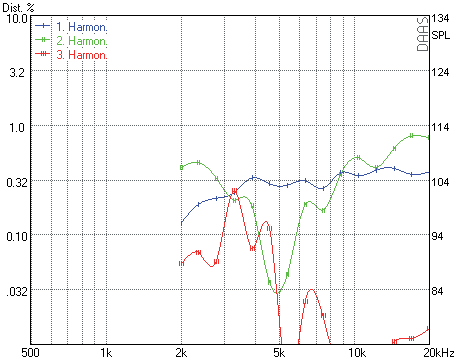

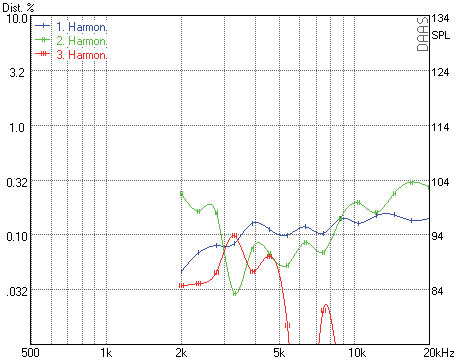

  • Very low distortion

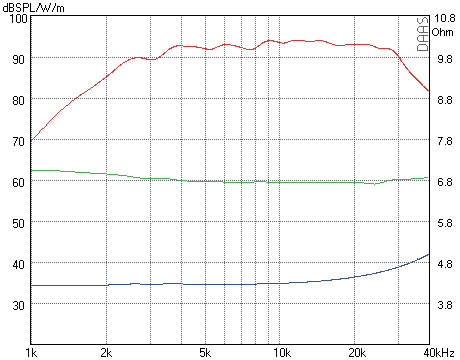

  • Very flat impedance curve
  • Wide spread directivity
  • 6dB x-over



Specifications

  • power handling (continuous/programme) = 120 W
  • frequency range = 1600-38000 Hz
  • resonance frequency fs = 2600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 93 dB (2,83V; 1m)
  • DC resistance Re = 4,2 Ohm
  • effective piston radiating area Sd = 126 cm2

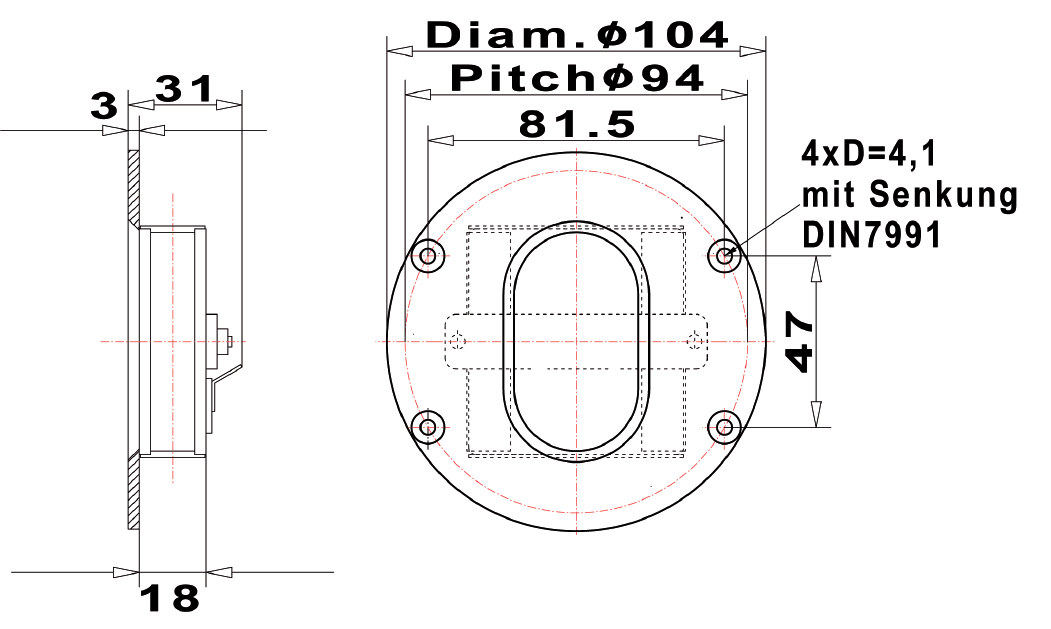

  • overall diameter d = 104 mm
