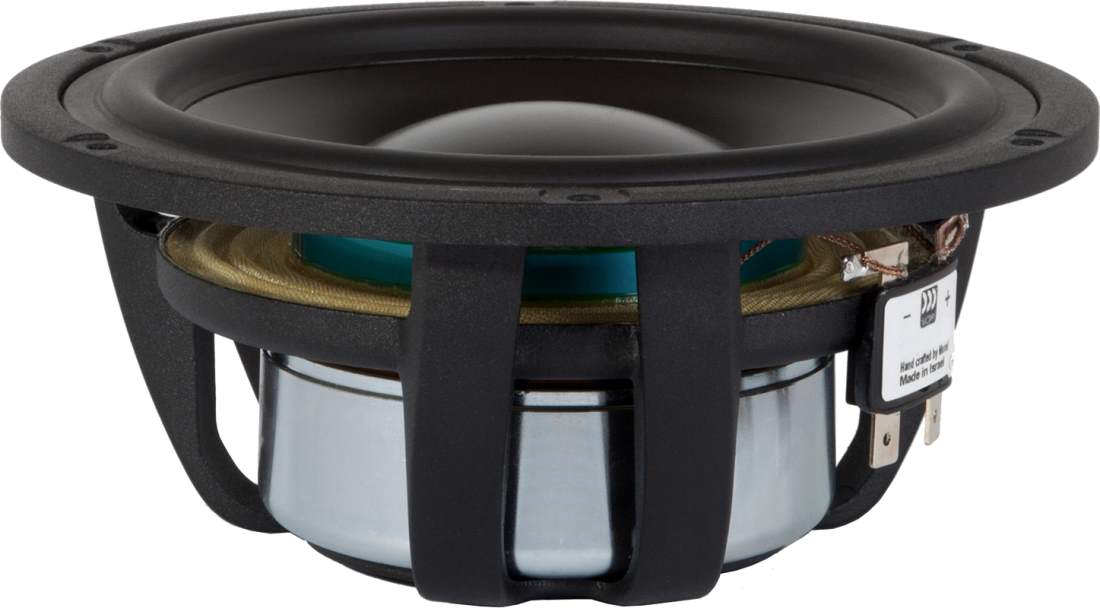

Morel CAW 638

€179.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 753078
The CAW 638 woofer is based on Morel’s classic line - the renowned MW series. These products... more
Product information "Morel CAW 638"

The CAW 638 woofer is based on Morel’s classic line - the renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spiders. This woofer has reinforced Ferrite magnets for the double magnet system delivering higher magnetic flux motor, resulting in a low resonance frequency and Qts points. Latest evolution of Morel's MW-164, MW-166, and MW-168 woofers.



  • Uniflow™ aluminum diecast chassis
  • Large 3" Hexatech™ aluminum voice coil
  • High flux ferrite double magnet system
  • Shallow profile DPC cone
  • High power handling



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 30-5000 Hz
  • resonance frequency fs = 43 Hz

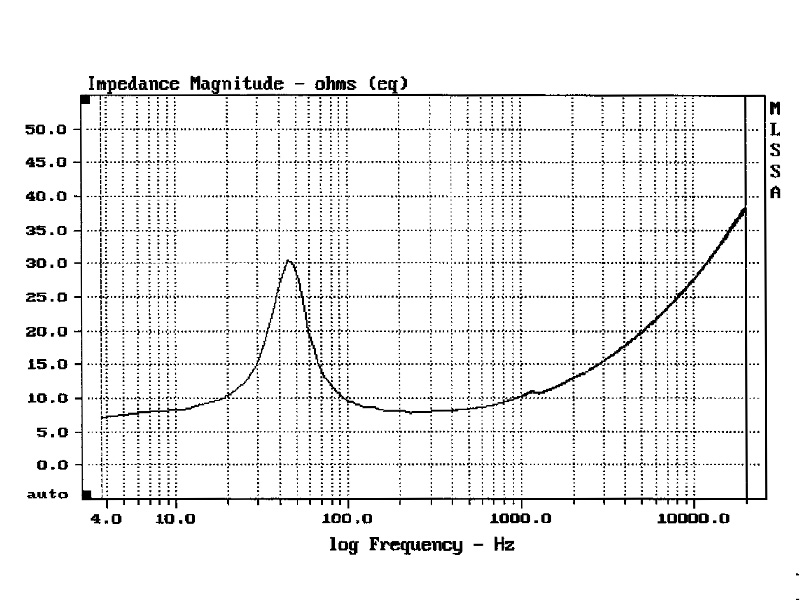

  • impedance R = 8 Ohm

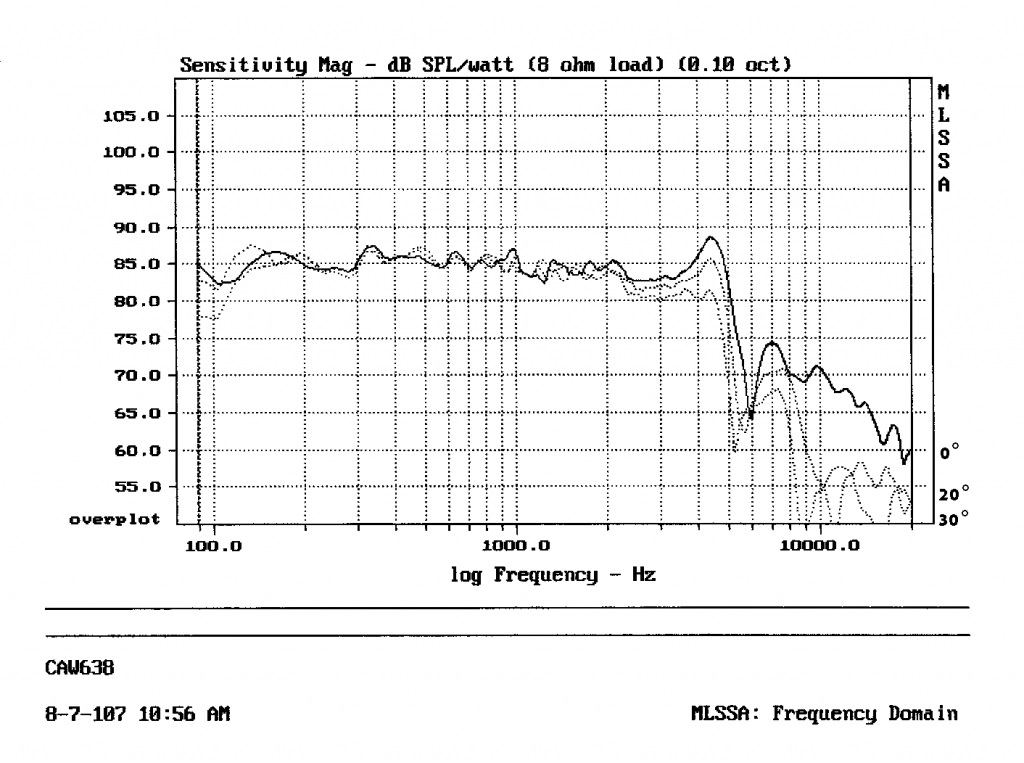

  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 7,3 N/A
  • voice coil inductance L = 0,63 mH
  • effective piston radiating area Sd = 119 cm2
  • effective mechanical mass incl. air load mms = 16 g
  • equivalent volume of compliance Vas = 15,7 l
  • total Q factor Qts = 0,46 (Qms=2,2, Qes=0,58)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 4,25 mm

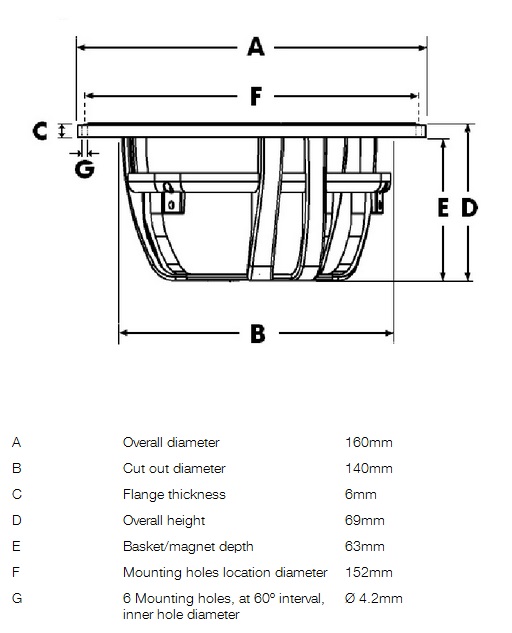

  • mounting diameter d = 140 mm
  • overall diameter d = 160 mm
  • mounting depth (not countersunk) t = 63 mm
